Rice Lake Weighing RoughDeck Rough-n-Ready Floor Scale System with 680 Synergy, 5000 lb, 115 VAC, NTEP approved

Item #196661

Be the first to review this product

16%off

Availability: In stock

List Price: $3,095.00

Now: $2,600.00

You Save $495.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Floor - $395.00
Accessories
  • Floor anchor plates, mild steel, set of two (RLW-PN 18777) (PN 18777) SKU: 18777 $38.00

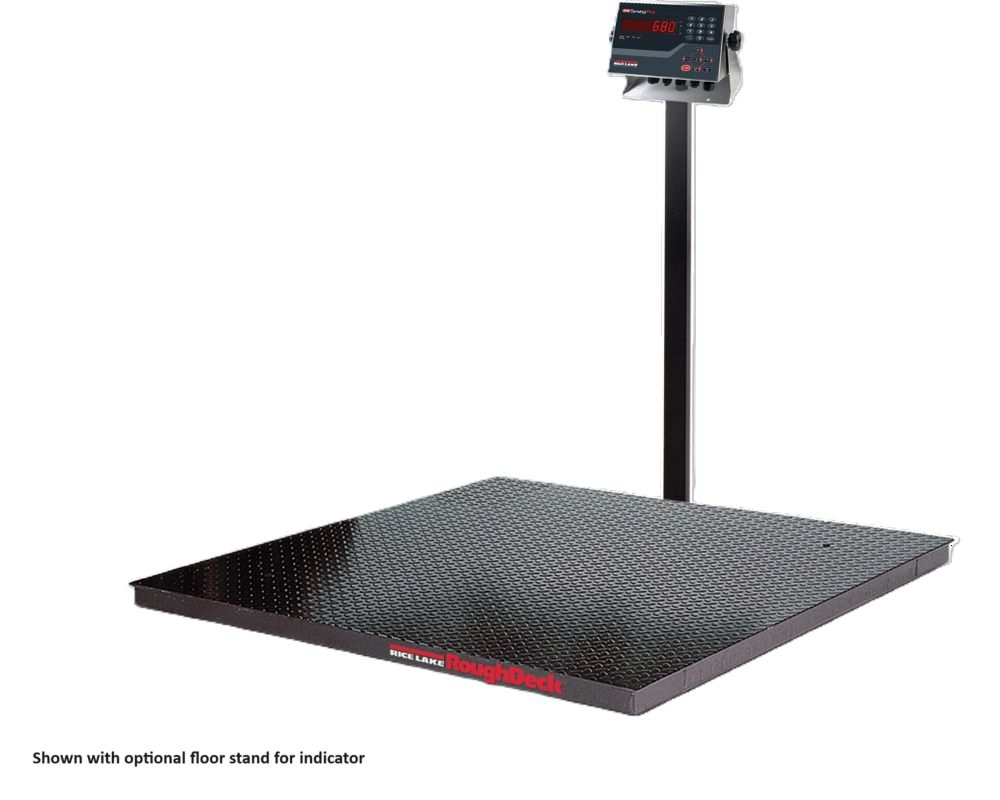

  • RoughDeck floor stand for indicator, 36.3" high, mild steel (RLW-PN 19352) (PN 19352) SKU: 19352 $250.00
  • RoughDeck floor stand for indicator, 48" high, mild steel (RLW-PN 126384) (PN 126384) SKU: 126384 $275.00
Overview

  • NTEP certified

  • Factory calibrated for 5,000 divisions

  • Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and indicator

  • 680 Synergy Series indicator


    • LED display

    • Two RS-232 ports, RS-485/RS-422, Micro USB, Ethernet TCP/IP

    • 115 VAC

    • Numeric keypad

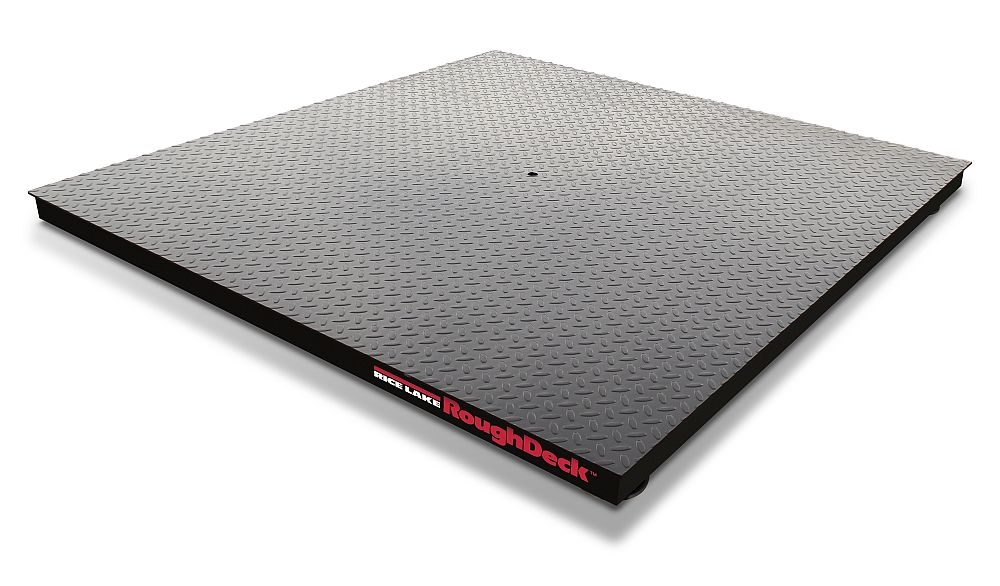

  • RoughDeck HP


    • Heavy-duty design

    • Four NTEP certified alloy steel shear beam load cells

    • Side-access JB4SS TuffSeal junction box


Rice Lake Weighing RoughDeck Rough-n-Ready Floor Scale System with 680 Synergy, 5000 lb, 115 VAC, NTEP approved

Details

The RoughDeck® Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of Rice Lake Weighing's 4 x 4-foot RoughDeck floor scale with one of several quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

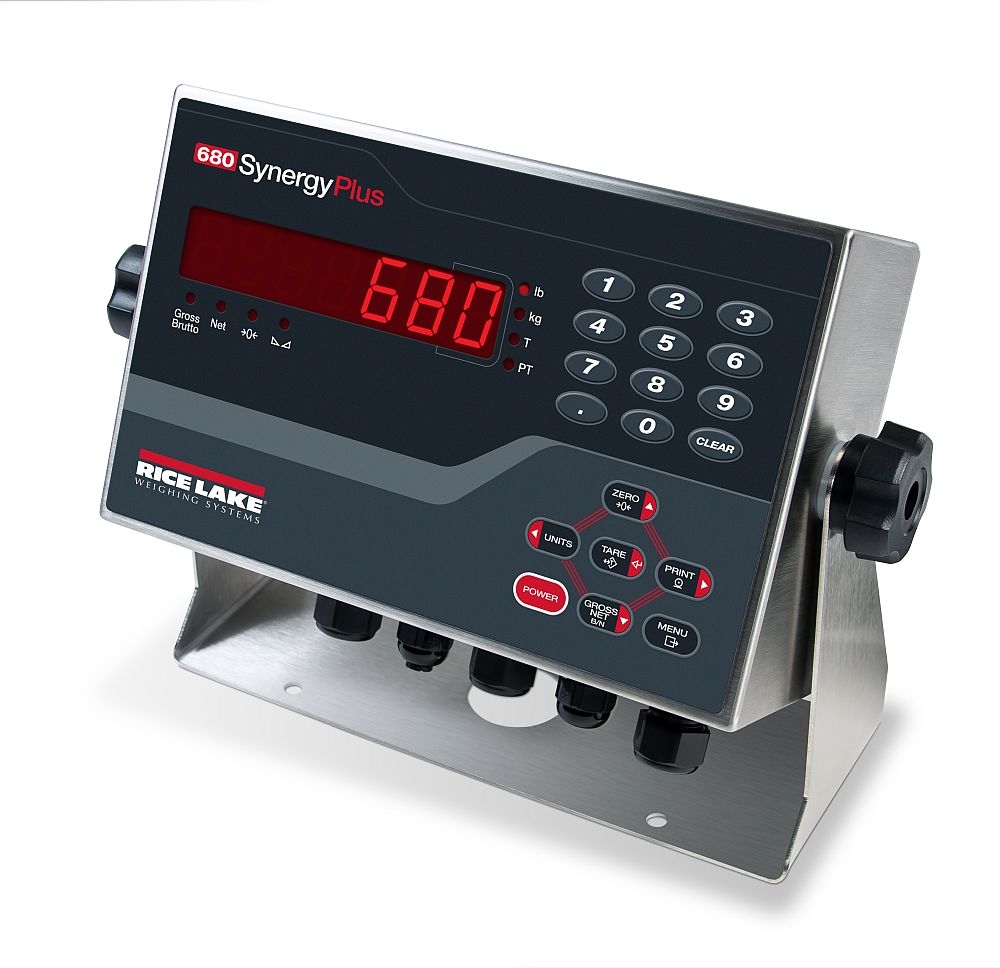

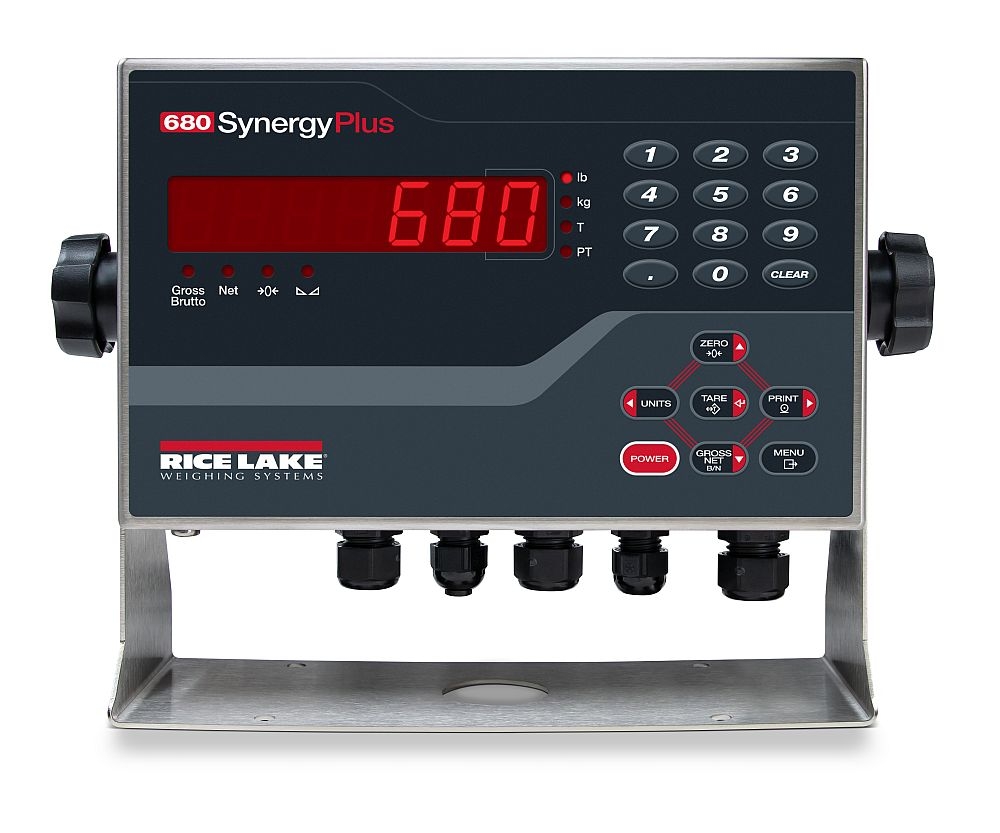

680 Synergy Series Specifications
Display Seven 0.8" (20 mm) tall, 7-segment digits, LED display
Status Annunciators Eight LED annunciators: Gross, net, center of zero, stand still, lb, kg, tare, preset tare
Keyboard Flat membrane panel, embossed keys, tactile feel; 18 buttons plus ON/OFF
Power

Line voltages: 100-240 VAC

Frequency: 50-60 Hz
Communication Ports

Two full-duplex RS-232

RS-485/RS-422 (two-wire or four-wire)

Micro USB (device)

Ethernet TCP/IP (10/100)
Rating/Material IP69K, AISI 304 stainless steel
Temperature Range

Certified: 14°F to 104°F (-10°C to 40°C)

Industrial: 14°F to 122°F (-10°C to 50°C)
Approvals NTEP CC 12-123, Class III/IIIL, 10,000d; CE marked, UL/cUL Listed

RoughDeck HP Specifications
Capacity 5,000 lb x 1 lb
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (1/2-20 NF) located in center of deck for easy lifting
Platform Dimensions 4' x 4' x 3.5"
Approvals NTEP CC 92-001, Class III, 5,000 d
