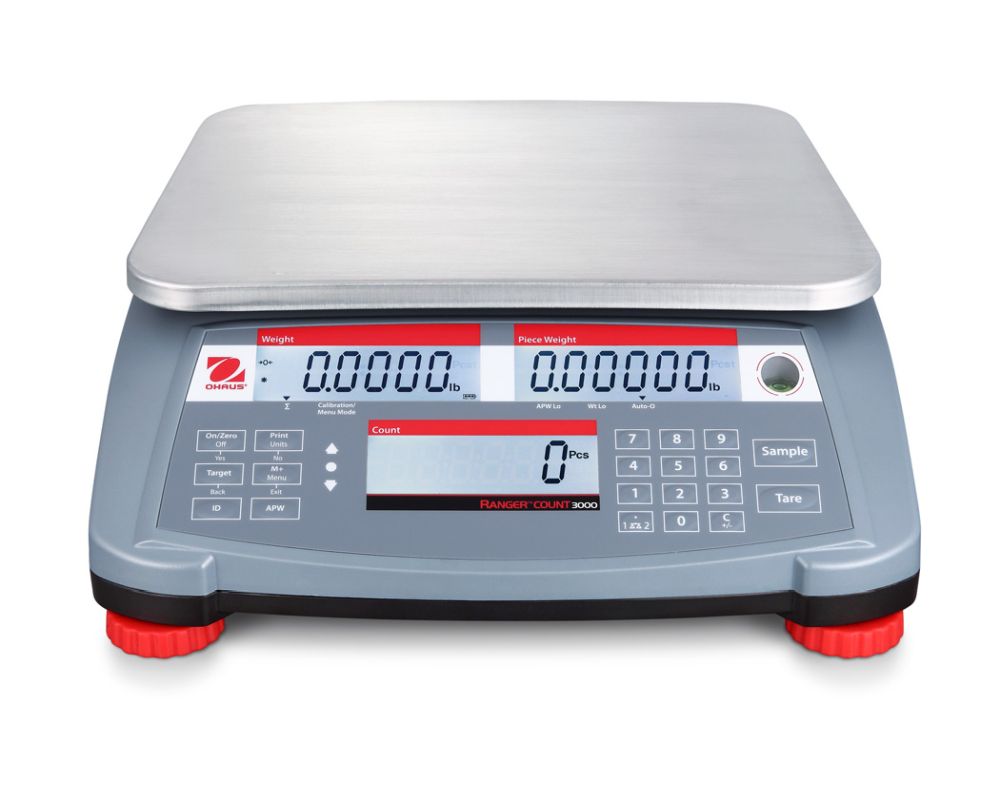

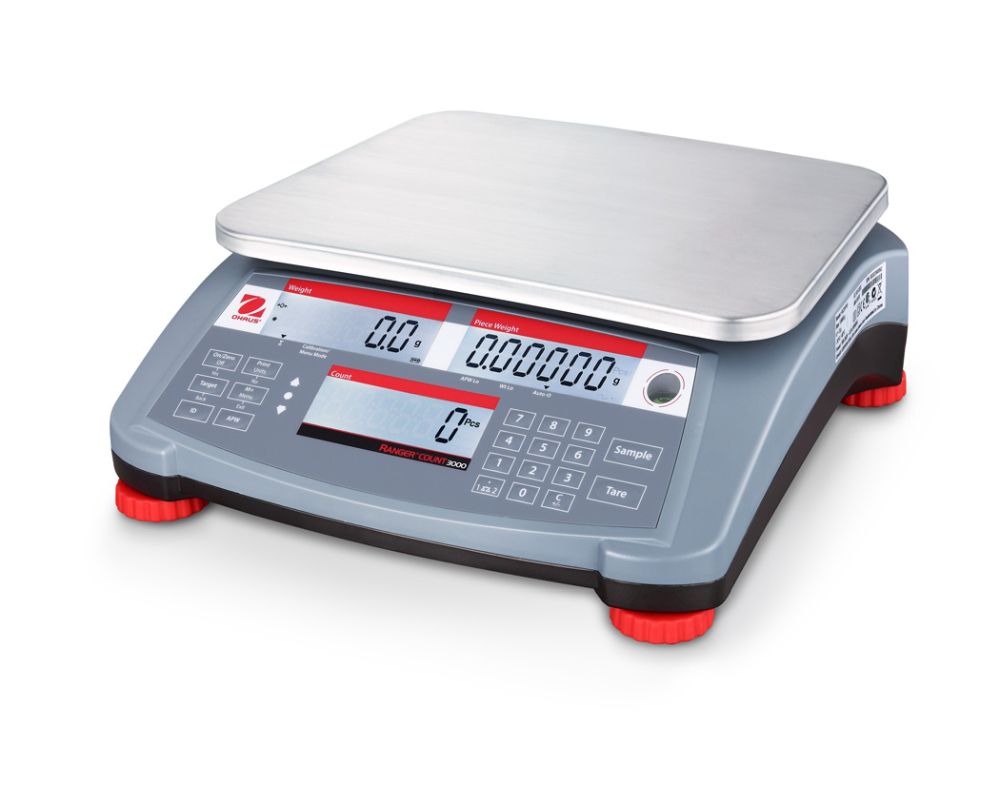

The multipurpose Ranger Count 3000 has all of the capabilities to produce precise results rapidly for a variety of applications. With weighing, parts counting, check counting, and accumulation functions, Ranger Count 3000 is the ideal scale to meet many industrial counting needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger Count 3000 to a class of its own.
Capacity x Readability |
6 kg x 0.0002 kg 15 lb x 0.0005 lb 6000 g x 0.2 g 240 oz x 0.01 oz |
---|---|
Certified Capacity x Readability |
6 kg x 0.002 kg 15 lb x 0.005 lb 6000 g x 2 g 240 oz x 0.1 oz |
Minimum Recommended Sample Weight | 4 g |
Minimum Recommended APW | 0.02 g |
Maximum Internal Counting Resolution | 1:1,500,000 Internal / 1:300,000 External |
Maximum Displayed Resolution | 1:30,000 |
Certified/Approved Resolution | 1:3000 |
Construction | ABS housing, stainless steel platform |
Weighing Units | kg, g, lb, oz, lb:oz |
Application Modes | Weighing, parts counting, checkweighing, checkcounting, accumulation |
Display | 3-Window, LCD display with white backlight, 0.8" (20.5 mm) high digits |
Checkweighing Indicators | 3 LED (yellow, green, red) with configurable operation and alert beeper |
Memory | 30 item library |
Keypad | 8 function, 12 numeric mechanical keys |
Zero Range | 2% or 10% of full scale capacity |
Tare Range | Full capacity by subtraction |
Stabilization Time | 1 second |
Auto-zero Tracking | Off, 0.5, 1 or 3 divisions |
Safe Overload Capacity | 150% of capacity |
Power | 100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery |
Battery Life | 210 hours continuous use with 12 hour recharge time |
Calibration | External, with user-selectable calibration weight |
Interface | Built-in RS232. Optional 2nd RS232, USB or Ethernet available separately |
Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
Platform Size (W x L) | 11.8" x 8.9" (300 mm x 225 mm) |
Scale Dimensions (W x L x H) | 12.2" x 12.9" x 4.6" (311 mm x 327 mm x 117 mm) |
Net Weight | 9.2 lb (4.2 kg) |

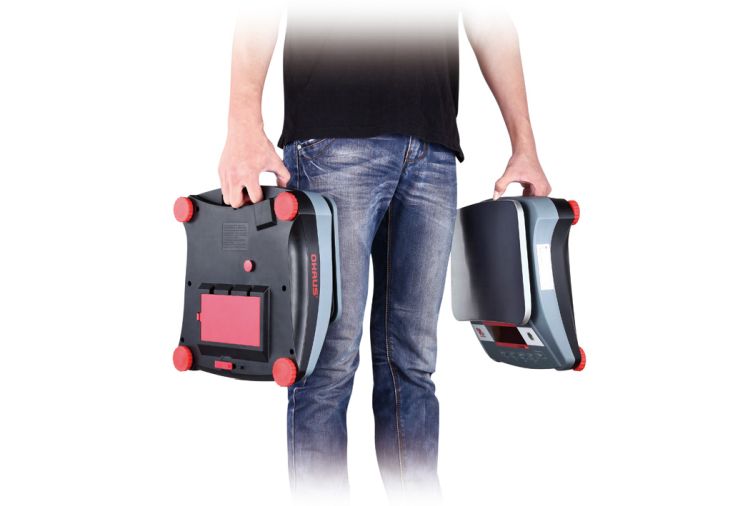

Other Standard Features | 30 item library (stores 12-digit part numbers, average piece weights, checkcounting or checkweighing parameters, tare weights and accumulated weights or counts), auto tare, APW Auto-Optimization and low APW alert, transportation handle, sealed front panel, menu lockswitch, up-front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off |
