The multipurpose Ranger 3000 has all of the capabilities to produce precise results rapidly for a variety of applications. With seven application modes, Ranger 3000 is the ideal scale to meet many industrial weighing needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger 3000 to a class of its own.
| Capacity x Readability |
6 kg x 0.0002 kg 15 lb x 0.0005 lb 6000 g x 0.2 g 240 oz x 0.01 oz |
|---|---|
| Certified Capacity x Readability |
6 kg x 0.002 kg 15 lb x 0.005 lb 6000 g x 2 g 240 oz x 0.1 oz |
| Maximum Displayed Resolution | 1:30,000 |
| Certified/Approved Resolution | 1:3000 |
| Construction | ABS housing, stainless steel platform |
| Weighing Units | kg, g, lb, oz, lb:oz |
| Application Modes | Weighing, percent weighing, parts counting, checkweighing, checkcounting, checkpercent, accumulation, dynamic weighing/display hold |
| Display | LCD display with white backlight, 1.1" (28 mm) high digits |
| Checkweighing Indicators | 3 LED (yellow, green, red) with configurable operation and alert beeper |
| Keypad | 5 mechanical keys |
| Zero Range | 2% or 10% of full scale capacity |
| Tare Range | Full capacity by subtraction |
| Stabilization Time | 1 second |
| Auto-zero Tracking | Off, 0.5, 1 or 3 divisions |
| Safe Overload Capacity | 150% of capacity |
| Power | 100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery |
| Battery Life | 210 hours continuous use with 12 hour recharge time |
| Calibration | External, with user-selectable calibration weight |
| Interface | Built-in RS232. Optional 2nd RS232, USB or Ethernet available separately |
| Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
| Platform Size (W x L) | 11.8" x 8.9" (300 mm x 225 mm) |
| Scale Dimensions (W x L x H) | 12.2" x 12.9" x 4.6" (311 mm x 327 mm x 117 mm) |
| Net Weight | 9.2 lb (4.2 kg) |

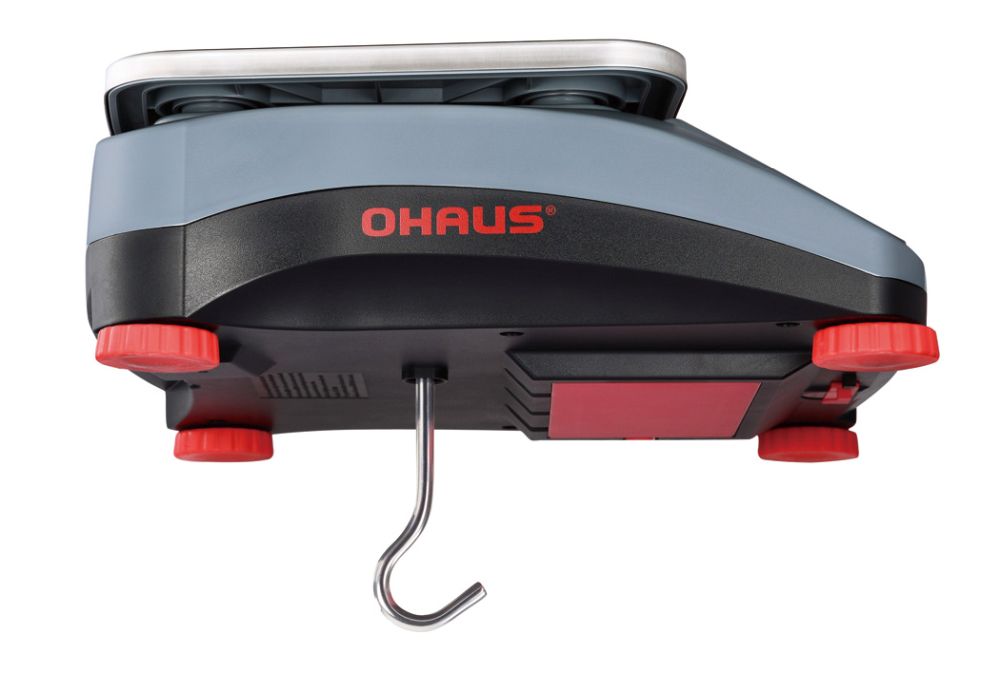

| Other Standard Features | Weigh-below hook, integral transportation handle, sealed front panel, menu lockswitch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare |
