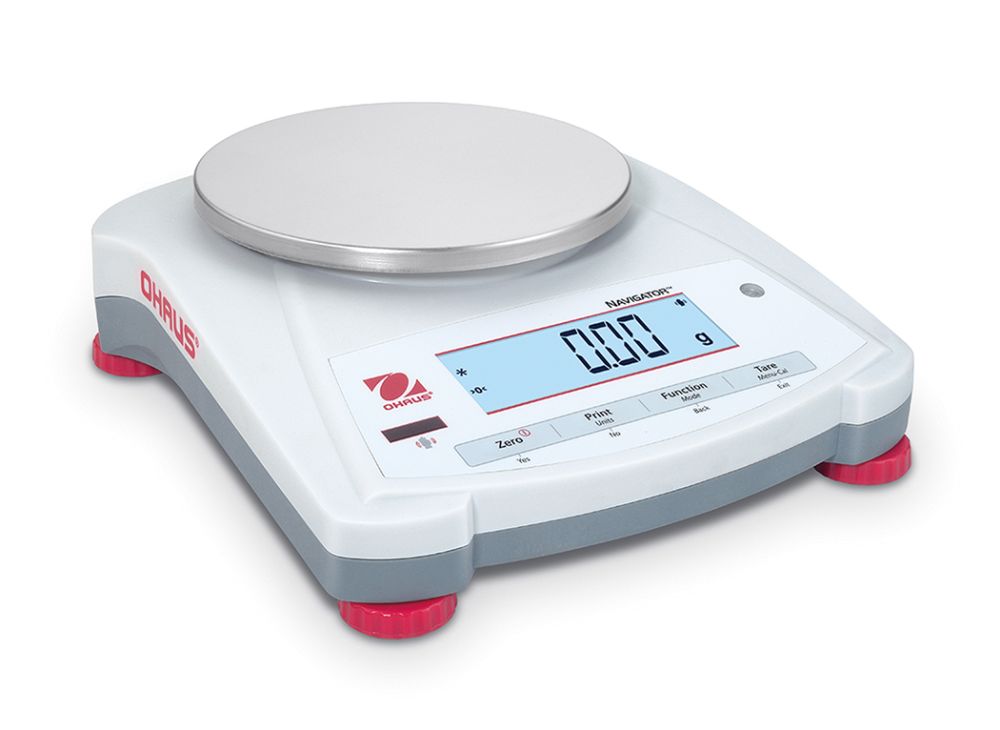

OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.
Capacity | 220 g |
---|---|
Readability | 0.01 g |
Span Calibration Mass (not included) | 200 |
Linearity Calibration Mass | 100, 200 g |
Stabilization Time | 1 second |
Construction | ABS housing and stainless steel pan |
Calibration | User-selectable external span or linearity calibration / Digital with external weight |
Tare Range | Full capacity by subtraction |
Weighing Units | g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain |
Application Modes | Weighing, Parts Counting, Percent Weighing, Checkweighing |
Power Requirements | AC adapter (included) or 4 C batteries (not included) |
Typical Battery Life | 270 hours |
Temperature Range | 50° F to 104° F (10° C to 40° C) at 10% to 85% relative humidity, non-condensing |
Storage Conditions | -4° F to 131° F (-20° C to 55° C) at 10% to 90% relative humidity, non-condensing |
Communication | RS232, USB, or Ethernet (available as accessories) |
Display Type | Liquid Crystal Display (LCD) with backlight |
Display Size | 0.78" (20 mm) digits |
Pan Size (W x D) | ø 5.7" (ø 145 mm) |
Balance Dimensions (W x D x H) | 8" × 9.1" × 2.8" (204 mm × 230 mm × 70 mm) |
Net Weight | 2.2 lb (1.0 kg) |
