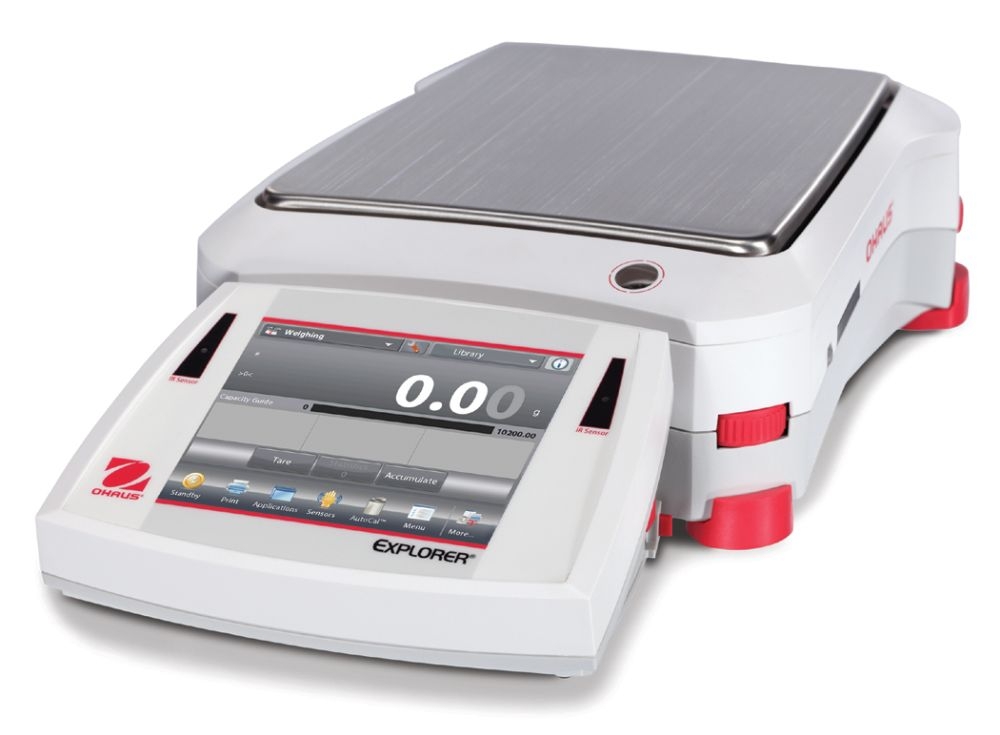

The Ohaus Explorer Series has risen to the next level of ingenuity, expanding on its modern features and design to offer unmatched functionality in a line of high-performance balances unlike any other on the market.

Capacity	2200 g
Readability d	0.01 g
Verification Interval e	0.1 g
Class	II
Repeatability (Standard)	±0.01 g
Linearity	±0.02 g
Stabilization Time	≤ 1 second
Sensitivity Drift	3 ppm/°C
Weighing Units	g, kg, oz, lb, ct, ozt, grain, dwt
Weighing Applications	Weighing, percent weighing, parts counting, check weighing, dynamic/animal weighing, filling, totalization, formulation, differential weighing, density determination, peak hold, ingredient costing, pipette adjustment, SQC, fill weight variation
Pan Size	7.5" x 8" / 190 mm x 200 mm
Calibration	External
Tare Range	To capacity by subtraction
Power Requirements	AC adapter input: 100-240 VAC, 0.6A, 50-60 Hz
Display Type	Full color VGA graphic display, 4-wire resistive touch screen
Display Size	5.7" / 145 mm (diagonal)
Display Housing (W x H x D)	7.68" x 3.54" x 6.06" / 195 mm x 90 mm x 154 mm
Base Housing (W x H x D)	9.06" x 3.86" x 15.47" / 230 mm x 98 mm x 393 mm
Communication	RS-232, USB and optional Ethernet (purchased separately)
Temperature Range	50° F to 86° F (10° C to 30° C)
Humidity Range	80% max up to 86° F / 30° C decreasing linearly to 50% at 104° F / 40° C, non-condensing
Storage Conditions	140° F / 60° C at 10% to 90% relative humidity, non-condensing
Net Weight	10 lb / 4.3 kg

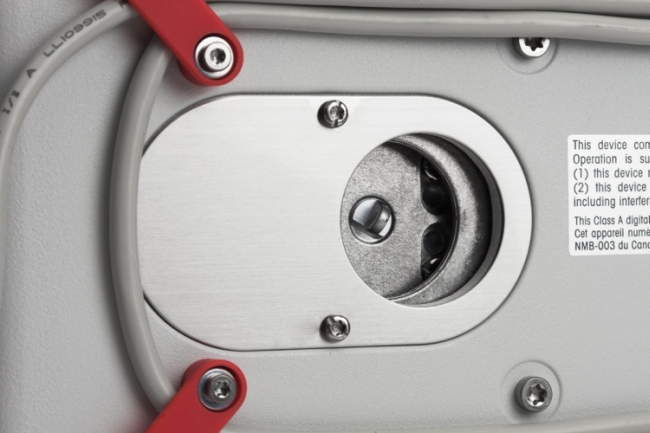

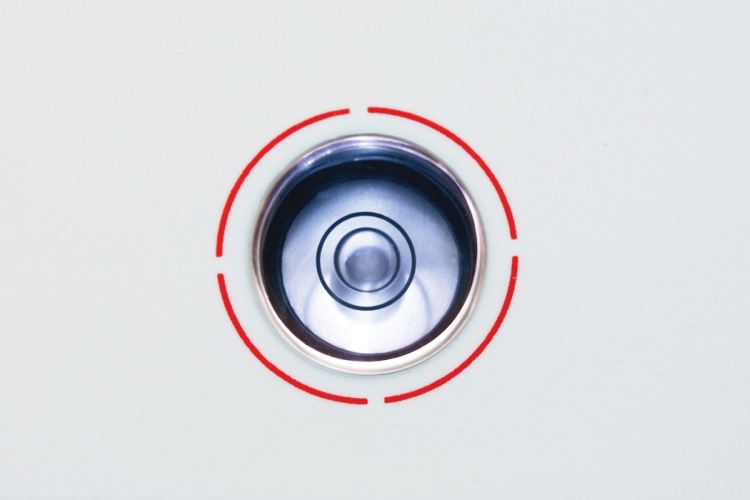

Construction	Modular design, metal base, ABS top housing, stainless steel pan, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, in-use cover
