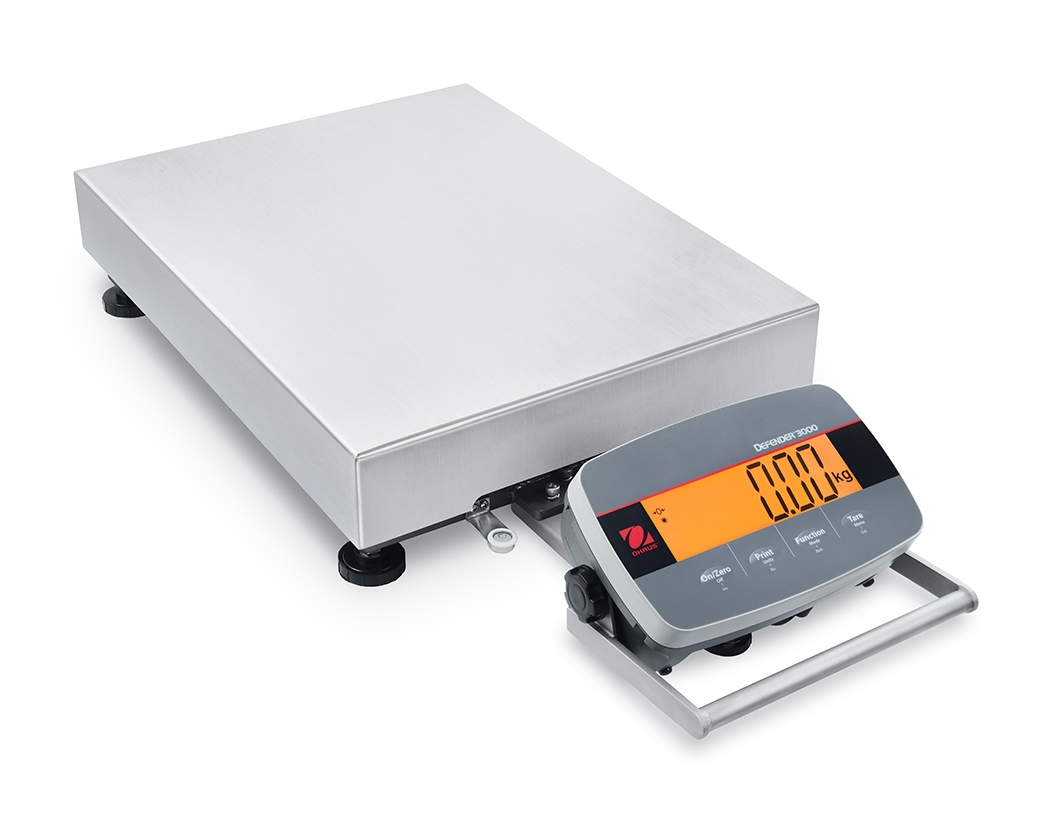

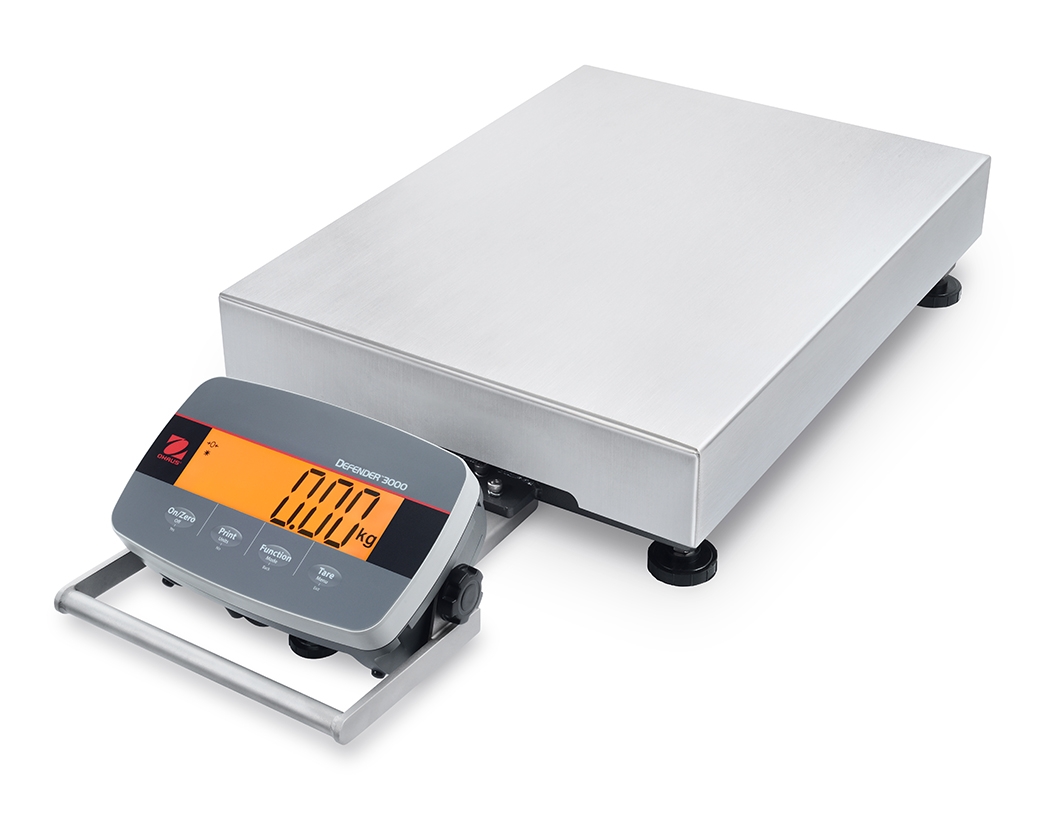

Ohaus D33P75B1L5 Defender 3000 Front Mount Bench Scale, 150 lb x 0.05 lb, NTEP Certified

Item #CSI-D33P75B1L5

Be the first to review this product

30%off

Availability: In stock

List Price: $970.00

Now: $679.52

You Save $290.48
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $170.00
Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN ) SKU: $1,005.00
  • Cable, RS232, IBM 9P, Ohaus AV, DV, MB, Ranger (OHA-PN 80500525) (PN ) SKU: $254.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN ) SKU: $1,303.00
  • Wheel kit, for Defender up to 600 lb capacity (OHA-PN 30372146) (PN ) SKU: $177.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN ) SKU: $220.00
  • Stainless steel wheel kit for Defender bases up to 300 lb capacity (OHA-PN 30616409) (PN ) SKU: $220.00
  • USB Device Interface Kit for Defender 3000 i-DT33XW and P Indicators (OHA-PN 30699120) (PN ) SKU: $123.00
  • Set of 5 Dust Covers for Defender 3000 i-DT33 (OHA-PN 30699121) (PN ) SKU: $62.00
  • Internal rechargeable battery kit for Defender 3000 i-DT33P indicators (OHA-PN 30699122) (PN ) SKU: $62.00
Overview

  • Applications: weighing, parts counting, checkweighing and totalization

  • Display: 6-digit, 7-segment LCD with multi-color backlight

  • Operation: AC (included), 6 "C" cell batteries (not included) or optional internal rechargeable battery (not included)

  • Communication: RS232 standard; USB Device or Ethernet optional (available as accessories)

  • Construction: ABS indicator with powder-coated mounting bracket and base frame, 304 stainless steel platform, non-slip adjustable rubber feet

  • Design Features: 150% overload protection

  • NTEP Certified

Ohaus D33P75B1L5 Defender 3000 Front Mount Bench Scale, 150 lb x 0.05 lb, NTEP Certified

Details

The Defender 3000 Series bench scales are ideal for general weighing, simple counting, and checkweighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation, and flexible mounting capabilities.

Capacity x Default Readability

75 kg x 10 g

150 lb x 0.02 lb

2,400 oz x 0.5 oz
Capacity x Certified/Approved Readability

75 kg x 50 g

150 lb x 0.05 lb

2,400 oz x 1 oz
Maximum Displayed Resolution 1:7,500
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000

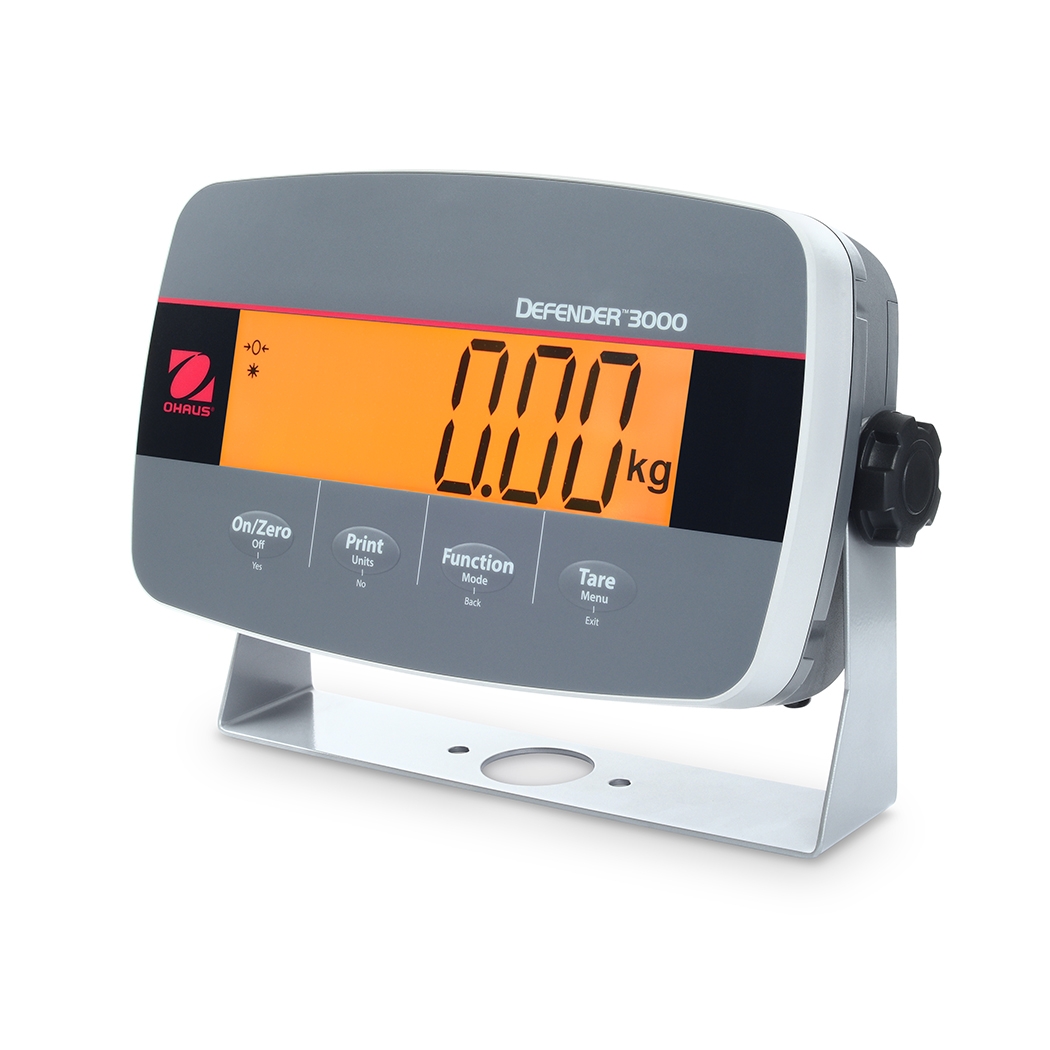

Indicator Construction
 ABS housing
Weighing Units kilogram, gram, pound, ounce, pound:ounce
Application Modes Weighing, parts counting, checkweighing and totalization

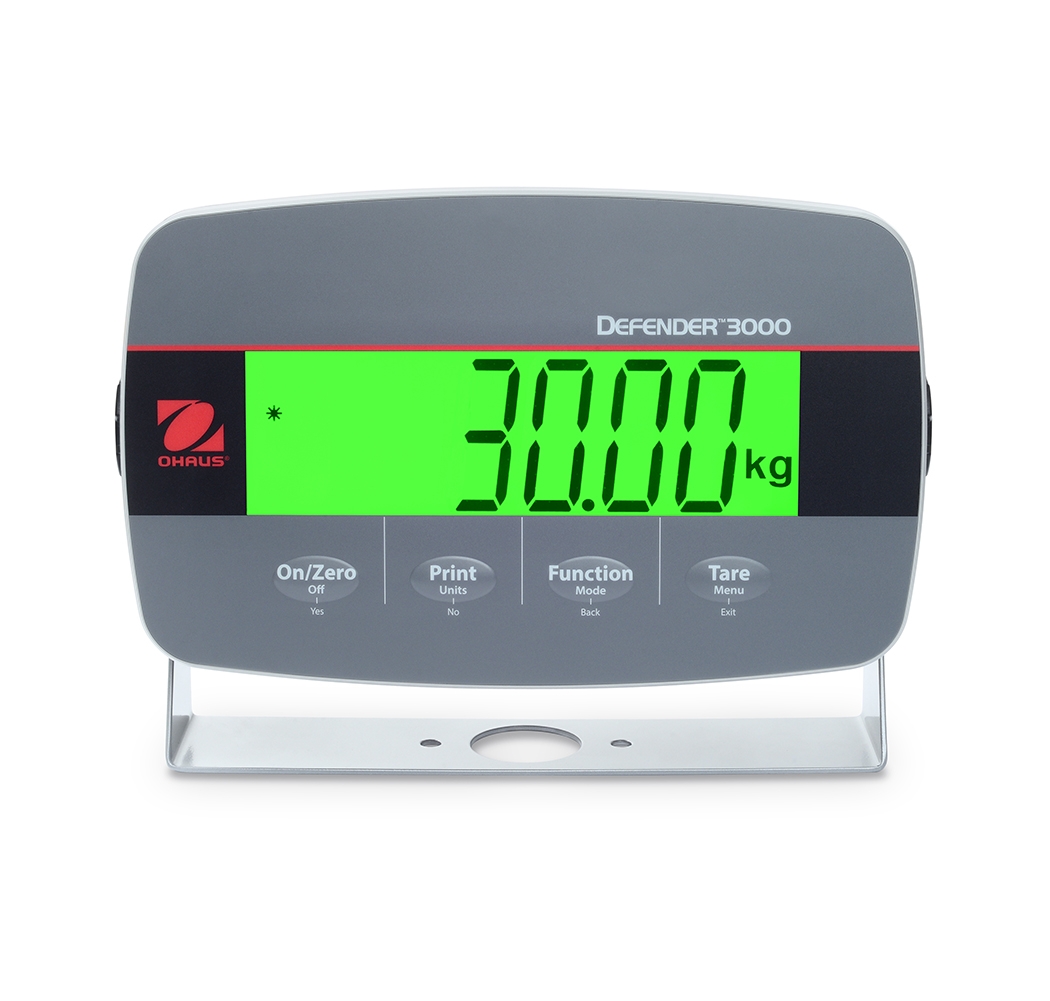

Display 6-digit, 7-segment LCD display with multi-color backlight, 1.8" (45 mm) high digits
Check Indicator 3-color (red, green, yellow) backlight
Keyboard 4 membrane function keys
Auto-zero Tracking Off, 0.5 d, 1 d, or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 included, optional second port USB Device or Ethernet available separately as an accessory
Power 100-240 VAC / 50/60 Hz universal power supply or 6 "C" cell batteries (not included) or optional internal rechargeable battery (not included, available as an accessory)
Battery Life Up to 360 hours (C cell battery) or 100 hours continuous use with optional rechargeable battery with backlight off
Calibration Zero, span, or 3-point linear

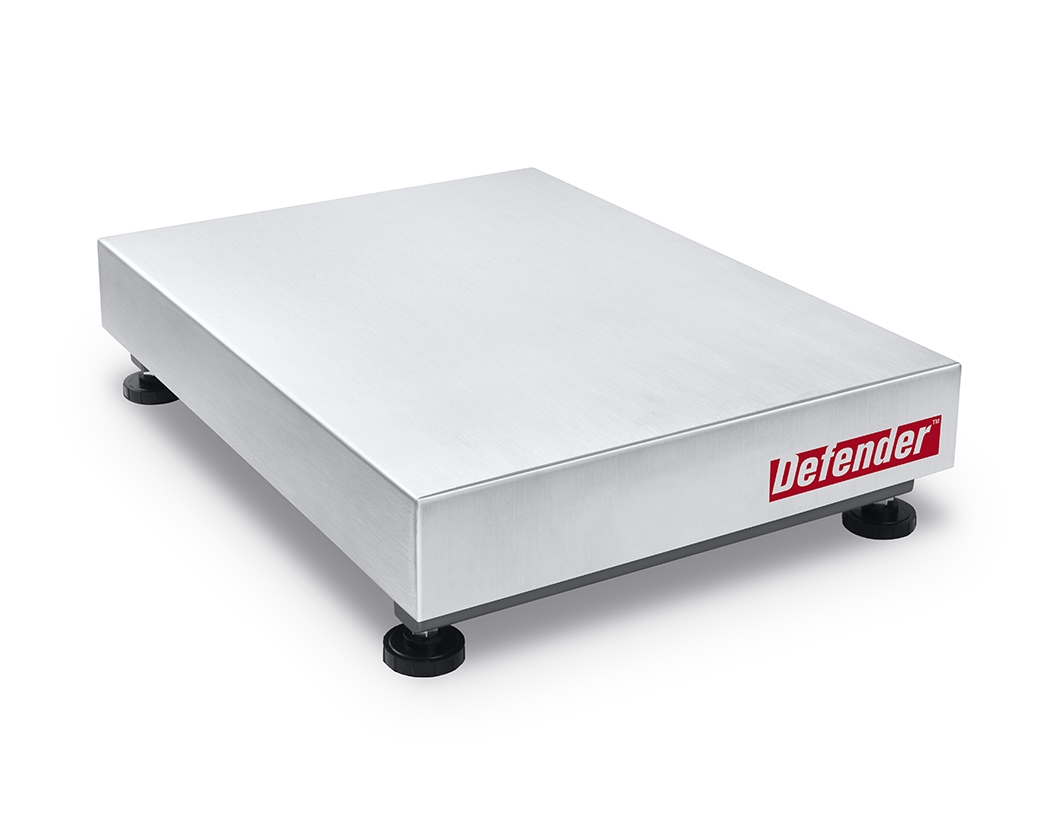

Base Construction Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity
 150% of rated capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size (L x W x H) 21.7" x 16.5" x 5.3" (550 mm x 420 mm x 134 mm)
Scale Dimensions (L x W x H) 33.1" x 16.5" x 5.2" (842 mm x 420 mm x 132.9 mm)
Approximate Net Weight 34.3 lb (15.5 kg)
