Details

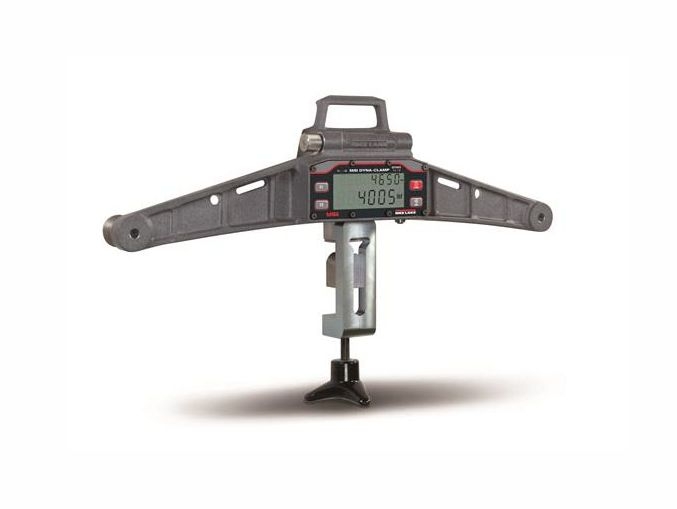

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.
The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.
The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension..
| Power | Battery operated, two "AA" cell 1.5 V alkaline batteries (can be replaced with rechargeable NiMH cells) |
|---|---|
| Maximum Tension | 12,500 lbf (5,670 kgf / 55.60 kN) |
| Operating Time | Alkaline AA cells, 24 hours |
| Wire Rope | Diameter 3/16 in (5 mm) - 1 in (25 mm) |
| Accuracy | Rated accuracy ±3% of capacity |
| Units | lbf, kgf, kN |
| Resolution | Standard 2,500 divisions |
| Display |
Primary display (bottom): six, 0.7 in (18 mm) numeric digits Secondary display (top): eight, 0.5 in (13 mm) numeric digits |
| Function Keys |
Two programmable keys (user-defined) - F1, F2 [test, unit, print, scroll, actfun (active function)] Two permanent keys - power, zero |
| Setpoints | Two dedicated setpoints for minimum and maximum allowable wire rope tensions (LEDs for measurements outside of allowable range) |
| Auto-Off Mode | Prolongs battery life by turning power OFF after 15, 30, 45 or 60 minutes of no activity (user determined) |
| Enclosure | IP65 powder-coated aluminum frame |
| Calibration | Up to eight factory programmed wire rope calibrations (must be specified at the time of order) |
| Operating Temperature | -4° F to 122°F (-20°C to 50°C) |
| Operator Use | Outdoor |
| Storage | Indoor |
| Approvals | CE marked |
