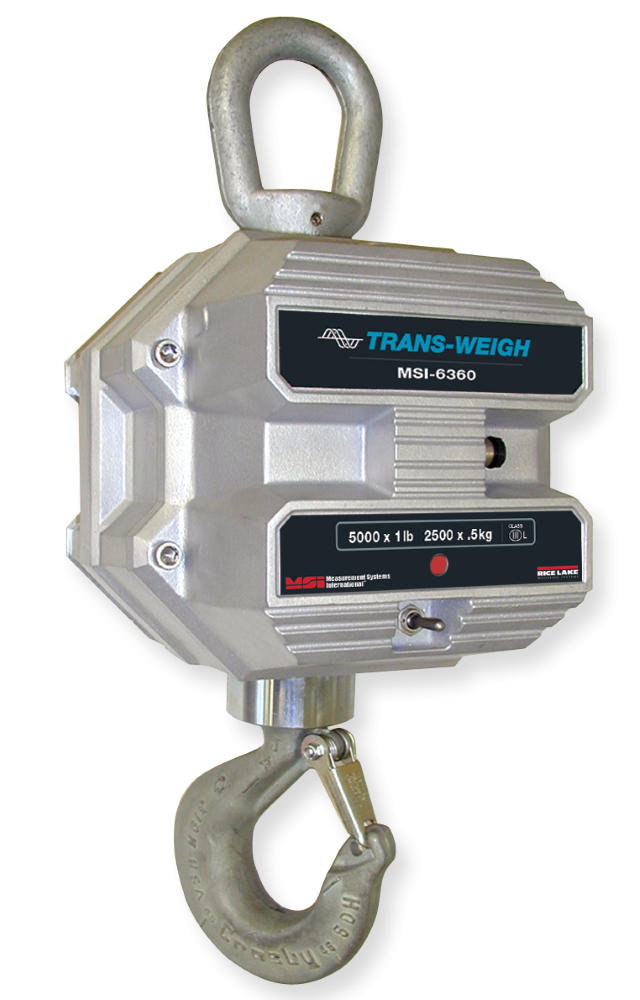

The MSI-6360 Trans-Weigh is an NTEP Certified industrial crane scale specifically designed to withstand high-temperature applications. With ScaleCore technology, the MSI-6360 can be remotely controlled and monitored safely from virtually anywhere.
Two integrated antennas allow the operator to connect up to two remote devices or networks via the optional RF or Wi-Fi modules. Connected ScaleCore remote devices can wirelessly display weight information—improving operation versatility and overall efficiency.
All electronics are securely mounted in a robust IP66 marine grade 356 alloy cast aluminum enclosure. The enclosure is designed for easy access for calibration and quick removal of the rechargeable battery.
Capturing weight with ± 0.1% accuracy of applied load, the MSI-6360 is ideal for use in demanding industrial applications and offers Legal for Trade configurations in capacities up to 70,000 pounds. A non-Legal for Trade configuration has capacities up to 100,000 pounds for industrial applications.
| Capacity | 2000 lb (1000 kg) |
|---|---|
| Readability | 1 lb (0.5 kg) |
| Accuracy | ± (0.1% +1d) of applied load |
| Resolution | 3000 d to 5000 d max standard (up to 10,000 d max non-standard) |
| Enclosure | NEMA 4, IP66, marine grade 356 alloy anodized cast aluminum |
| Lifting Eye & Hook | Crosby or equivalent with 360° thrust-bearing swivel hook |
| Design Overload | 200% safe / 500% ultimate (except where noted) |
| Functions | On/Off |
| Displayable Units | Pounds or kilograms selectable |
| Power | 12 volt rechargeable battery (115/230 VAC battery charger is included) |
| Operating Time | Up to 40 hours between charging with typical use |
| Operating Temperature |
Legal: 14°F to 104°F (-10°C to 40°C) Industrial: -40°F to 176°F (-40°C to 80°C) |
| Calibration | Digital via MSI ScaleCore remote device |
| Radio Link | 802.15.4 at 2.4 GHz |
| Radio Link Effective Range | Typically 100 to 300 ft line of sight |
| Approvals | NTEP CC 19-122 |
