Details

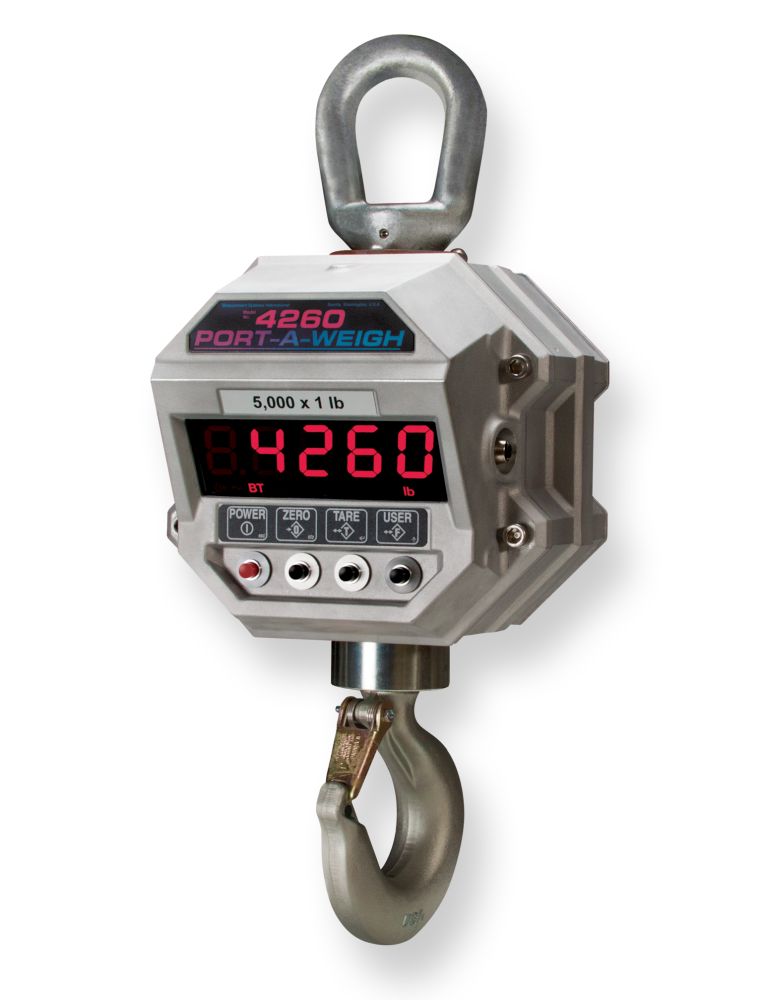

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.

Capacity	100,000 lb (50,000 kg)
Resolution	20 lb (10 kg)
Accuracy	± 0.1% + 1d of applied load
Resolution	2000 to 5000 d standard
Enclosure	NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum
Lifting Eye, Shackle & Hook	Crosby® or equal with 360° thrust-bearing swivel hook
Design Overload	200% safe / 500% ultimate (lb capacity) 450% ultimate (kg capacity)
Functions	Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity Tare: Tares applied load and displays weight in Net mode F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD
Display	1.2" (30 mm), 5-digit, programmable LED, multi-color (red, orange, and green)
Displayable Units	Pounds or kilograms selectable
Annunciators	COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints
Power	12 volt rechargeable battery, 115/230 VAC battery charger is included
Operating Time	Up to 200 hours between charging with typical use, less with optional RF Modem
Temperature Range	Operating: -40°F to 122°F (-40°C to 50°C) Certified: 14°F to 104°F (-10°C to 40°C)
Auto-Off Mode	Select for 15, 30, 45 minutes, 1 hour or Off
Auto Sleep Mode	Power down during non-use and power up with weight change or any key press
Service Counters	Counts number of lifts over percentage of capacity and lifts over capacity
Calibration	Digital
Filtering	OFF, LO, HI-1, HI-2 selectable
Warranty	One year limited
Approvals	NTEP CC 19-122
