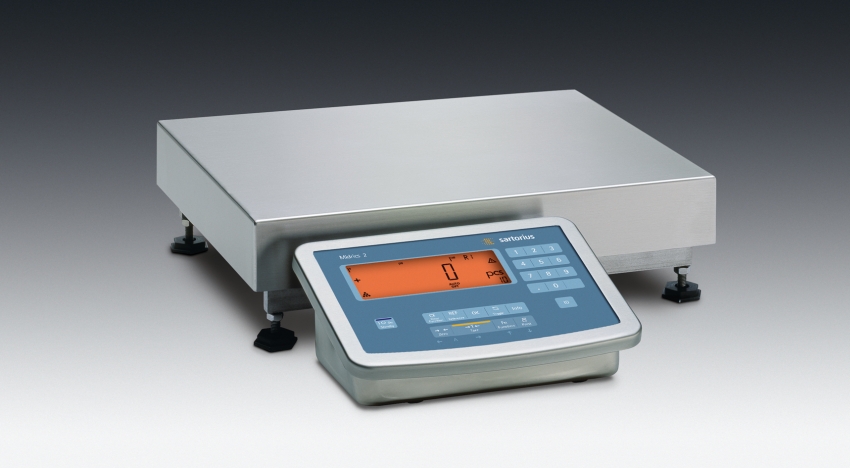

Minebea Intec MW2S1UE-50DD-I Midrics Extend Complete Scale, 60 lb x 0.002 lb, 12" x 12" platform, stainless steel

Item #MW2S1UE-50DD-I

Be the first to review this product

15%off

Availability: In stock

List Price: $2,422.00

Now: $2,058.00

You Save $364.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $65.00
Accessories
  • 24 volt module for Midrics, Signum indicator (MI-PN YAS02MI) (PN YAS02MI) SKU: YAS02MI $283.00
  • Ethernet connecting cable with RJ45 male connector, 7 m (MI-PN YCC02-RJ45M7) (PN YCC02-RJ45M7) SKU: YCC02-RJ45M7 $291.00
  • Plate for attaching indicator and printer to bench stand (MI-PN YPP01CWS) (PN YPP01CWS) SKU: YPP01CWS $338.00
  • Dust covers for Midrics and Signum indicator, 2 units (MI-PN YDC01SW) (PN YDC01SW) SKU: YDC01SW $98.00
  • Bench mount bracket for 10" x 10", 12" x 12" and 18" x 18" platforms, and Signum SIWAEDG (MI-PN YDH12CWSUS) (PN YDH12CWSUS) SKU: YDH12CWSUS $143.00
  • Stainless steel brackets for wall mounting, tiltable (MI-PN YDH02CISUS) (PN YDH02CISUS) SKU: YDH02CISUS $120.00
  • Post mount assembly for 12" x 12" platforms, Signum SIWAEDG, 19" high (MI-PN YDH02CWSUS) (PN YDH02CWSUS) SKU: YDH02CWSUS $337.00
  • Connecting cable from RS232 to USB-connector, 2 m (MI-PN MI-YCC01-USBM2) (PN MI-YCC01-USBM2) SKU: MI-YCC01-USBM2 $277.00
  • UniCOM interface: RS-232 (MI-PN YDO01M-232CO) (PN YDO01M-232CO) SKU: YDO01M-232CO $468.00
  • UniCOM interface: RS-485/422 (MI-PN YDO01M-485) (PN YDO01M-485) SKU: YDO01M-485 $468.00
  • UniCOM interface: digital input 5 / output 5 opto isolated (MI-PN YDO01M-IO) (PN YDO01M-IO) SKU: YDO01M-IO $1,142.00
  • UniCOM interface: analog current output, 0-20 mA, 4-20 mA, 0-10 V, 16-bit (MI-PN YDA01M-20MA) (PN YDA01M-20MA) SKU: YDA01M-20MA $647.00
  • UniCOM interface: internal Ethernet interface module 10/100Mbit TCP/IP (MI-PN YDO01M-EN) (PN YDO01M-EN) SKU: YDO01M-EN $1,087.00
Overview

  • Combics stainless steel platform with Midrics Level 2 indicator

  • Rugged construction

  • IP65 protection rating for industrial use

  • Easy to use

  • Easy to clean

  • Four adjustable feet

Minebea Intec MW2S1UE-50DD-I Midrics Extend Complete Scale, 60 lb x 0.002 lb, 12" x 12" platform, stainless steel

Details

The bench and floor scale Midrics® is a proven tough complete scale for reliable quality control, for example in the grocery, pharmaceutical, chemical, electronics and metal industries. Boasting a long product lifetime, they are robust and easy to clean. The indicator can be set up according to the use regardless of location of the platform and can even be mounted on a stand.

Capacity 60 lb (30 kg)
Readability 0.002 lb (0.001 kg)
Platform Size 12" x 12"
Platform Material 304 stainless steel, IP67

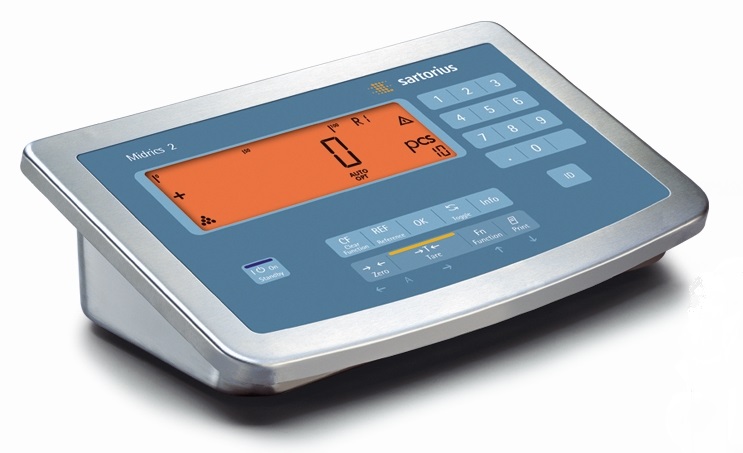

Indicator

Midrics 2:

  • Display: backlit, 14-segment, 0.75" LCD for weight readout, bar graph
  • Integrated A/D converter for connecting analog platforms
  • 304 stainless steel enclosure, IP65
  • Connection for bar code scanner, battery operation
  • Applications: weighing, counting, checkweighing, classification (into three or five classes), totalizing, net-total, weighing in percent, neutral measurement
Indicator Dimensions (W x D x H) 9.4" x 3.7" x 6.5" (238 mm x 94 mm x 165 mm)
Data Interface Optional
Power Requirements 100-240 VAC
Operating Temperature 14° F to 104°F (-10°C to 40°C)
