iDimension LTL Pallet Dimensioning System

Item #194205

Be the first to review this product

5%off
Call for Quote
You Save $2,650.00
Accessories
  • iDimension LTL - annual software maintenance (RLW-PN 194215) (PN 194215) SKU: 194215 $1,995.00
  • Camera option kit, for iDimension (RLW-PN 188755) (PN 188755) SKU: 188755 $875.00
  • LED target zone light option kit, amber, set of 4, for iDimension LTL (RLW-PN 194206) (PN 194206) SKU: 194206 $1,795.00
  • 21.5" smart monitor and mount option kit, forklift operator, commercial, for iDimension LTL (RLW-PN 193830) (PN 193830) SKU: 193830 $2,995.00
  • Industrial PC and mount kit with iDimension software suite, for iDimension LTL (RLW-PN 189332) (PN 189332) SKU: 189332 $6,500.00
  • Industrial PC stand and guardrail kit, for iDimension LTL (RLW-PN 174659) (PN 174659) SKU: 174659 $1,250.00
  • 50 ft AC power cord, for iDimension LTL (RLW-PN 174132) (PN 174132) SKU: 174132 $45.00
  • 80/20 ceiling mount kit, 45 degree install, 25 ft ceiling max, for iDimension (RLW-PN 194208) (PN 194208) SKU: 194208 $3,295.00
  • Aircraft wire ceiling mounting kit, 35 ft ceiling max, for iDimension (RLW-PN 188757) (PN 188757) SKU: 188757 $1,795.00
Overview

  • Legal-for-Trade measurement range for maximum freight size at 96" x 96" x 96" and minimum freight size at 12" x 12" x 12" with 0.5" accuracy

  • 360-degree access for easy pallet placement in the center of target zone

  • No moving parts and solid-state design

  • Minimal set-up and training required

  • Up to four low-resolution intensity images provide a bounding box to identify measurement recorded and can be configured to include time and date, scan ID, serial number, dimensions and dimensioning indications


Options:



  • Up to two high-resolution cameras enable freight identification, damage assessment and tracking

  • LED lighting kit reflects a light grid on the floor, eliminating the need to paint, etch or tape the dimensioning zone

  • 23" forklift operator display provides instantaneous feedback to the forklift or pallet jack operator, communicating dimensions and system status

  • iDimension software suite provides a customizable GUI and triggering methods, storage, logging and transfer of shipment and dimensional data and ftp images to existing ERP, TMS and WMA without the use of the iDimension web service interface API

  • iDimension software suite can be used to integrate the iDimension LTL with barcode scanners, floor scales and forklift scales

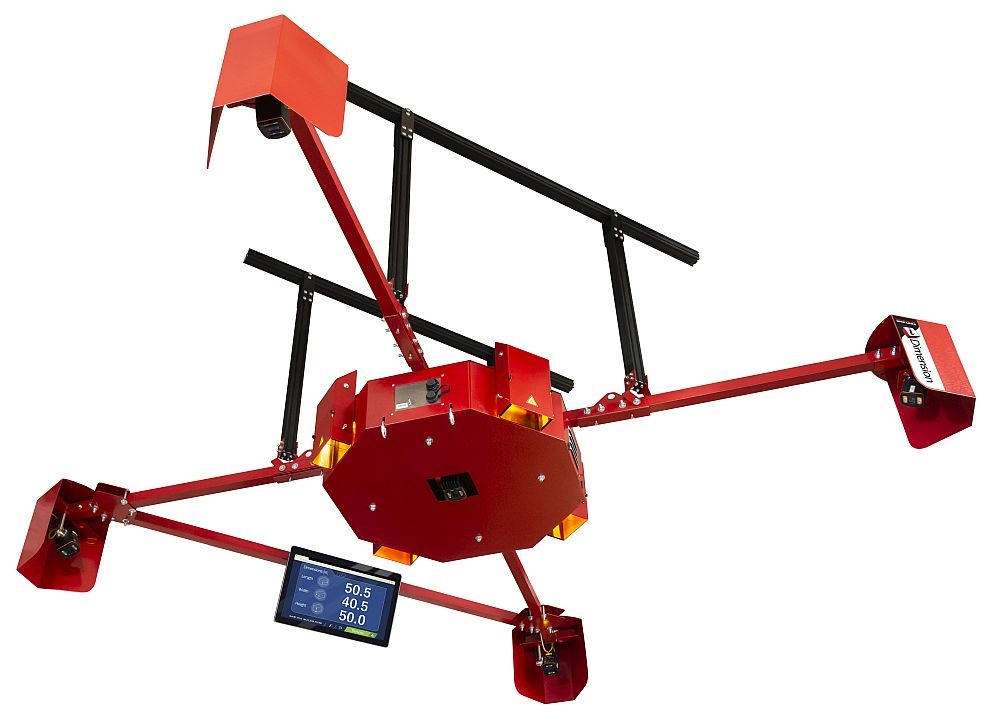

iDimension LTL Pallet Dimensioning System

Details

The iDimension LTL uses advanced sensing technology to accurately determine the cubic dimensions of freight, helping ensure freight code compliance is being recorded and declared.

Ideal for LTL carriers and companies with a high percentage of product shipped via pallet or crate, the iDimension LTL removes the potential for human error when taking measurements. The extra labor of manually determining dimensions is eliminated by accurately capturing freight dimensions in less than two seconds.

Legal-for-Trade Measurement Range

Maximum freight size: 96" L x 96" W x 96" H

Minimum freight size: 12" L x 12" W x 12" H
Measurement Increment 0.5"
Throughput Average transaction time of 7 seconds
Performance Characteristics Most surfaces are captured, including black plastic shrink wrap. Transparent/translucent and glossy surfaces may provide a variance.
Item Placement Single pallet within the center of the target zone for best performance
Minimum Pallet Height 4.25" wood pallets
Shapes Solid shapes, (3" protrusions or more) will be included in dimensions
Lighting Conditions Operates in any indoor lighting environment
System Contents iDimension LTL, calibration object, 20" x 20" x 20" test box
Dimensioning Speed Within 2 seconds from the time the target area is clear and the iDimension LTL has been triggered to scan
Unobstructed Floor Space For best performance, provide an 11 ft x 11 ft area clear of walls, inventory racks or barriers
Minimum Ceiling Height 12.75 ft
Sensor Height 11 ft
Network Interface One static IP address required when used with a mobile PC. Up to 12 IP addresses reserved when connected directly to the network..
Physical Dimensions 135" L x 135" W x 14.5" H
Power Requirements Single power source (96-264 VAC), with 25 ft power cable
Optional Mobile PC Quad Core Intel E3845 processor, 4GB RAM DDR3, CFAST 32GB, 12.1 in XGA LED 500 NIT display with resistive touchscreen, Windows 10 Pro, 4 x USB 2.0 ports, 1 x Ethernet 10/100/1000, 1 x VGA, -30°C to 55°C, IP65
Optional Network Camera 2.4 mm POE network color camera with 3-axis camera angle adjustment. IP24 rating. Standard 2688 x 1606 pixels, 96 dpi @ 751kb standard output in .jpeg format. Configurable for time and date, scan ID, system serial #, dimensions and dimensional indicators.
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Humidity 0-90%, non-condensing
Warranty

Two-year limited warranty

Five-year limited warranty, sensors only
