Details

HV-C & HV-CP Bench Scale Series improves on the HV-GL Series by adding bright 3-5-7 segment color comparator function for checkweighing and a 10-digit keypad to make entry of comparator and tare values quick and easy. Weighs in lbs, kg, oz. Weighing modes include parts counting and accumulation function for totaling weigh data.

Capacity x Resolution (kg) *	3 / 6 / 15 kg x 0.001 / 0.002 / 0.005 kg
Capacity x Resolution (lb) *	6 / 15 / 30 lb x 0.002 / 0.005 / 0.01 lb
Capacity x Resolution (oz) *	96 / 240 / 480 oz x 0.05 / 0.1 / 0.2 oz
Counting Mode	Maximum countable number: 150,000 Number of samples: 5, 10, 20, 50 or 100
Stabilization Time **	Within 1 second
Repeatability (std. deviation)	0.001 / 0.002 / 0.005 kg
Linearity	±0.001 / ±0.002 / ±0.005 kg
Sensitivity Drift	±20 ppm / °C (5° C to 35 °C / 41° F to 95° F)

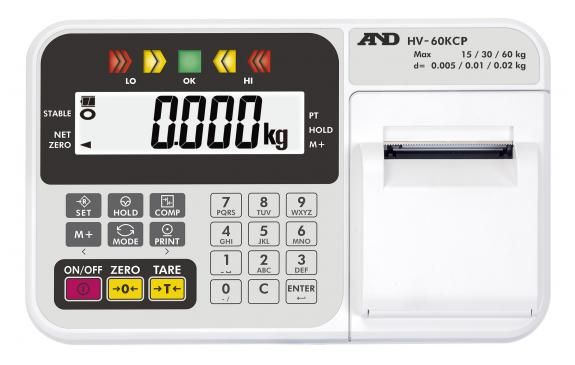

Display	7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights
Display Update	10 times / second
Operating Temperature	-10°C to 40°C (14°F to 104°F), less than 85% RH (non-condensing)
Power Supply	AC adapter or four D batteries (approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF)
Weighing Pan Size (W x D)	250 mm x 250 mm (9.8" x 9.8")
Dimensions (W x D x H)	275 mm x 474 mm x 368 mm (10.8" x 18.7" x 14.5")
Weight	Approximately 6 kg (13 lb)

* Multi-interval: For HV-C and HV-CP, the multi-interval function means the lighter the target object is, the finer the readability becomes.

** Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
