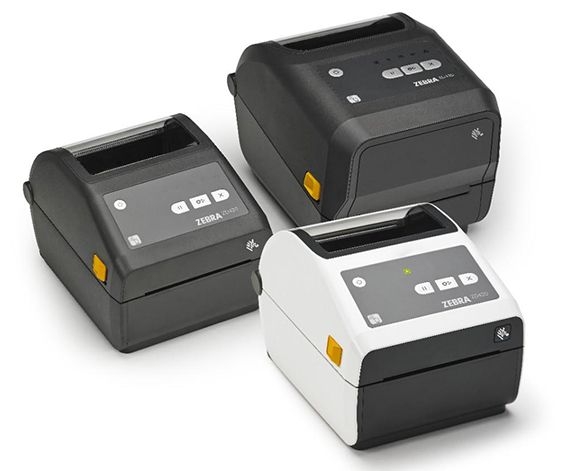

Zebra ZD Series ZD421t thermal transfer printer, USB host (RLW-PN 212406)
Zebra ZD Series ZD421t thermal transfer printer, USB host (RLW-PN 212406)

Zebra ZD Series ZD421t thermal transfer printer, USB host (RLW-PN 212406)

212406
Be the first to review this product

Availability: In Stock

$820.00

Accessories
  • Printer cable, DB9M to blunt male DB9 to blunt end cable, 5 ft, PINOUT: Black Pin-5, Red Pin-3, Green Pin-2 (RLW-PN 41276) SKU: 41276 $77.00
  • Peeler option, for ZD421t, front mount, field installable (RLW-PN 213390) SKU: 213390 $40.00
  • RS-232 option, for ZD421 Series, field-installable (RLW-PN 212815) SKU: 212815 $29.00
Overview
  • Print width: 4.09"
  • Print speeds of 6" per second
  • 203 dpi
  • USB 2.0 host
  • Auto sense EPLZ or ZPL
  • Tear bar
Paper Width 0.75" to 4.25" (19 mm to 108 mm)
Paper Thickness 0.003" to 0.0075" (0.08 mm to 0.19 mm)
Paper Diameter (OD) 5" (127 mm)
Paper Roll Shaft 0.5" and 1" standard
Resolution 203 dpi/8 dots per mm
Memory 512 MB flash, 128 MB SDRAM
Print Width 4.09" (104 mm)
Maximum Print Length 3.90" (99 mm)
Maximum Print Speed 6" (152 mm) per second
Media Sensors Full width, movable reflective, multi-position transmissive/gap sensor
Ribbon Outside Diameter 2.6"
Ribbon Standard Length 984' (300 m)
Ribbon Ratio 1:4 media to ribbon
Ribbon Width 0.585" to 4.65"
Ribbon Core Inner Diameter 1"
Interface USB 2.0 host
Operating Characteristics

Operating Temperature: 40° F to 105° F (4° C to 41° C)

Storage temperature: -40° F to 140° F (-40° C to 60° C)

Operating humidity: 5% to 95 % non-condensing

Storage humidity: 5% to 95 % non-condensing
Electrical Auto-detectable (PFC compliant)
Dimensions (L x W x H) 10.5" x 8.0" x 7.5"
Bar Code Symbologies Barcode ratios: 2:1 (non-rotated) and 3:1 Linear bar codes; Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPCA, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E and GS1 DataBar (formerly RSS) Two-dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, MicroPDF417, Aztec For EPL and ZPL except where noted
