Details

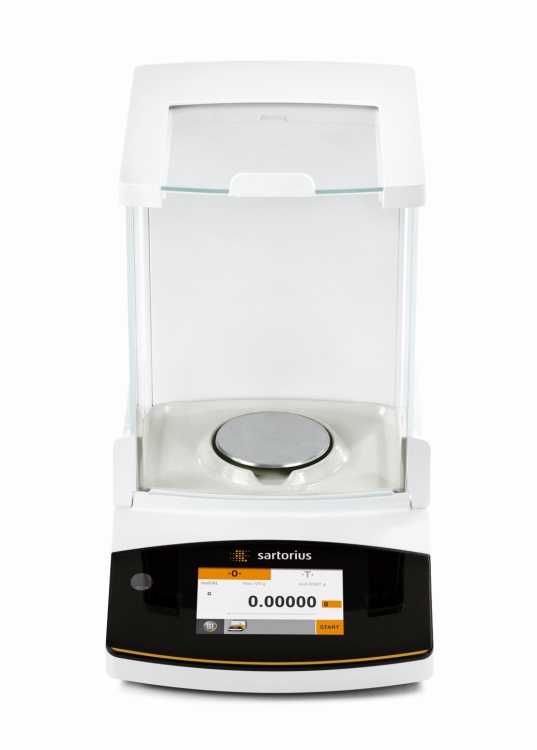

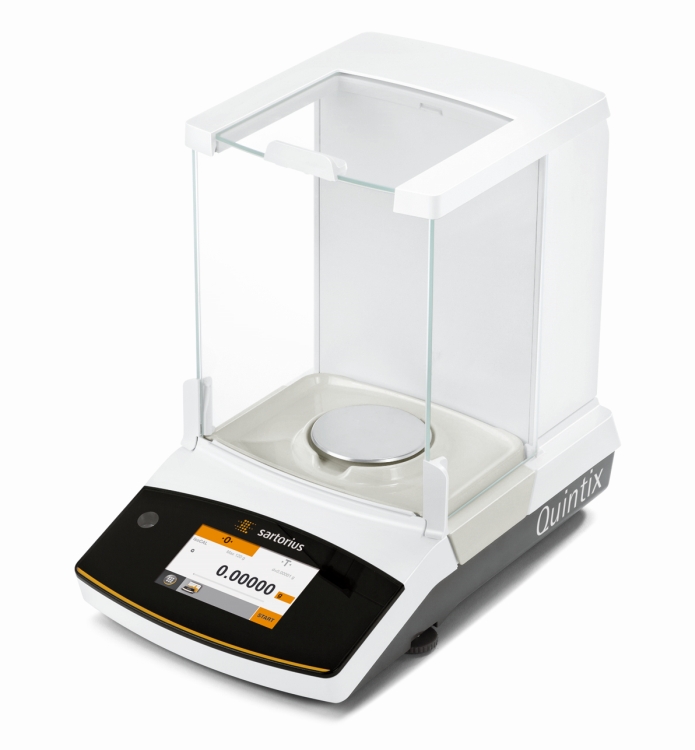

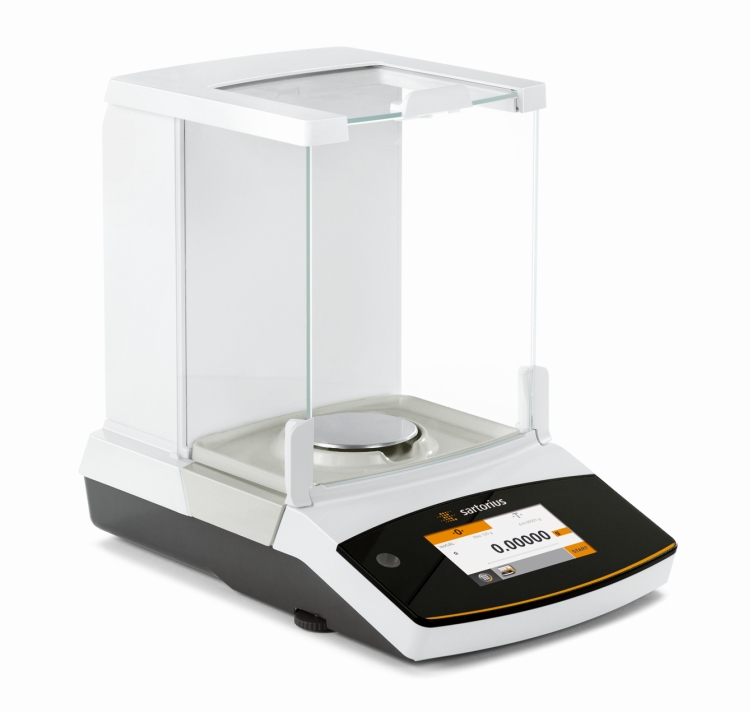

Make your routine lab work easy with our revolutionary user interface. The Sartorius Quintix® sets new benchmarks in every aspect for standard lab balances. A number of features make your workflow much more efficient, such as fully automatic internal adjustment, direct data transfer, ergonomic style and, above all, the entirely new touchscreen user interface with built-in application programs. The self-explanatory icons and plain-text prompts on the large touchscreen show you all the information you need to know for the procedure - no more, no less.

Capacity	30 g
Readability	0.01 mg
Repeatability (standard deviation)	0.03 mg
Repeatability (standard deviation), typical	0.03 mg
Linearity Deviation	0.1 mg
Typical Starting point of the Operating Range *	25 mg (in combination with 80 mm slotted weighing pan, PN YSP01SQP)
Optimal Starting Point of the Operating Range *	8.2 mg (in combination with 80 mm slotted weighing pan, PN YSP01SQP)
Sensitivity Drift between +10°C and +30° C	± 1 ppm/K
Typical Stabilization Time	6 seconds
Calibration	isoCAL internal calibration
isoCAL Settings	Temperature Change: 1.5 K Time Interval: 4 h
Display Result (depending on the filter level)	0.2 / 0.4 s
Weighing Pan Size	ø 80 mm (ø 3.1")
Weighing Chamber Height **	218 mm
Leveling	Glass level indicator with air bubble for centering
Selectable Weight Units	Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram, parts per pound, China tael, mommes, Austrian carat, tola, baht, mesghal and Newton (limited for verified models)
Interface	Mini USB Automatic recognition of Sartorius printer models YDP30 or YDP40 (not included) Direct data transfer to Microsoft Windows programs Programmable interval for data output Data transfer protocols SBI, xBPI, table format, text format
Display	Touch screen with Sartorius graphical user interface
Standard Built-in Applications	Weighing, Density, Percentage, Checkweighing, Peak Hold, Counting, Unstable Conditions (Animal Weighing)
Anti-theft Lock	Kensington lock and lockdown capability for cable or chain (not included)
Net Weight (approximately)	7.8 kg
IP Protection Class	IP43
Dimensions (D x W x H)	376 mm x 214 mm x 316 mm (14.8" x 8.4" x 12.4")

* According to USP (United States Pharmacopeia) Chapter 41, the optimal operating range is defined from 820d to maximum weighing capacity. Depending on the installation location and environmental conditions, the value could be higher.

** Upper edge of the weighing pan to the lower edge of the upper draft shield panel
