Sartorius MCE524P-2S00-A Cubis II Analytical Complete Balance, 120/240/520 g x 0.1/0.2/0.5 mg
Sartorius MCE524P-2S00-A Cubis II Analytical Complete Balance, 120/240/520 g x 0.1/0.2/0.5 mg

Sartorius MCE524P-2S00-A Cubis II Analytical Complete Balance, 120/240/520 g x 0.1/0.2/0.5 mg

MCE524P-2S00-A
Be the first to review this product
10%off

Availability: In Stock

List Price: $12,470.00

Now: $11,223.00

You Save $1,247.00
Free Shipping on this product

Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • Flexible sample holder for weigh vessels and filters with diameter up to 120 mm (replaces original weigh pan) (SART-PN YFH01MS) SKU: YFH01MS $523.00
  • Ionization blower for electrostatically charged samples (SART-PN YIB01-0UR) SKU: YIB01-0UR $2,360.00
  • Stat-Pen ionization pen for discharging electrostatically charged samples (SART-PN YSTP01) SKU: YSTP01 $2,490.00
  • Standard thermal paper, 5 rolls of 24 m, for YDP30/YDP40 (SART-PN 69Y03287) SKU: 69Y03287 $41.10
  • Balance table, made from synthetic stone, with vibration dampening (SART-PN YWT03) SKU: YWT03 $2,900.00
  • Premium GLP lab printer (SART-PN YDP30) SKU: YDP30 $1,910.00
  • Standard paper and ink ribbon set, 90 m, for YDP30 (SART-PN 69Y03285) SKU: 69Y03285 $91.90
  • Self-adhesive paper and ink ribbon set, 90 m, for YDP30 (SART-PN 69Y03286) SKU: 69Y03286 $99.20
  • Self-adhesive thermal paper, 5 rolls of 13 m, for YDP30 (SART-PN 69Y03288) SKU: 69Y03288 $78.50
  • Self-adhesive labels, 58 x 100 mm, 350 pcs, for YDP30 (SART-PN 69Y03094) SKU: 69Y03094 $81.20
  • Self-adhesive labels, 58 x 76 mm, 500 pcs, for YDP30 (SART-PN 69Y03093) SKU: 69Y03093 $62.70
  • Self-adhesive labels, 58 x 30 mm, 1000 pcs, for YDP30 (SART-PN 69Y03092) SKU: 69Y03092 $60.40
  • Weighing table, made of wood with synthetic stone (SART-PN YWT09) SKU: YWT09 $2,720.00
  • Weighing scoop, stainless steel (SART-PN 641214) SKU: 641214 $126.00
  • Motion sensor for triggering a maximum of 4 functions via gesture control (SART-PN YHS02MS) SKU: YHS02MS $427.00
  • Density determination kit for solids and liquids for 0.1 mg and 0.01 mg weighing modules (SART-PN YDK03MS) SKU: YDK03MS $1,290.00
  • Ionizer with u-shaped electrode for 115 V (SART-PN YIB02-115V) SKU: YIB02-115V $3,550.00
  • Climate module, uncalibrated, for draft shield A or I and user interface MCA (SART-PN YCM20MC) SKU: YCM20MC $794.00
  • Climate module with DAkkS calibration certificate for draft shield A or I and user interface MCA (SART-PN YCM20MC-DAkkS) SKU: YCM20MC-DAkkS $2,770.00
  • Titanium holder for save-lock tubes, 1.5 ml – 2 ml, for semi-micro and analytical balances (SART-PN YSH15) SKU: YSH15 $692.00
  • Titanium holder for save-lock tubes up to 5 ml, for semi-micro and analytical balances (SART-PN YSH19) SKU: YSH19 $603.00
  • Titanium holder for vials – for semi-micro and analytical balances (SART-PN YSH23) SKU: YSH23 $844.00
  • Titanium holder for weighing boats – for semi-micro and analytical balances (SART-PN YSH26) SKU: YSH26 $855.00
  • Titanium holder for filters, 150 mm, for semi-micro and analytical balances (SART-PN YSH30) SKU: YSH30 $1,550.00
  • Titanium holder for titration vessels and round bottom flasks – for semi-micro and analytical balances (SART-PN YSH37) SKU: YSH37 $850.00
  • Titanium holder for syringes, vertical – for semi-micro and analytical balances (SART-PN YSH46) SKU: YSH46 $1,090.00
Lead Time

This Sartorius Cubis II Series balance is built-to-order and has an approximate lead time of 3 weeks.

Overview

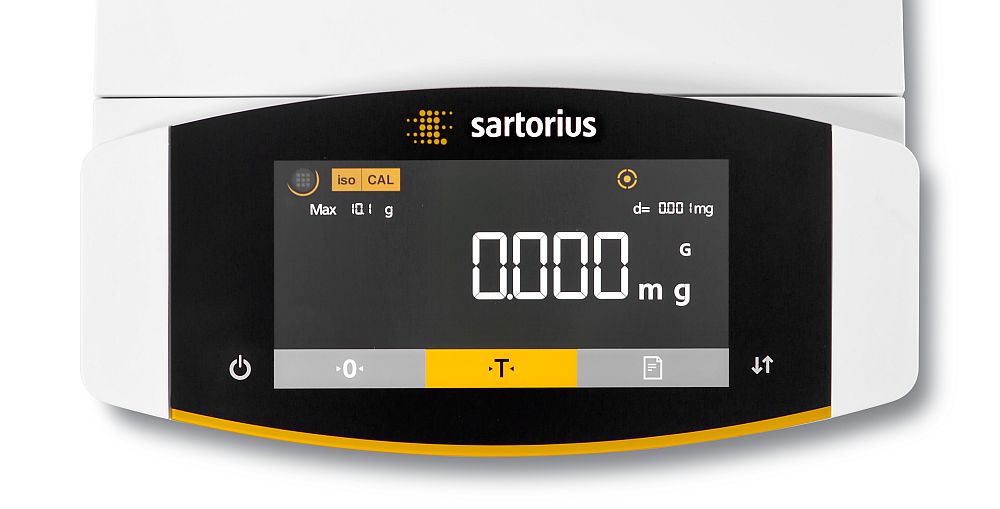

  • MCE Display and control unit:
    • State-of-the-art TFT touch screen operation with brilliant, readable display, but simple, easy-to-operate user interface
    • Software: factory installed basic set of essential weighing applications
    • Operation: activated by touch key or gesture sensor (optional), learning capability.

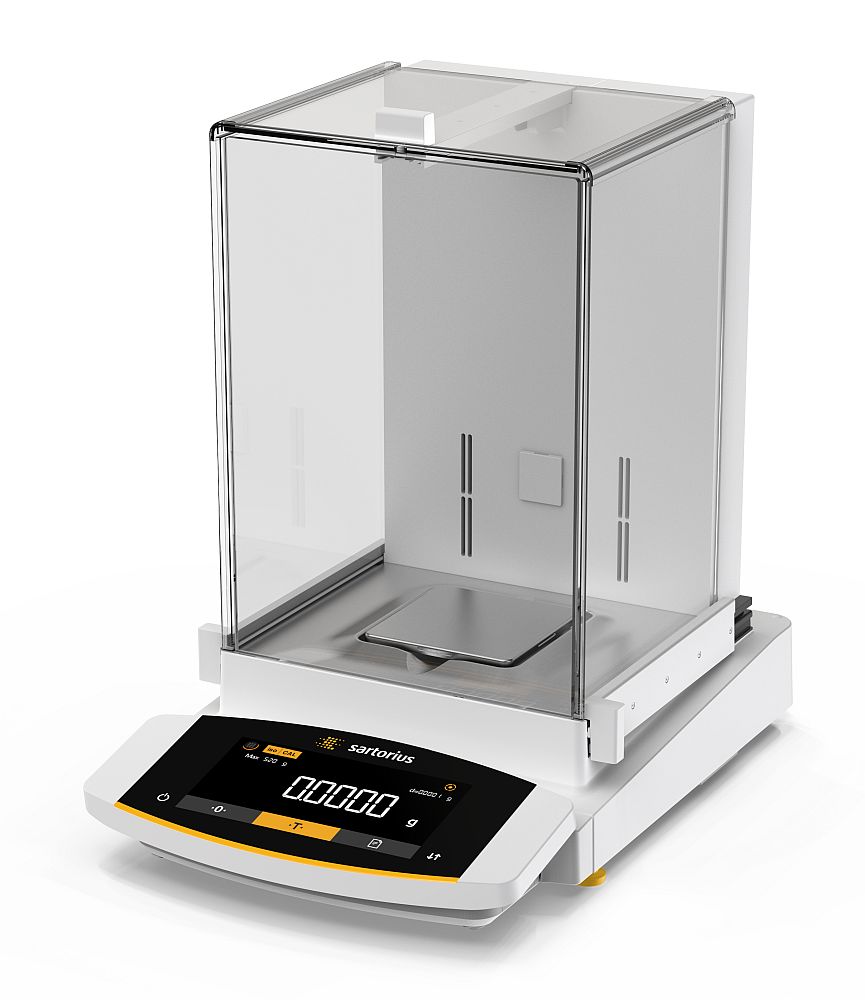

  • Draft Shield A:
    • Automatic, glass
    • Chamber height: 250 mm (9.8")
    • Learning capability
    • Weighing modules: semi-micro and analytical
    • Pan size: 85 x 85 mm

The modular weighing system Cubis® II can be individually configured from different components. The ability to combine the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 μg to 1 g provide the ideal model for every application.

Capacity x Readability 120 g x 0.1 mg / 240 g x 0.2 mg / 520 g x 0.5 mg
Draft Shield Type Draft Shield A
  • Automatic, glass
  • Chamber height: 250 mm (9.8")
  • Learning capability
  • Designed for semi-micro and analytical weighing modules
  • Pan size: 85 mm x 85 mm
Repeatability at 5% Load Standard deviation of the load values, tolerance 0.08 mg
Standard deviation of the load values, typical value 0.04 mg
Repeatability Near Max Standard deviation of the load values, tolerance 0.15 mg
Standard deviation of the load values, typical value 0.05 mg
Linearity Deviation Tolerance 0.5 mg
Typical value 0.2 mg
Deviation When Load is Off-center, Positions According to OIML R76 Test Weight 200 g
Tolerance 0.4 mg
Typical Value 0.2 mg
Sensitivity drift between +10 °C and +30 °C 1 ppm/K
Tare Maximum Capacity: Less Than 100% of Maximum Capacity Accuracy class according to Directive 2014/31/EU I
Verification scale interval (e) according to Directive 2014/31/EU 1 mg
Minimum load (Min) according to Directive 2014/31/EU 10 mg
Minimum Weight According to USP (United States Pharmacopeia), Chapter 41 Optimal minimum weight 82 mg
Typical minimum weight 82 mg
Typical stabilization time 1 sec.
Typical measurement time 3 sec.
Recommended Calibration Weight External test load 500 g
Accuracy class, according to OIML R111-1 E2
Dimensions Weighing module (L x W x H)* 425 mm x 240 mm x 373 mm
Weighing pan size 85 mm x 85 mm
Weight, approximately* 8.2/10.0 kg

* Depending upon weighing pan size, filter weighing pan and draft shield
