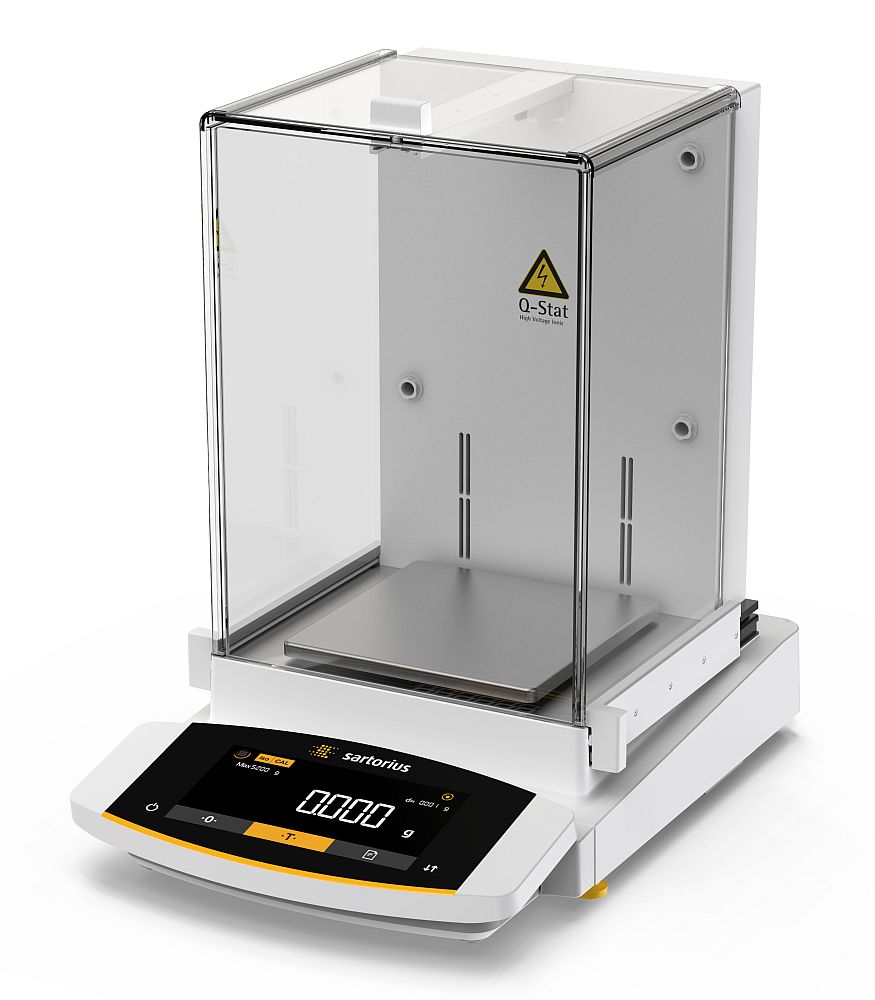

Sartorius MCE5203P-2S00-I Cubis II Precision Complete Balance, 1200/2400/5200 g x 1/2/5 mg

Item #MCE5203P-2S00-I

Be the first to review this product

5%off

Availability: In stock

List Price: $17,000.00

Now: $16,150.00

You Save $850.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Analytical Balance - $150.00
Accessories
  • Self-adhesive labels, 58 x 76 mm, 500 pcs, for YDP30 (SART-PN 69Y03093) (PN 69Y03093) SKU: 69Y03093 $60.10
  • Climate module with DAkkS calibration certificate for draft shield A or I and user interface MCA (SART-PN YCM20MC-DAkkS) (PN YCM20MC-DAkkS) SKU: YCM20MC-DAkkS $2,720.00
  • Climate module, uncalibrated, for draft shield A or I and user interface MCA (SART-PN YCM20MC) (PN YCM20MC) SKU: YCM20MC $778.00
  • Ionizer with u-shaped electrode for 115 V (SART-PN YIB02-115V) (PN YIB02-115V) SKU: YIB02-115V $3,480.00
  • Density determination kit for solids and liquids for 1 mg weighing modules (SART-PN YDK04MS) (PN YDK04MS) SKU: YDK04MS $1,260.00
  • Motion sensor for triggering a maximum of 4 functions via gesture control (SART-PN YHS02MS) (PN YHS02MS) SKU: YHS02MS $419.00
  • Weighing scoop, stainless steel (SART-PN 641214) (PN 641214) SKU: 641214 $124.00
  • Weighing table, made of wood with synthetic stone (SART-PN YWT09) (PN YWT09) SKU: YWT09 $2,670.00
  • Sartorius Wedge for Windows, no cable included (SART-PN YSW02) (PN YSW02) SKU: YSW02 $673.00
  • Self-adhesive labels, 58 x 30 mm, 1000 pcs, for YDP30 (SART-PN 69Y03092) (PN 69Y03092) SKU: 69Y03092 $57.90
  • Ionization blower for electrostatically charged samples (SART-PN YIB01-0UR) (PN YIB01-0UR) SKU: YIB01-0UR $2,310.00
  • Self-adhesive labels, 58 x 100 mm, 350 pcs, for YDP30 (SART-PN 69Y03094) (PN 69Y03094) SKU: 69Y03094 $77.90
  • Self-adhesive thermal paper, 5 rolls of 13 m, for YDP30 (SART-PN 69Y03288) (PN 69Y03288) SKU: 69Y03288 $75.30
  • Self-adhesive paper and ink ribbon set, 90 m, for YDP30 (SART-PN 69Y03286) (PN 69Y03286) SKU: 69Y03286 $95.10
  • Standard paper and ink ribbon set, 90 m, for YDP30 (SART-PN 69Y03285) (PN 69Y03285) SKU: 69Y03285 $88.10
  • Premium GLP lab printer (SART-PN YDP30) (PN YDP30) SKU: YDP30 $1,870.00
  • Balance table, made from synthetic stone, with vibration dampening (SART-PN YWT03) (PN YWT03) SKU: YWT03 $2,840.00
  • Standard thermal paper, 5 rolls of 24 m, for YDP30/YDP40 (SART-PN 69Y03287) (PN 69Y03287) SKU: 69Y03287 $39.40
  • Stat-Pen ionization pen for discharging electrostatically charged samples (SART-PN YSTP01) (PN YSTP01) SKU: YSTP01 $2,440.00
Lead Time
This Sartorius Cubis II Series balance is built-to-order and has an approximate lead time of 2 weeks.
Overview

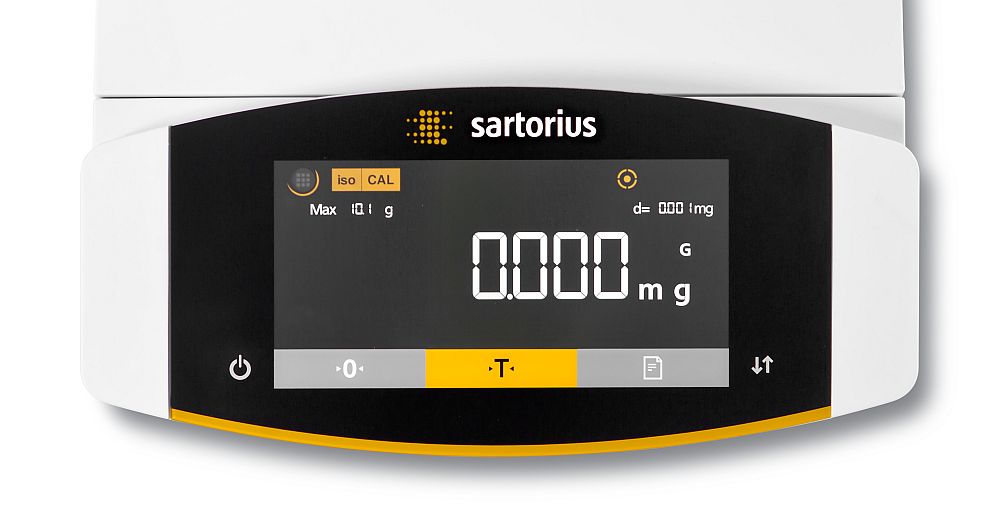

  • MCE Display and control unit:


    • State-of-the-art TFT touch screen operation with brilliant, readable display, but simple, easy-to-operate user interface

    • Software: factory installed basic set of essential weighing applications

    • Operation: activated by touch key or gesture sensor (optional), learning capability.

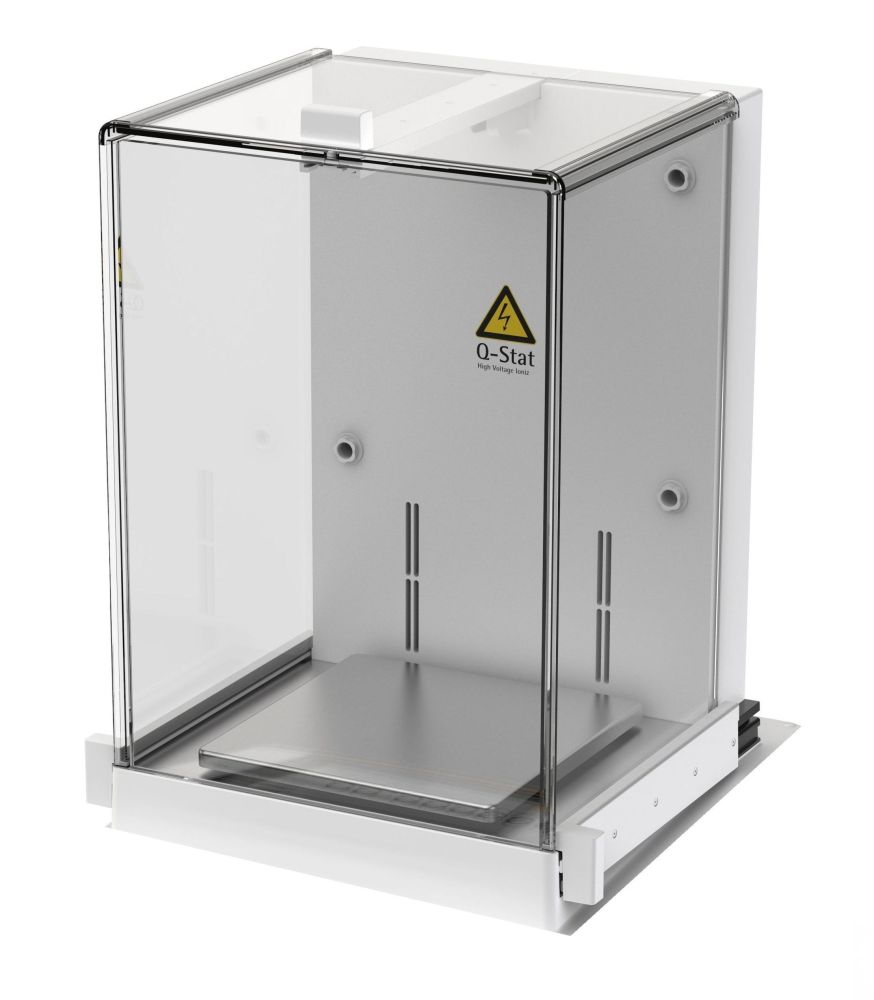

  • Draft Shield I:


    • Automatic, glass

    • Chamber height: 250 mm (9.8")

    • Learning capability

    • Integrated ionizer to eliminate electrostatic charges

    • Weighing modules: precision with 1 mg readability, and 5202S

    • Pan size: 140 x 140 mm


Sartorius MCE5203P-2S00-I Cubis II Precision Complete Balance, 1200/2400/5200 g x 1/2/5 mg

Details

The modular weighing system Cubis® II can be individually configured from different components. The ability to combine the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 μg to 1 g provide the ideal model for every application.

Capacity x Readability 1200 g x 1 mg / 2400 g x 2 mg / 5200 g x 5 mg
Draft Shield Type Draft Shield I
  • Automatic, glass
  • Chamber height: 250 mm (9.8")
  • Learning capability
  • Integrated ionizer to eliminate electrostatic charges
  • Weighing modules: precision with 1 mg readability, and 5202S
  • Pan size: 140 x 140 mm
Repeatability at 5% Load Standard deviation of the load values, tolerance 1 mg
Standard deviation of the load values, typical value 0.6 mg
Repeatability Near Max Standard deviation of the load values, tolerance 1 mg
Standard deviation of the load values, typical value 0.6 mg
Linearity Deviation Tolerance 5 mg
Typical value 3 mg
Deviation When Load is Off-center, Positions According to OIML R76 Test Weight 2000 g
Tolerance 2 mg
Typical Value 1 mg
Sensitivity drift between +10 °C and +30 °C 1 ppm/K
Tare Maximum Capacity: Less Than 100% of Maximum Capacity Accuracy class according to Directive 2014/31/EU I
Verification scale interval (e) according to Directive 2014/31/EU 10 mg
Minimum load (Min) according to Directive 2014/31/EU 100 mg
Minimum Weight According to USP (United States Pharmacopeia), Chapter 41 Optimal minimum weight 820 mg
Typical minimum weight 1200 mg
Typical stabilization time 1 sec.
Typical measurement time 2 sec.
Recommended Calibration Weight External test load 5000 g
Accuracy class, according to OIML R111-1 E2
Dimensions Weighing module (L x W x H)* 425 mm x 240 mm x 122/284/373 mm
Weighing pan size 140 mm x 140 mm
Weight, approximately* 5.9/7.5/9.4/10.2 kg

* Depending upon weighing pan size, filter weighing pan and draft shield
