Sartorius MA35M-115US Infrared Moisture Analyzer, 35 g x 1 mg / 0.01%

Item #MA35M-115US

Be the first to review this product

25%off

Availability: In stock

List Price: $3,150.00

Now: $2,362.50

You Save $787.50
Free Shipping
on this product
Accessories
  • Data Printer, with statistics and time/date functions, includes cable (SART-PN YDP20-0CE) (PN ) SKU: $1,490.00
  • High performance disposable pans, 80 pcs (SART-PN 6965542) (PN ) SKU: $75.30
  • Standard thermal lab printer (SART-PN YDP40) (PN ) SKU: $1,190.00
  • Data cable mini USB / RS-232 9-pin female (SART-PN YCC03-D09) (PN ) SKU: $71.80
  • Premium GLP lab printer (SART-PN YDP30) (PN ) SKU: $1,870.00
  • Disposable pans, 200 pcs (SART-PN 69TC0479) (PN ) SKU: $119.00
  • Filter pads, 4", 200 pc (SART-PN 69MA0325) (PN ) SKU: $51.90
  • High grade filter pads, 4", 200 pc (SART-PN 69MA0327) (PN ) SKU: $69.60
  • Tongs for removing pans (SART-PN YST01MA) (PN ) SKU: $58.30
  • Temperature calibration disk for MA Series (SART-PN YTM15MA) (PN ) SKU: $1,360.00
Overview

  • Maximum weighing capacity of 35 g with 1 mg resolution

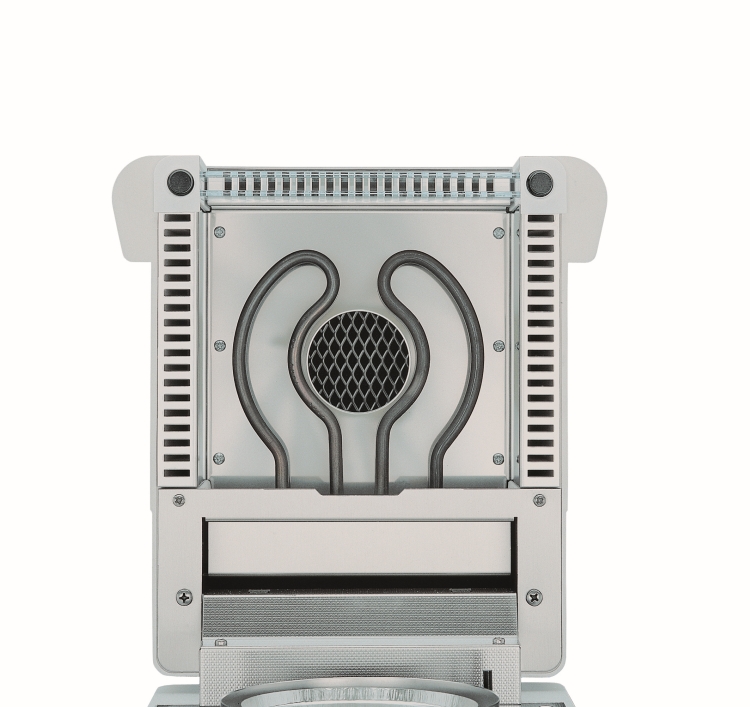

  • Heating of a sample by two powerful metal tubular-shaped heating elements (also called dark radiators)

  • Uniform distribution of the heat rays using an integrated reflector

  • Choice of two modes for end-point determination of a measurement: fully automatic and timer modes

  • Special version for compliance with FDA/HACCP regulations (no glass components)

  • Time-saving and convenient alternative to a drying oven

  • Utmost measurement accuracy and durability

  • Ideally suited for robust production applications

  • Simple operator guidance using self-explanatory pictograms

Sartorius MA35M-115US Infrared Moisture Analyzer, 35 g x 1 mg / 0.01%

Details

The MA35 is the basic model for quick and reliable analysis of the material moisture of liquid, pasty and solid substances using the thermogravimetric method.

The compact and rugged design, combined with great precision and measurement accuracy, make the MA 35 the ideal device for uniform measuring tasks. Sartorius’s decades of experience in the area of moisture analysis guarantees quick and reliable measurement results and high user-friendliness.

Maximum weighing capacity 35 g
Typical Reproducibility of the Weighing System

From around 1 g of weight of sample taken: ± 0.2%

From around 5 g of weight of sample taken: ± 0.05%
Readability 1 mg, 0.01%
Measurement Display % moisture, % dry mass, % ATRO, g residue
Typical sample quantity 5 - 15 g

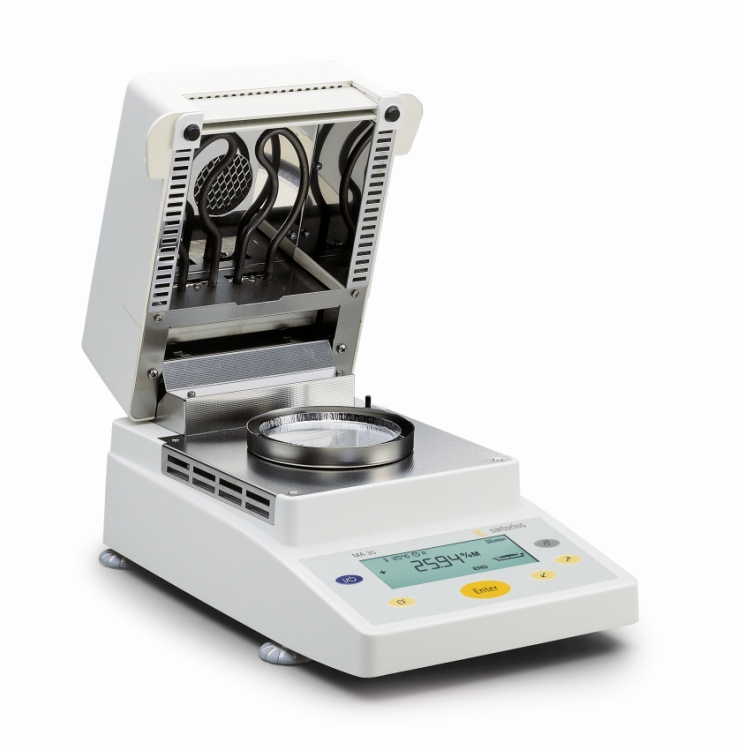

Access to the Sample Compartment

- by lifting top with wide opening angle

- with viewing window
Windscreen Integrated windscreen
Switch-off Criterion Optional: full automatic, manual switch-off, allotted time 0.1 - 99 min.
Heating Program Standard drying
Measurement Program The device is power failure-proof, so one program can be saved (parameter freely selectable)
Temperature range and settings 40°C - 160° C, in increments of 1 degree Celsius
Sample Heating Uniform with an Infrared dark radiator (metal tubular-shaped heating elements)
Measured Value Storage Results are safely stored until the start of the next measurement
Log printout

- Non-adjustable GLP log for measurement results / Calibration / Adjustment

- Paper-saving brief log for measurement results

- An optionally available external printer is used for the printout (YDP20 | YDP30)
Inspection Equipment Monitoring External calibration by means of optionally available calibration weights; temperature adjustment using an optional adjustment set
Language Selection English, German, French, Spanish, Italian, Russian
Data interface RS232 C-S/V24-V28, 7 Data-bit (ASCII) 1 Parity-bit
Network Frequency 50 / 60 Hz
Power Consumption Max. 400 VA
Pan Size 3.5" (90 mm) diameter
Housing dimensions (D x W x H) 14.4" x 8.8" x 7.5" (366 mm x 224 mm x 191 mm)
Weight (approximately) 5.8 kg
