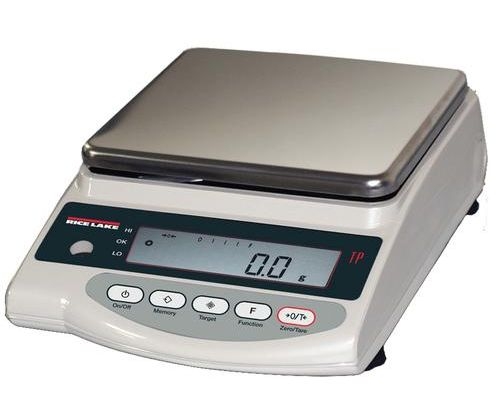

Rice Lake Weighing TP-8200 TP Series Tuning Fork Precision Balance, 8200 g x 0.1 g
Rice Lake Weighing TP-8200 TP Series Tuning Fork Precision Balance, 8200 g x 0.1 g

Rice Lake Weighing TP-8200 TP Series Tuning Fork Precision Balance, 8200 g x 0.1 g

107247
Be the first to review this product
16%off

Availability: In Stock

List Price: $1,201.00

Now: $1,008.00

You Save $193.00

Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • Rechargeable battery for TC-4200, TC-6200; TP-3200, TP-8200, TP-12K (RLW-PN 107237) SKU: 107237 $121.00
  • In-use dust cover for TC or TP Series, 2200 g to 12 kg (RLW-PN 107250) SKU: 107250 $30.00
  • Underweigh hook for TC or TP Series, 2200 g to 12 kg (RLW-PN 109292) SKU: 109292 $30.00
  • 115VAC adapter, 12 VDC (RLW-PN 42566) SKU: 42566 $76.00
  • WinWedge Tal software (RLW-PN 75351) SKU: 75351 $345.00
  • 5-pin DIN to DB9F RS-232 cable (RLW-PN 115303) SKU: 115303 $111.00
Overview
  • External weight calibration
  • Large, 16.5 mm-high, backlit liquid crystal display (LCD)
  • Selectable modes: weight, unit count and percentage
  • 12 units of measurement
  • Mono-metal tuning fork sensor (MMTF) provides quick response and stability
  • 20-step bar graph display
  • 115 VAC adapter included (230 VAC optional)
  • Rechargeable battery available separately
  • One part in 620,000 resolution
  • RS-232 bidirectional
  • Plastic housing on models <1000 g, plastic top and die cast bottom on models >1000 g

The simple, straightforward design of Rice Lake’s TP Series creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.

Capacity 8200 g
Resolution 0.1 g
Operating Modes Count, percentage, limit function (checkweighing)
Repeatability 1 division
Linearity 1 division
Operating Temperature 41°F to 95°F (5°C to 35°C)
Pan Size 7" x 6.2" (177.8 mm x 157.5 mm)
Dimensions 10.1" x 7.5" x 3.4" (265 mm x 192 mm x 87 mm)
RS-232 Specifications Baud rate - 1200/2400/4800/9600; Data bits - 8; Connector - DIN 5-pin
Power 120 VAC adapter
Warranty Five-year limited warranty
