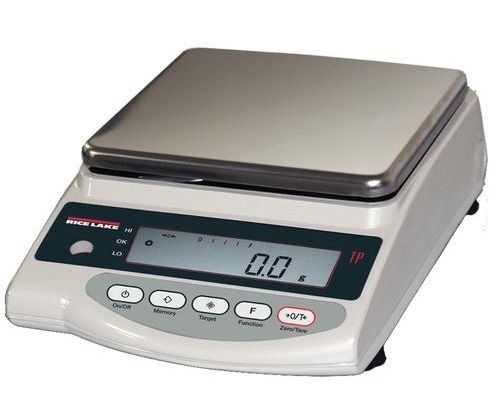

Rice Lake Weighing TP-820 TP Series Tuning Fork Precision Balance, 820 g x 0.01 g

Item #107245

Be the first to review this product

16%off

Availability: In stock

List Price: $1,166.00

Now: $979.00

You Save $187.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Toploading Balance - $90.00
Accessories
  • In-use dust cover for TC or TP Series, 220 g to 1200 g (RLW-PN 107240) (PN 107240) SKU: 107240 $30.00
  • Underweigh hook for TS, TC or TP Series, 220 g to 1200 g (RLW-PN 109236) (PN 109236) SKU: 109236 $30.00
  • 115VAC adapter, 12 VDC (RLW-PN 42566) (PN 42566) SKU: 42566 $76.00
  • WinWedge Tal software (RLW-PN 75351) (PN 75351) SKU: 75351 $345.00
  • 5-pin DIN to DB9F RS-232 cable (RLW-PN 115303) (PN 115303) SKU: 115303 $111.00
  • Rechargeable battery for TP-220, TP-820 (RLW-PN 107249) (PN 107249) SKU: 107249 $121.00
Overview

  • External weight calibration

  • Large, 16.5 mm-high, backlit liquid crystal display (LCD)

  • Selectable modes: weight, unit count and percentage

  • 12 units of measurement

  • Mono-metal tuning fork sensor (MMTF) provides quick response and stability

  • 20-step bar graph display

  • 115 VAC adapter included (230 VAC optional)

  • Rechargeable battery available separately

  • One part in 620,000 resolution

  • RS-232 bidirectional

  • Plastic housing on models <1000 g, plastic top and die cast bottom on models >1000 g

Rice Lake Weighing TP-820 TP Series Tuning Fork Precision Balance, 820 g x 0.01 g

Details

The simple, straightforward design of Rice Lake’s TP Series creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.

Capacity 820 g
Resolution 0.01 g
Operating Modes Count, percentage, limit function (checkweighing)
Repeatability 1 division
Linearity 1 division
Operating Temperature 41°F to 95°F (5°C to 35°C)
Pan Size 6.6" x 5.5" (167.6 mm x 139.7 mm)
Dimensions 9.2" x 7.1" x 2.9" (235 mm x 182 mm x 75 mm)
RS-232 Specifications Baud rate - 1200/2400/4800/9600; Data bits - 8; Connector - DIN 5-pin
Power 120 VAC adapter
Warranty Five-year limited warranty
