Details

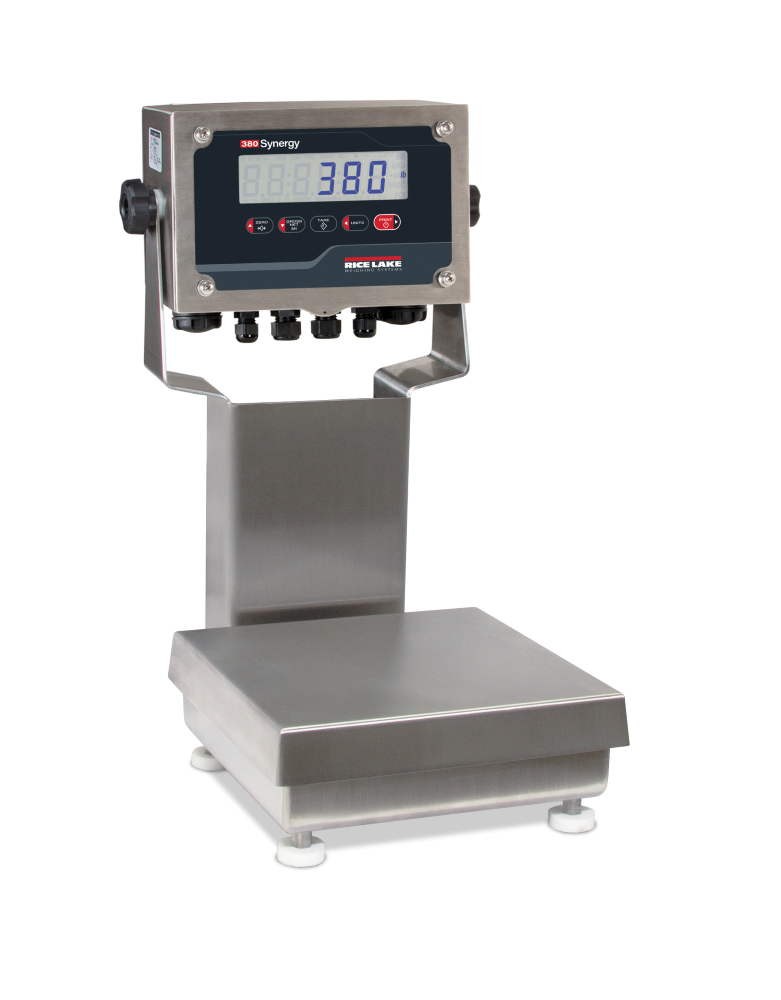

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with the 380 basic digital weight indicator to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.
| CW-90XB Specifications | |
|---|---|
| Platform Dimensions | 12" x 12" x 4.25" |
| Platform Capacity | 50 lb |
| Construction | 304 stainless steel |
| Load Cell | IP69K, stainless steel hermetically sealed |
| Maximum Overload | 180 to 200%, depending on capacity |
| Overload Protection | Five-point, independently adjusted |
| Cable Length | 34 inches |
| Approvals |
NTEP CC 95-072, Class III 5,000 d Load cell is FM approved |

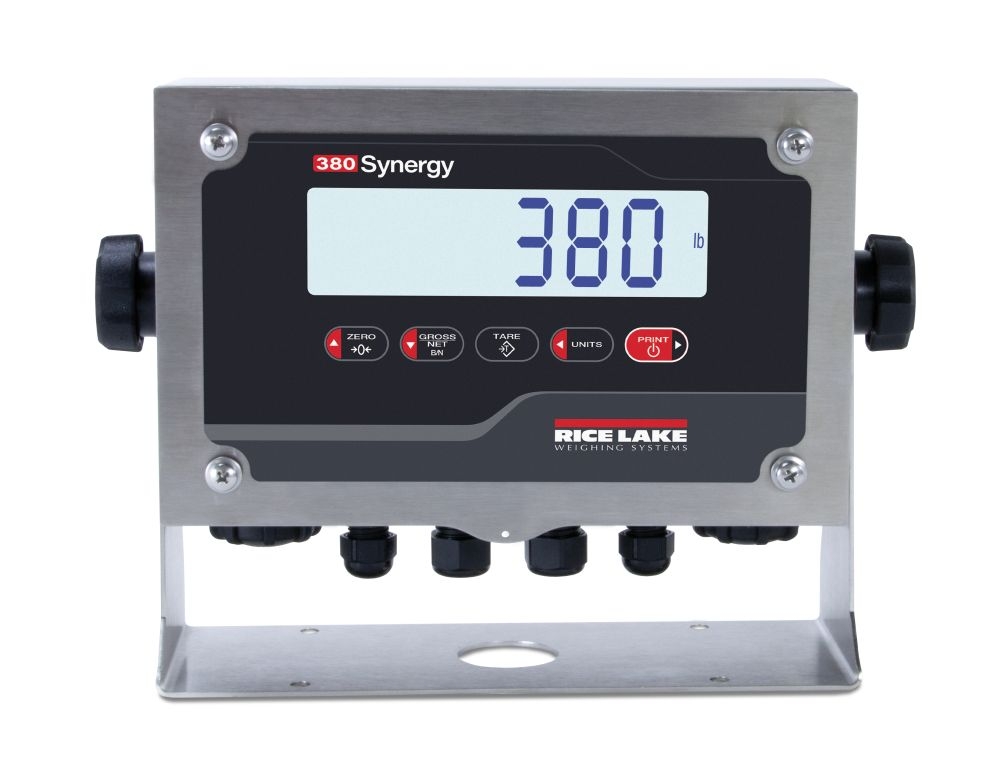

| 380 Synergy Indicator | |
| Capacity x Resolution | 50 lb x 0.01 lb |
| Display | Six 1" (25 mm) tall, LCD digits |
| Power |
Battery: 4 alkaline "C" cell (not included) Battery life (approximately): 100 hours with 1 x 350 ohm load cell, no backlight; 45 hours with 4 x 350 ohm load cells, low backlight; 20 hours with 8 x 350 ohm load cells, low backlight Optional: 115/230 VAC to 12 VDC adapter (available separately) |
| Communication Ports |
One RS-232 full duplex (three-wire) One USB 2.0 |
| Keys/Buttons | 5 tactile buttons |
| Status Annunciators | g, lb, t , tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
| Rating/Material | Enclosure: IP66, 304 stainless steel |
| Approvals | NTEP CC 21-051, Class III/IIIL, 10000d |
