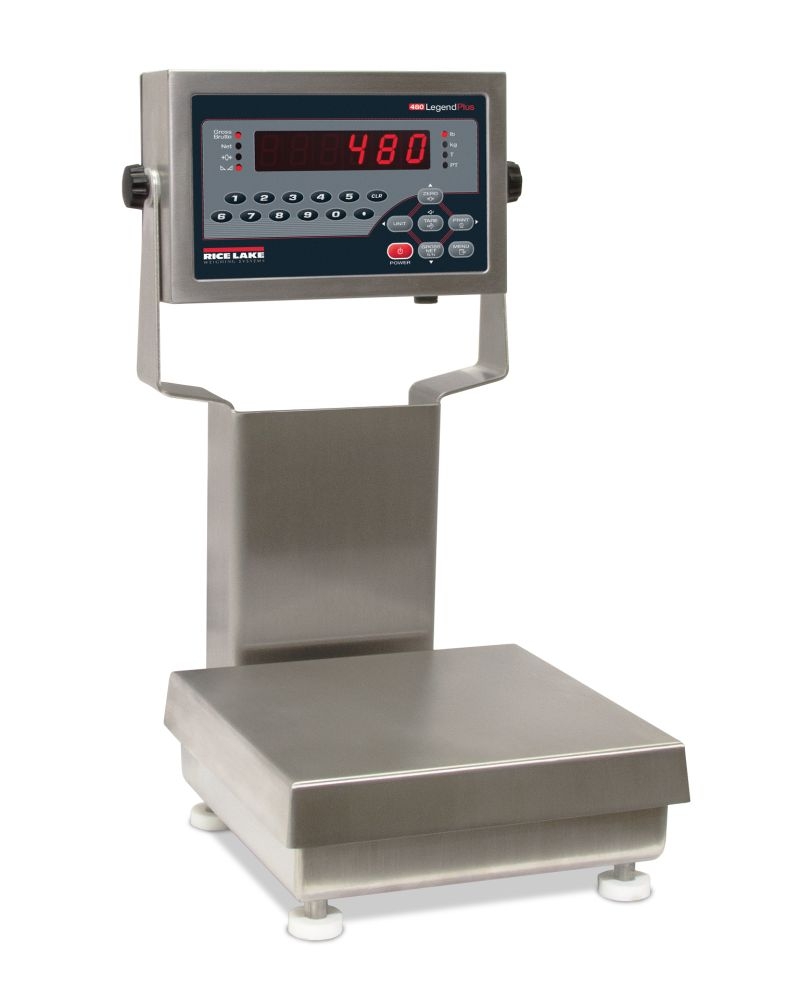

Rice Lake Weighing Ready-n-Weigh System CW-90XB Bench Scale with 480 Plus indicator, 100 lb capacity, 12" x 12" platform, NTEP approved

Item #201253

Be the first to review this product

16%off

Availability: In stock

List Price: $2,302.00

Now: $1,934.00

You Save $368.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $95.00
Overview

  • Package includes scale with IP69K stainless steel environmentally sealed load cell with an indicator and 12-inch column

  • Factory calibrated, with indicator setup and configured for 5,000 divisions

  • Scale includes rubber feet and removable top cover

  • AC power

  • LED display

  • Battery backed time and date

  • Standard RS-232 serial ports

  • Numeric keypad

  • NTEP Approved

Rice Lake Weighing Ready-n-Weigh System CW-90XB Bench Scale with 480 Plus indicator, 100 lb capacity, 12" x 12" platform, NTEP approved

Details

The CW-90XB Bench and Indicator System is a complete bench scale and indicator package. Pair the CW-90XB platform with one of our select digital weight indicators for a system used for general purpose weighing, straightforward automation and a wide range of applications. Each bench scale system includes a column and arrives factory calibrated for quick setup.

CW-90XB Specifications
Platform Dimensions 12" x 12" x 4.25"
Platform Capacity 100 lb
Construction 304 stainless steel
Load Cell IP69K, stainless steel hermetically sealed
Maximum Overload 180 to 200%, depending on capacity
Overload Protection Five-point, independently adjusted
Cable Length 34 inches
Approvals

NTEP CC 95-072, Class III 5,000 d

Load cell is FM approved

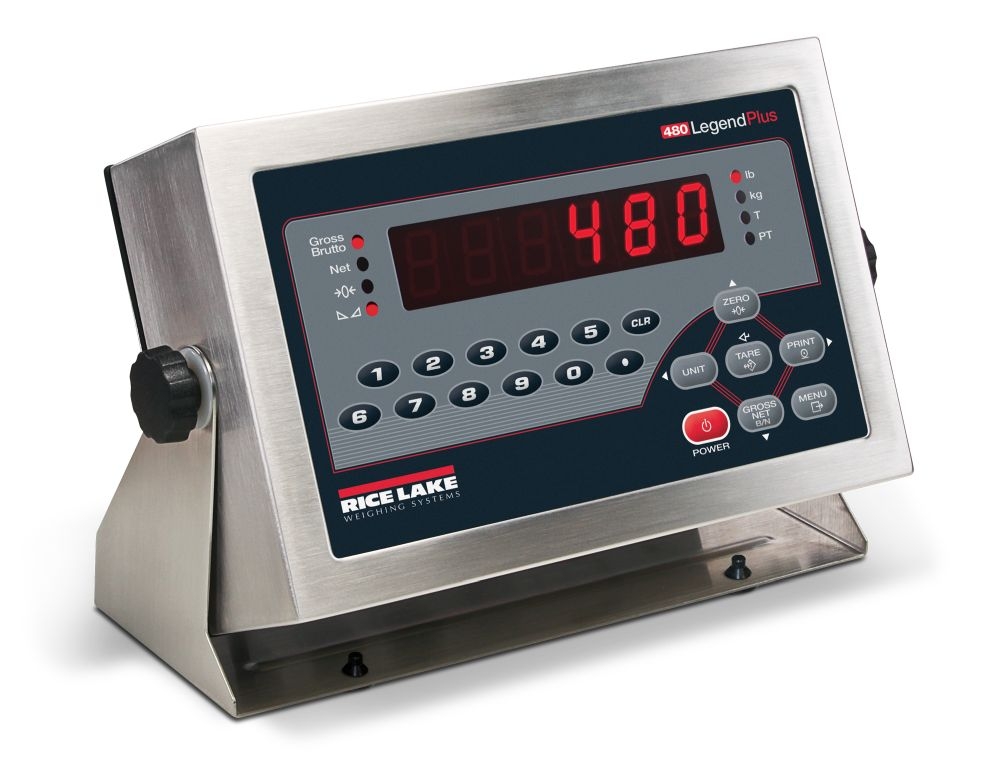

480 Plus Legend Indicator
Capacity x Resolution 100 lb x 0.02 lb
Display LED, 0.8" (20 mm) six-digit, seven-segment
Power

Line voltage: 100-240 VAC

Frequency; 50-60 Hz

DC voltage: n/a

Power consumption: 8 W
Communication Ports

Com 1: RS-232 full duplex

Com 2: RS-232 full duplex or 20 mA simplex, continuous

Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd, or no parity
Keys/Buttons Numeric keypad, flat membrane panel, embossed keys, tactile feel
Status Annunciators Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Rating/Material Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals NTEP CC 12-123, Class III/IIIL, 10000d
