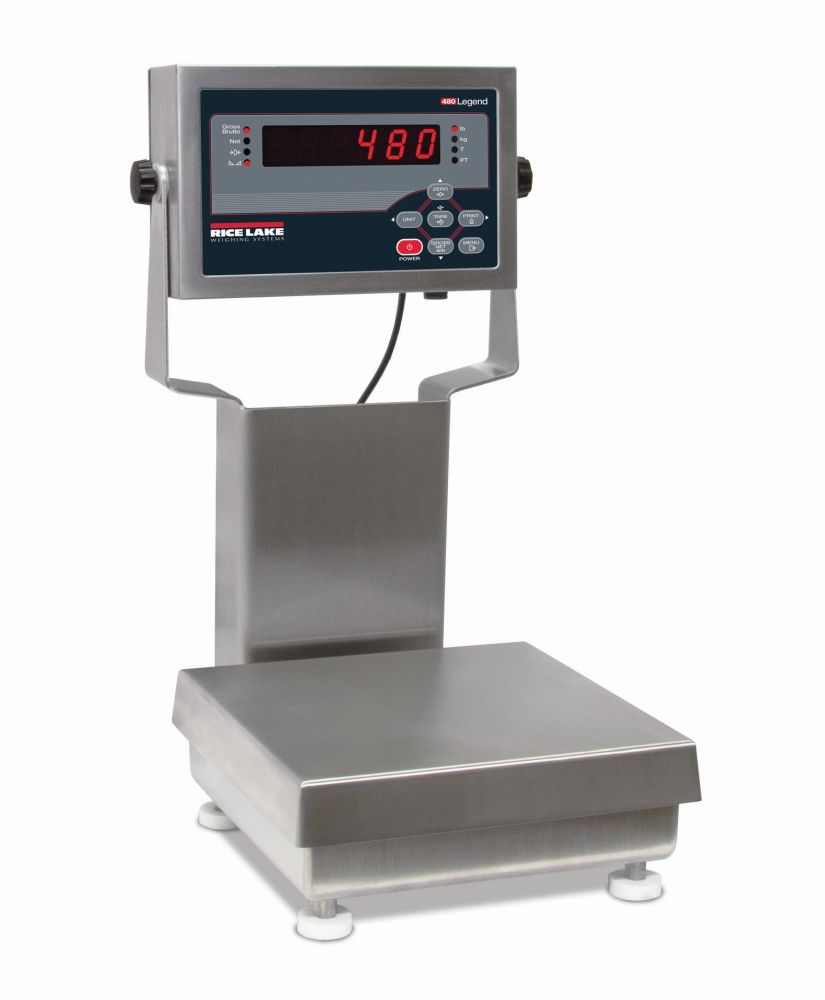

The CW-90XB Bench and Indicator System is a complete bench scale and indicator package. Pair the CW-90XB platform with one of our select digital weight indicators for a system used for general purpose weighing, straightforward automation and a wide range of applications. Each bench scale system includes a column and arrives factory calibrated for quick setup.
| CW-90XB Specifications | |
|---|---|
| Platform Dimensions | 12" x 12" x 4.25" |
| Platform Capacity | 50 lb |
| Construction | 304 stainless steel |
| Load Cell | IP69K, stainless steel hermetically sealed |
| Maximum Overload | 180 to 200%, depending on capacity |
| Overload Protection | Five-point, independently adjusted |
| Cable Length | 34 inches |
| Approvals |
NTEP CC 95-072, Class III 5,000 d Load cell is FM approved |

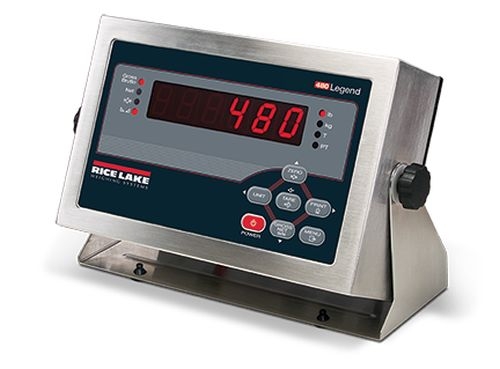

| 480 Legend Indicator | |
| Capacity x Resolution | 50 lb x 0.01 lb |
| Display | LED, 0.8" (20 mm) six-digit, seven-segment |
| Power |
Line voltage: 100-240 VAC Frequency; 50-60 Hz DC voltage: n/a Power consumption: 8 W |
| Communication Ports |
Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd, or no parity |
| Keys/Buttons | Flat membrane panel, embossed keys, tactile feel |
| Status Annunciators | Gross, net, center of zero, standstill, lb, kg, tare, preset tare |
| Rating/Material | Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel |
| Approvals | NTEP CC 12-123, Class III/IIIL, 10000d |
