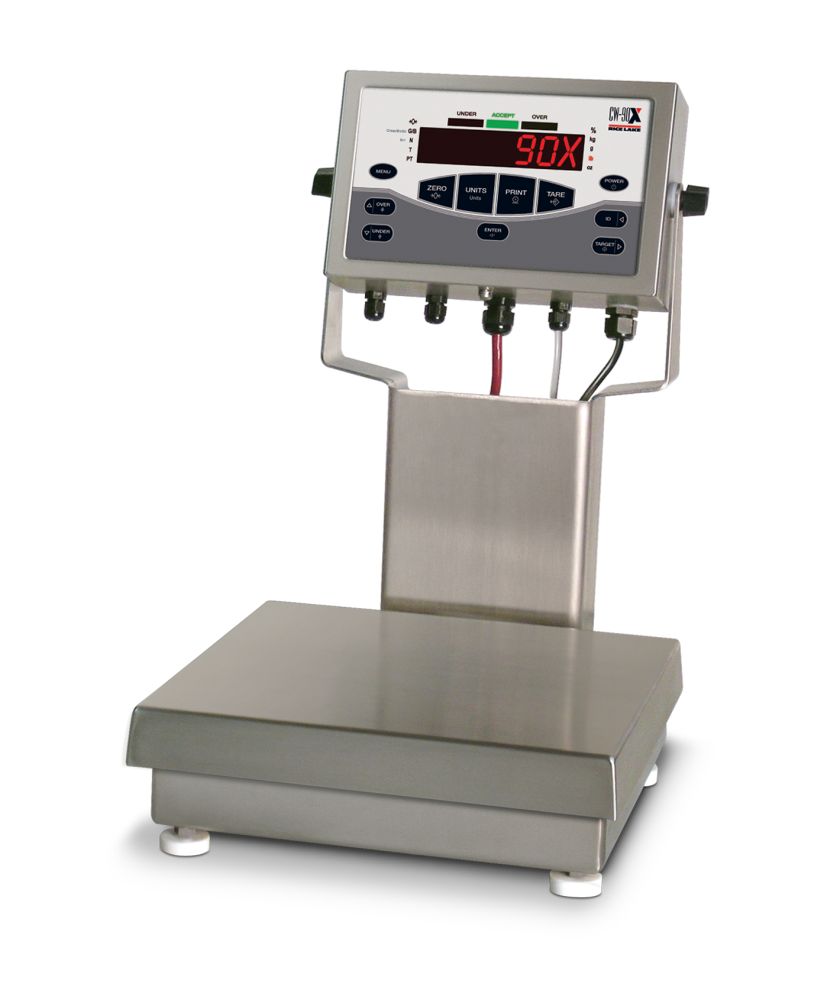

Rice Lake Weighing CW-90X Series Washdown Over/Under Checkweigher, 2.5 kg x 0.0005 kg, 10" x 10" platform, 230VAC, NTEP approved

Item #118899

Be the first to review this product

16%off

Availability: In stock

List Price: $2,197.00

Now: $1,845.00

You Save $352.00
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $100.00
Accessories
  • USB Cable, Type A to mini-B, 1 meter (RLW-PN 95357) (PN 95357) SKU: 95357 $11.00
  • Fiber optic, duplex cable 100 ft (RLW-PN 78026) (PN 78026) SKU: 78026 $175.00
  • Fiber optic cutter (RLW-PN 80892) (PN 80892) SKU: 80892 $12.00
  • WeighVault™ for CW-90/90X, requires part number 77142 or 108671 (RLW-PN 117358) (PN 117358) SKU: 117358 $265.00
  • Firmware download cable, RS-232 5-Wire DB-9F to stripped and tinned leads, for CW-90/90X (RLW-PN 171968) (PN 171968) SKU: 171968 $39.00
  • Ethernet TCP/IP interface option for CW-90, CW-90X (RLW-PN 200578) (PN 200578) SKU: 200578 $440.00
  • Wireless LAN card RS232/Wi-Fi 802.11 A/B 10/100 XPico; for CW-90/90X, 720i, 820i, iQube2 (RLW-PN 206272) (PN 206272) SKU: 206272 $610.00
Overview

  • NTEP approved

  • Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER

  • 304 stainless steel, IP69K rated indicator

  • PreVent breather vent

  • Storage for up to 50 IDs

  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)

  • High-Intensity LED display

  • Battery backed time and date

  • Two full duplex RS-232 serial ports

  • Configurable print formats

  • Audit trail tracking

  • Optional communications: Ethernet, USB or Fiber Optic

  • Four configurable Digital I/O

  • Reflash memory to upgrade firmware

  • Auto print capability

  • Scale:


    • IP69K, stainless steel, hermetically sealed load cell

    • 304 stainless steel

    • Five point overload protection


Rice Lake Weighing CW-90X Series Washdown Over/Under Checkweigher, 2.5 kg x 0.0005 kg, 10" x 10" platform, 230VAC, NTEP approved

Details

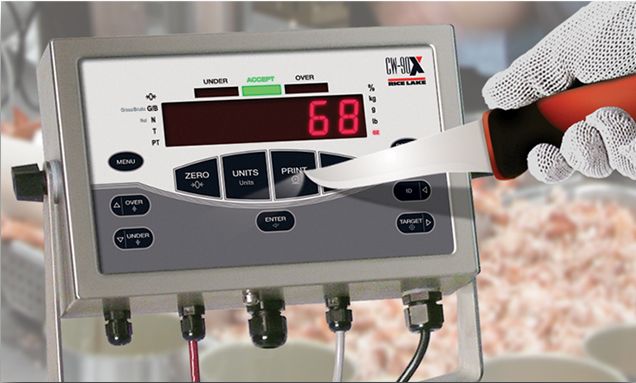

For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X digital weight indicator. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.

The configuration menu of the CW-90X is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator's needs. The CW-90X will store detailed information for up to 50 separate IDs (expandable with WeighVault), allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

Capacity x Readability

5 lb x 0.001 lb

2.5 kg x 0.0005 kg

80 oz x 0.02 oz
Power - AC Line voltage: 230 VAC; frequency: 50/60 Hz, NEMA 5-15 plug
Power Consumption 0.75A at 230 VAC (8 W)
Measurement Rate 960, 480, 240, 120, 60, 30, 15, 7.5 per second
System Linearity ±0.01% full scale
Digital I/O Four channels on CPU board
Circuit Protection RFI, EMI, ESD protection
Display Large 0.8" (20 mm), 14 segment, six digit high-intensity red LED display
Status Annunciators Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion
Operating Temperature Legal: 14°F to 104°F (-10°C to 40°C)
Rating/Material IP69K, stainless steel
Display Resolution 100,000 graduations maximum
Load Cell IP69K, stainless steel, hermetically sealed
Platform Dimensions 10" x 10" x 4.25"
Column Height 12"
Approvals Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF
