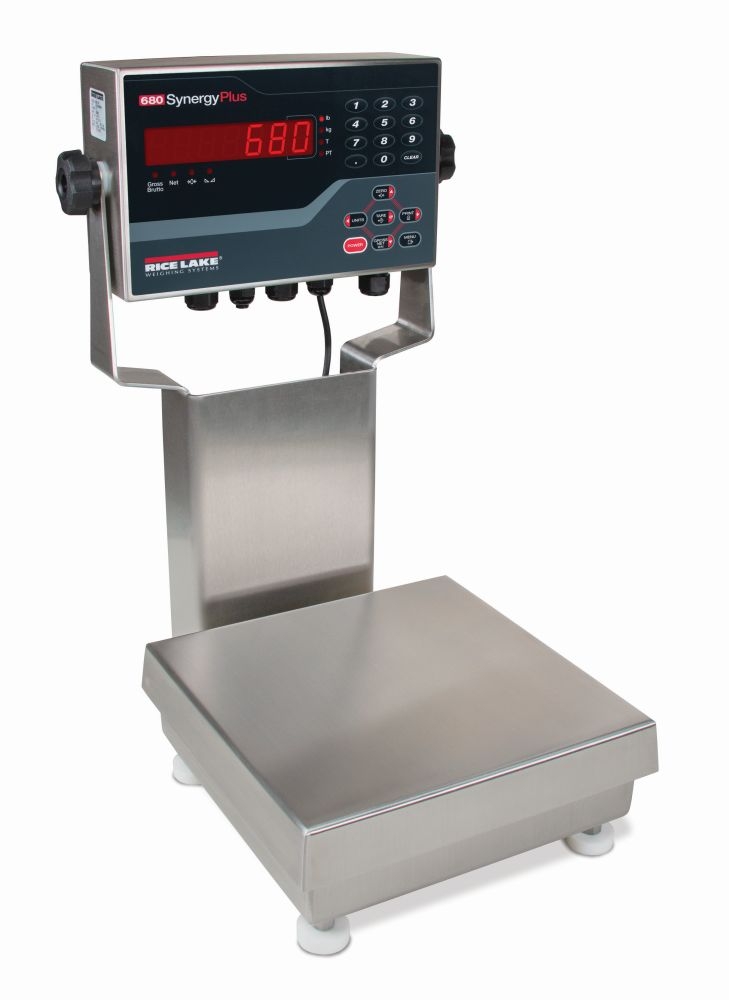

Rice Lake Weighing Ready-n-Weigh System CW-90B Bench Scale with 680 Synergy indicator, 50 lb capacity, 12″ x 12″ platform, NTEP approved

The CW-90B Bench and Indicator System is a complete bench scale and indicator package. Pair the CW-90B platform with one of our select digital weight indicators for a system used for general purpose weighing, straightforward automation, and a wide range of applications. Each bench scale system includes a column and arrives factory calibrated for quick setup.

CW-90B Specifications
Platform Dimensions	12" x 12" x 4.25"
Platform Capacity	50 lb
Construction	304 stainless steel
Load Cell	IP67 aluminum, environmentally sealed
Maximum Overload	180 to 200%, depending on capacity
Overload Protection	Five-point, independently adjusted
Cable Length	34 inches
Approvals	NTEP CC 95-072, Class III 5,000 d Load cell is cFMus
680 Synergy Indicator
Capacity x Resolution	50 lb x 0.01 lb
Display	LED, seven 0.8" (20 mm) tall, seven-segment digits
Power	Line voltage: 100-240 VAC Frequency; 50-60 Hz Power consumption: ~ 2 W (AC) with one 350 ohm load cell, 15W max
Communication Ports	Two RS-232 (three-wire) RS-485/422 (five-wire) Micro USB (device) Ethernet TCP/IP (10/100)
Keys/Buttons	Flat membrane panel, tactile feel (18 buttons plus ON/OFF)
Status Annunciators	Eight LED annunciators
Rating/Material	IP69K; IP66 with RJ45; AISI 304 stainless steel
Approvals	NTEP CC 19-021, Class III/IIIL, 10000d
