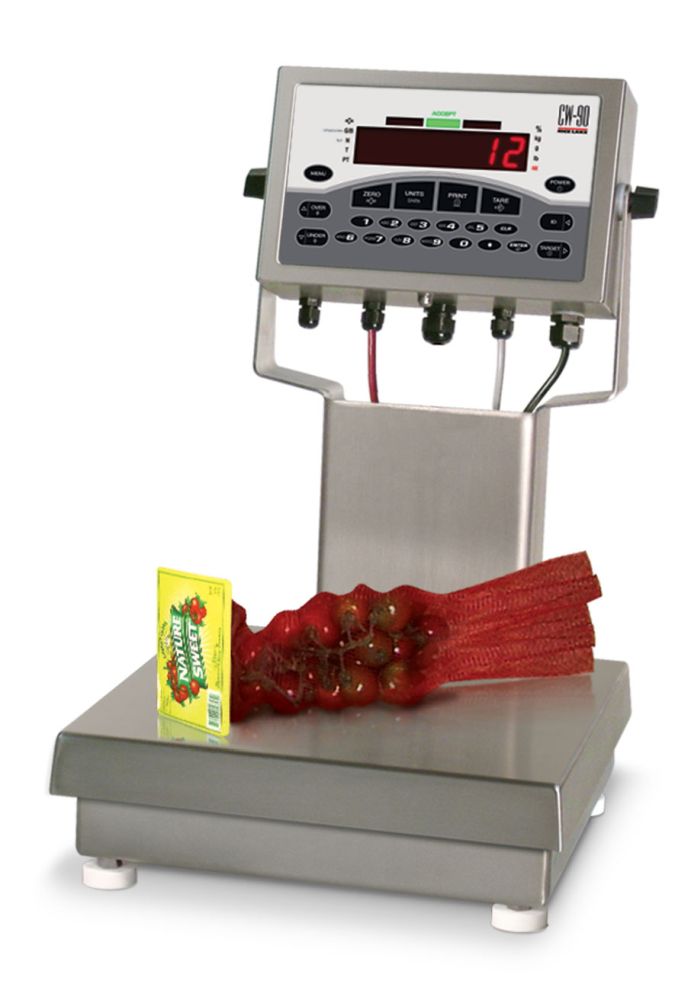

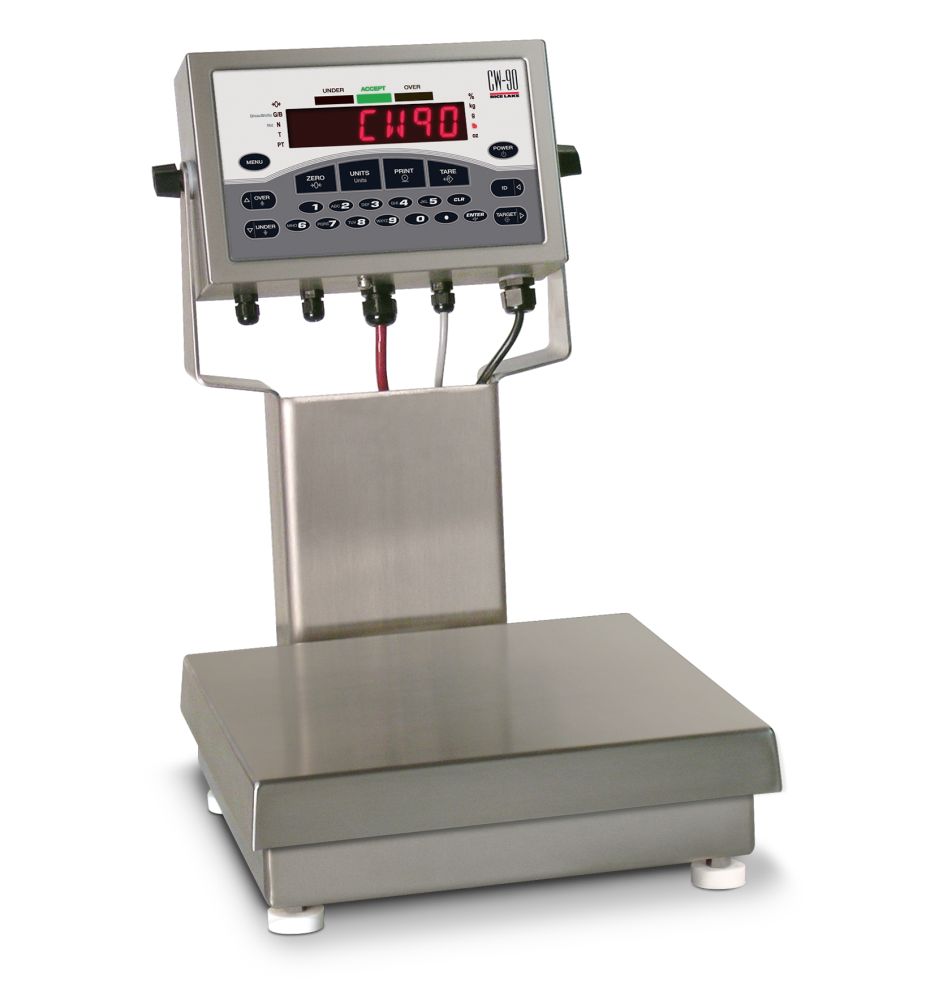

Rice Lake's CW-90 checkweigher is designed to help speed up your weighing process and reduce production downtime, two critical factors to your company's bottom line. Ease of use, real-time data collection, and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is competitively priced for all light industrial settings.
Easy to Configure: The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator's needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

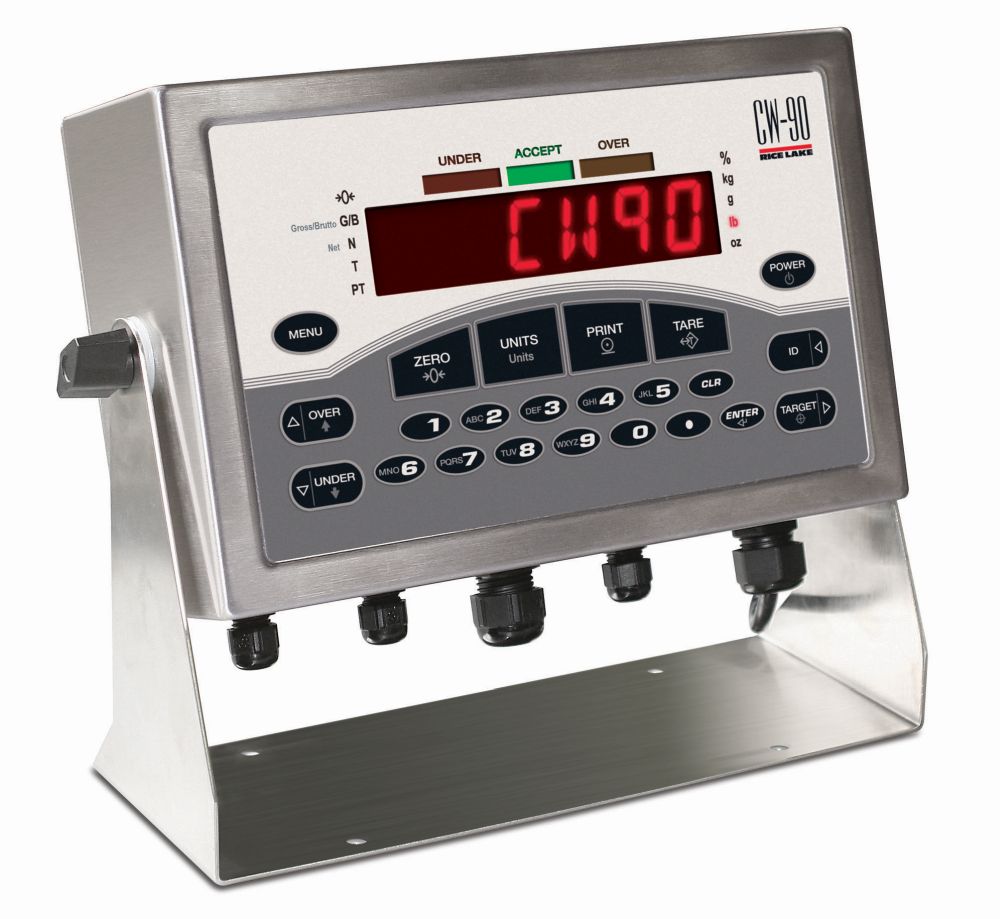

Simple to Maintain: The CW-90 has kept things simple to meet the needs of today's lean manufacturers. Use this checkweigher by easily watching the over/under lights. Program the unit with specified weight limits and a red light will display an underweight condition, yellow for over, and green when a target weight is reached. Rice Lake's CW-90 will help error-proof your production process and achieve your productivity goals
Capacity x Readability |
100 lb x 0.02 lb 50 kg x 0.01 kg 1600 oz x 0.5 oz |
---|---|
Power - AC | Line voltage: 230 VAC; frequency: 50/60 Hz |
Power Consumption | 0.75A at 230 VAC (8 W) |
Measurement Rate | 960, 480, 240, 120, 60, 30, 15, 7.5 per second |
System Linearity | ±0.01% full scale |
Digital I/O | Four channels on CPU board |
Circuit Protection | RFI, EMI, ESD protection |

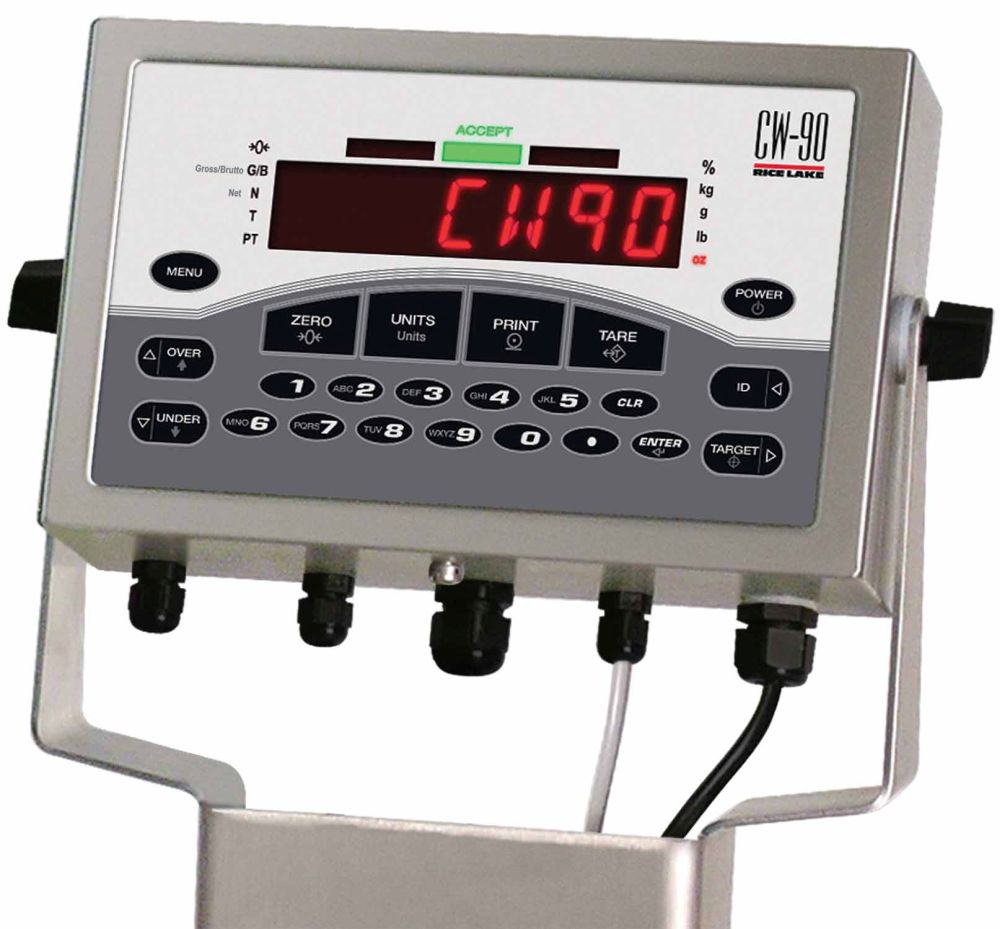

Display | Large 0.8" (20 mm), 14 segment, six digit high-intensity red LED display |
Status Annunciators | Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion |
Operating Temperature | Legal: 14°F to 104°F (-10°C to 40°C) |
Rating/Material | IP66, stainless steel |
Display Resolution | 100,000 graduations maximum |
Load Cell | Aluminum, environmentally sealed |
Platform Dimensions | 12" x 12" x 4.25" |
Column Height | 12" |
Approvals | Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d Measurement Canada AM-5710, Class III 10,000 d OIML R76/2006-GBI-10.02 TC GB-1385 TAC UK2900 UL and CUL listed CE marked Scale: NTEP CC 95-072, Class III 5,000 d Measurement Canada AM-5082, Class III 5,000 d NSF |
