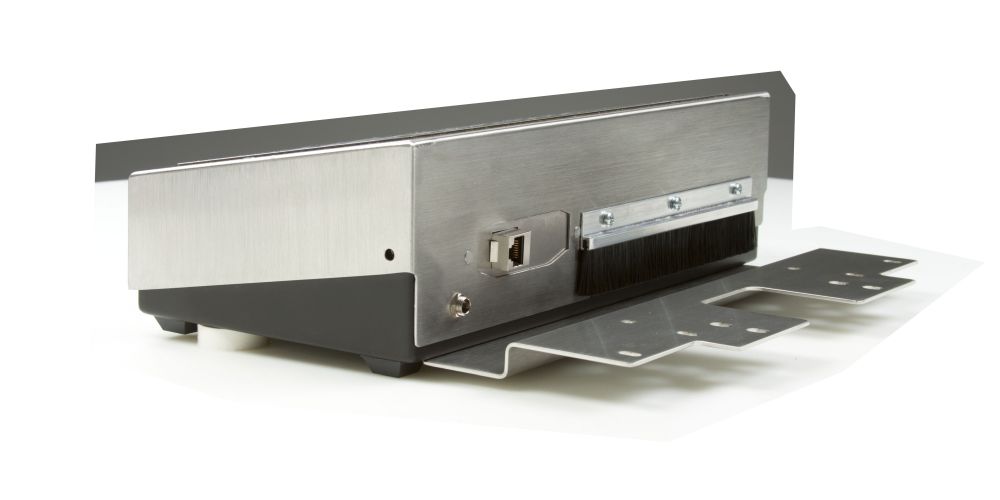

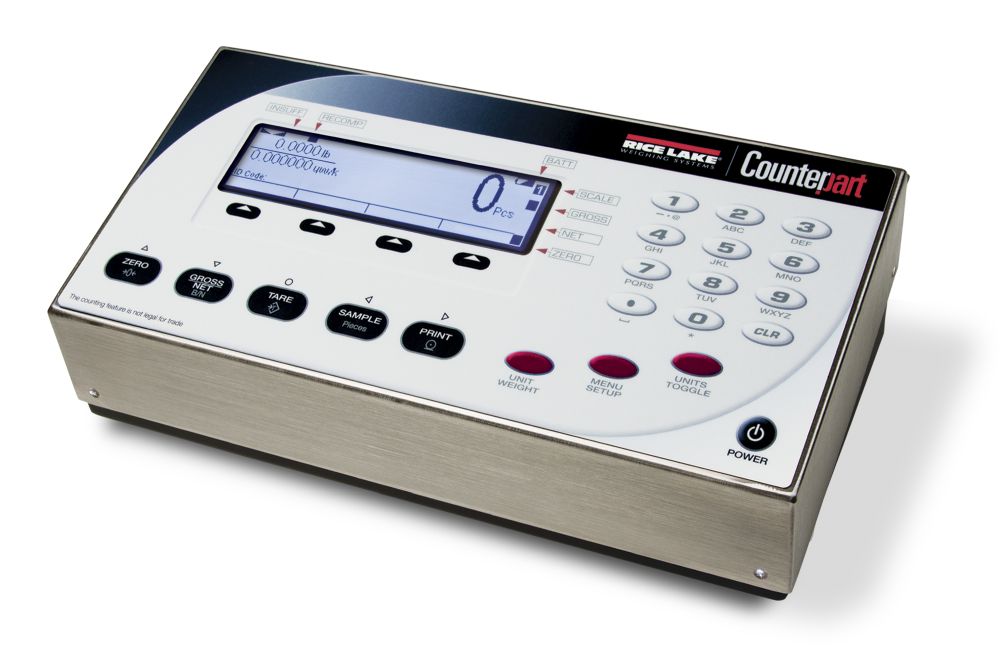

Rice Lake Weighing Counterpart Single Channel Indicator (indicator only), NTEP approved (RLW-PN 118788)

Item #118788

Be the first to review this product

16%off

Availability: In stock

List Price: $1,050.00

Now: $882.00

You Save $168.00
Accessories
  • Operator's manual for Counterpart Indicator (RLW-PN 118677) (PN 118677) SKU: 118677 $26.50
  • QWERTY keyboard, USB interface, requires PN 130537 USB interface option, for Counterpart (RLW-PN 179211) (PN 179211) SKU: 179211 $47.50
  • GoDEX DT2x printer, 2" direct thermal, 203 dpi, 110/240VAC (RLW-PN 167515) (PN 167515) SKU: 167515 $365.00
  • Power supply, 12V, power cord sold separately, for Counterpart (RLW-PN 128063) (PN 128063) SKU: 128063 $58.00
  • Counterpart front mount bracket and mounting screws, for DIGI S-YC scales (RLW-PN 154700) (PN 154700) SKU: 154700 $53.00
  • USB for Counterpart, keyboard only (RLW-PN 130537) (PN 130537) SKU: 130537 $160.00
  • Datalogic Quickscan QD2131 scanner with RS-232 cable, stand, 9-pin quick connect - supplies power from Counterpart Digital I/O (RLW-PN 121495) (PN 121495) SKU: 121495 $390.00
  • Printer cable, DB9M to blunt male DB9 to blunt end cable, 5 ft, PINOUT: Black Pin-5, Red Pin-3, Green Pin-2 (RLW-PN 41276) (PN 41276) SKU: 41276 $77.00
  • Stand for Counterpart indicator, angled free standing for table top (RLW-PN 121501) (PN 121501) SKU: 121501 $84.00
  • Firmware download cable for Counterpart (RLW-PN 121474) (PN 121474) SKU: 121474 $37.00
  • Front mount bracket for BenchMark scales, S-XL bases (RLW-PN 121459) (PN 121459) SKU: 121459 $53.00
  • Connector, 14-pin Amphenol load cell, can be soldered to home run cable (RLW-PN 32375) (PN 32375) SKU: 32375 $21.00
  • WeighVault™ for Counterpart (RLW-PN 125546) (PN 125546) SKU: 125546 $265.00
  • Wireless LAN card Wi-Fi 802.11 A/B, optional kit, for Counterpart (RLW-PN 125495) (PN 125495) SKU: 125495 $600.00
  • Quick access 14-pin Amphenol cover plate, for Counterpart (RLW-PN 120767) (PN 120767) SKU: 120767 $15.75
  • Quick access 9-pin cover plate, for Counterpart (RLW-PN 125079) (PN 125079) SKU: 125079 $10.50
  • Ethernet quick access coverplate for Counterpart (RLW-PN 125062) (PN 125062) SKU: 125062 $21.00
  • Rechargeable lithium-ion battery option, for Counterpart (RLW-PN 124692) (PN 124692) SKU: 124692 $310.00
  • Power cord, for Counterpart, DMC-782 (RLW-PN 15438) (PN 15438) SKU: 15438 $25.00
  • Ethernet cross over cable, RJ45 to RJ45, 7ft (RLW-PN 78860) (PN 78860) SKU: 78860 $40.00
  • 14-pin Y cable, connects two remote DIGI bases (RLW-PN 53828) (PN 53828) SKU: 53828 $90.00
  • Direct thermal label, 2.25" W x 4.5" L, 1" core, 5" diameter, 600 labels/roll (RLW-PN 65617) (PN 65617) SKU: 65617 $17.50
Overview

  • AC operated (battery operation is optional)

  • LCD graphic transmissive display for indoor viewing

  • Lb/kg/oz/g weight display conversion

  • Single- or dual-channel models with serial scale input

  • Mix and match platforms with console

  • Four setpoint outputs for counting

  • Two RS-232 ports for connecting peripherals

  • Ethernet TCP/IP

  • Scanner input (RS-232)

  • PC software utility (Revolution®) for setup

  • 150 item memory

Details

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device - for parts of every shape and size.

Unlike traditional counting scales, Counterpart uses Rice Lake's simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

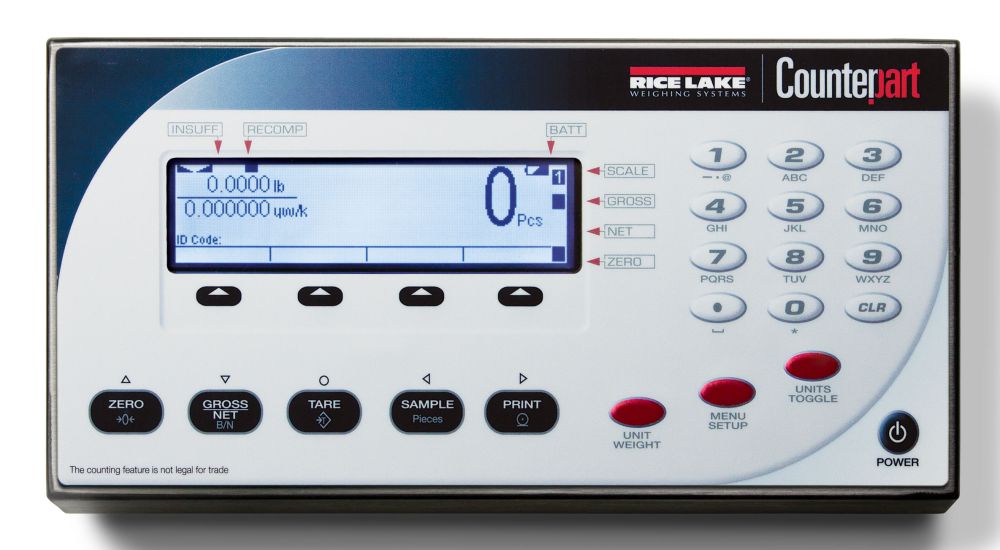

Rice Lake's new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right - zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

Power Source Input: 100-240 VAC, 47-63 Hz, 5 watts, U.S. power cord
Output: 9-12 V, 1.5 A max
Excitation Voltage 5VDC
Analog Signal Input Range 0-4.5 mV/V
Analog Specifications Grad minimum: .3 μV/grad
Input sensitivity: 1.5 μV/grad recommended
Zero adjustment range: 0-100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 x 350 Ω; 16 x 700 Ω
Scale channels: 1 or 2
Linearity: ±0.017 full scale
Circuit Protection RFI, EMI, ESD protection
Digital I/O Four
Display Viewing area: 240 x 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast
Keypad 24 buttons, full keypad-alpha numeric
Resolution

Internal: 1,000,000 counts

Display: up to 100,000

Communications and Setpoint Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output
Status Annunciators PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero
Units of Measure Pounds, grams, kilograms, ounces
Prints Standard EPL label format; format is changeable to work with virtually any printer
Optional Battery Type: Lithium ion
Charge time: 6 to 8 hours
Charge cycles: 400-1200
Estimated runtime: 24-32 hours with one 350 Ω load cell base
Operating Temperature 32°F to 104°F (0°C to 40°C)
Humidity 85%
Physical Dimensions (L x W x H) Indicator only: 12.25" x 6.25" x 4" (311.15 mm x 158.75 mm x 101.6 mm)
Warranty Two-year limited warranty
Approvals NTEP CC 12-110
CE
UL listed
Measurement Canada
