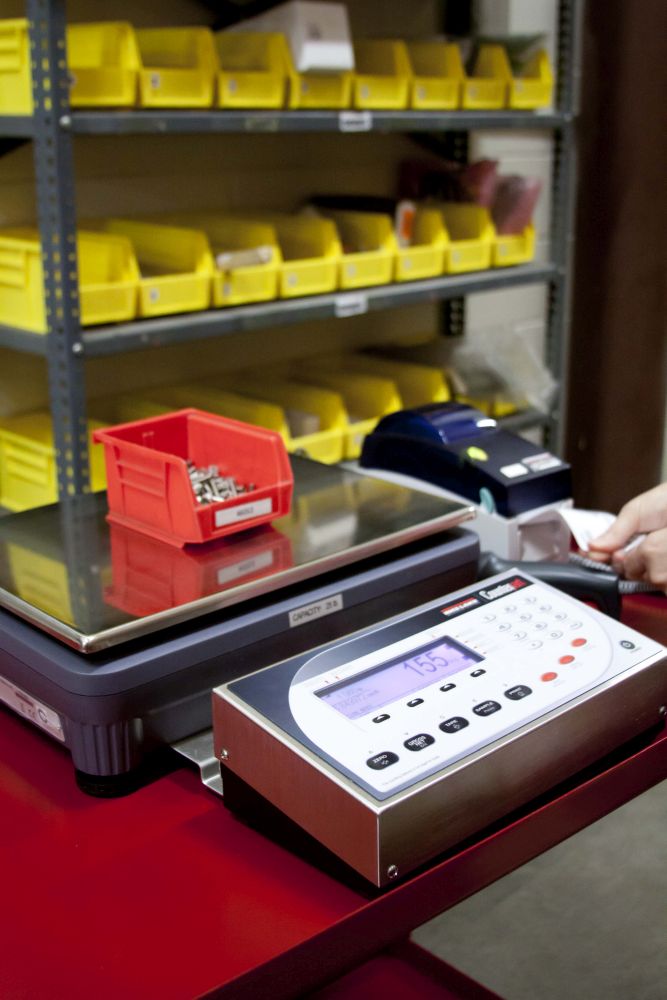

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device - for parts of every shape and size.

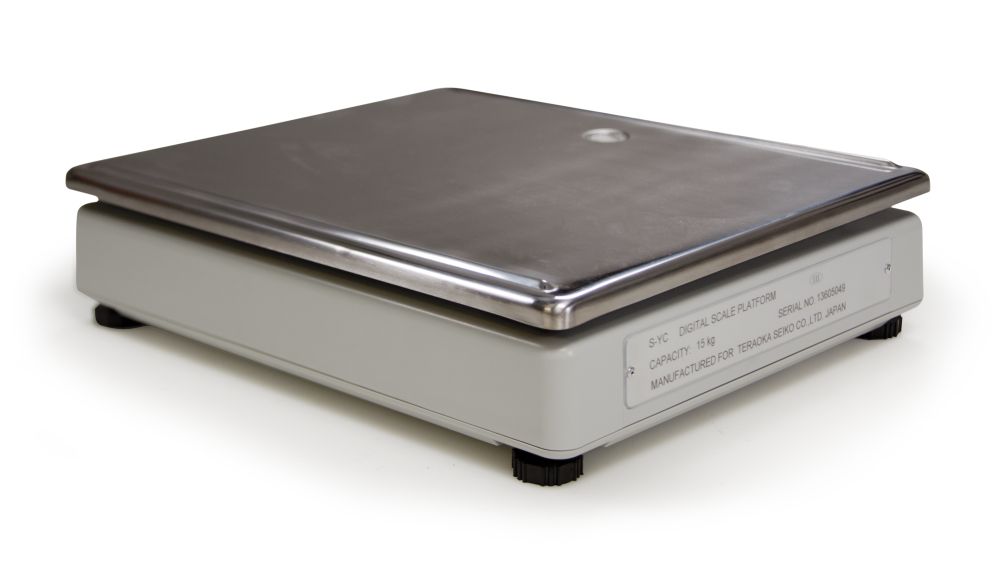

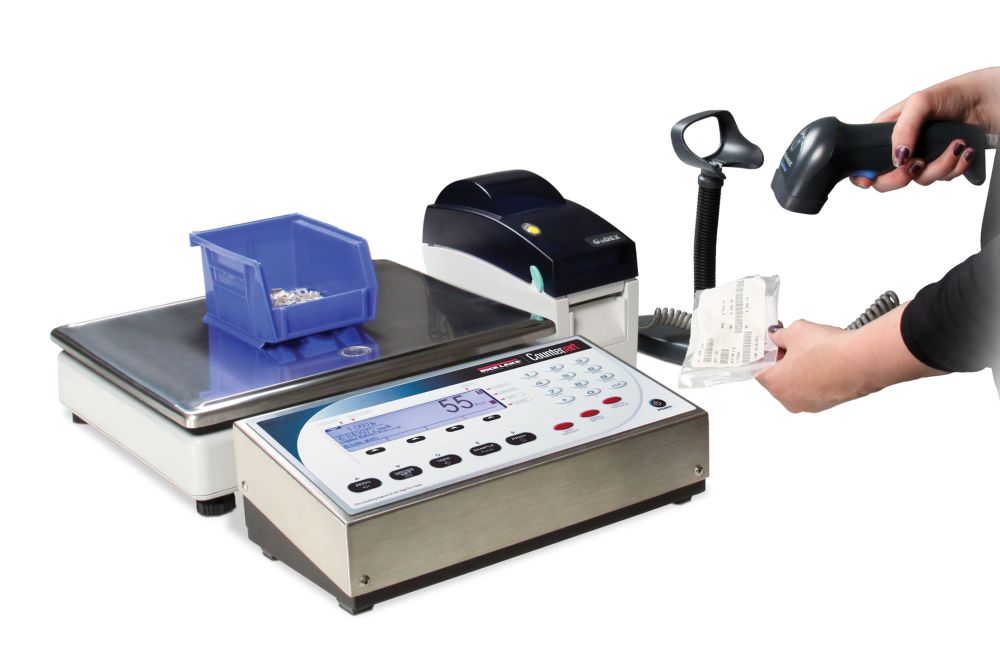

Unlike traditional counting scales, Counterpart uses Rice Lake's simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.
Rice Lake's new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right - zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.
While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.
Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.
Capacity | 50 lb x 0.005 lb (25 kg x 0.002 kg) |
---|---|
Platter Dimensions | 13.4" x 11" (341 mm x 284 mm) |
Power Source | Input: 100-240 VAC, 47-63 Hz, 5 watts, U.S. power cord Output: 9-12 V, 1.5 A max |
Excitation Voltage | 5VDC |
Analog Signal Input Range | 0-4.5 mV/V |
Analog Specifications | Grad minimum: .3 μV/grad Input sensitivity: 1.5 μV/grad recommended Zero adjustment range: 0-100% or per region settings A/D conversion rate: 7.5, 15, 30 samples per second Load cells per scale: 8 x 350 Ω; 16 x 700 Ω Scale channels: 1 or 2 Linearity: ±0.017 full scale |
Circuit Protection | RFI, EMI, ESD protection |
Digital I/O | Four |

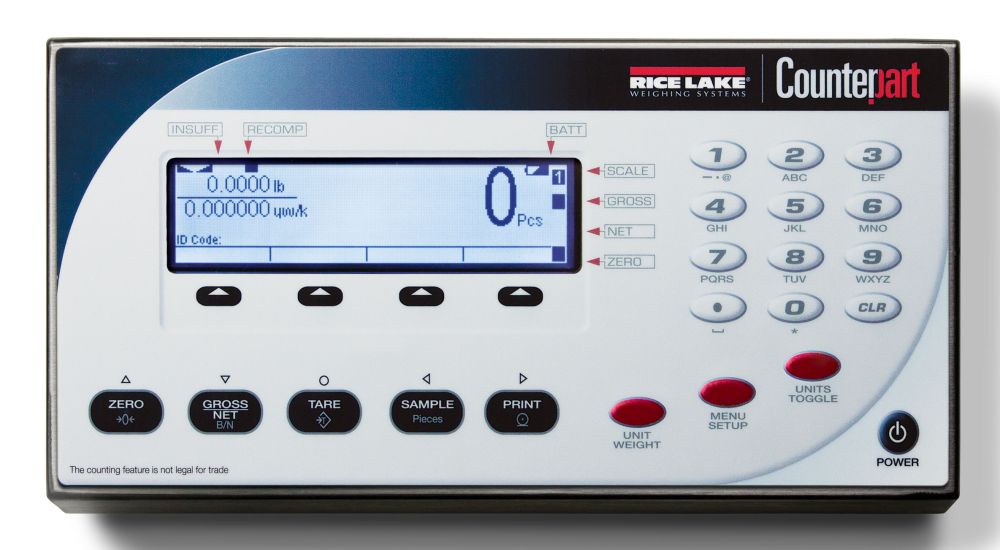

Display | Viewing area: 240 x 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast |
Keypad | 24 buttons, full keypad-alpha numeric |
Resolution |
Internal: 1,000,000 counts Display: up to 100,000 |

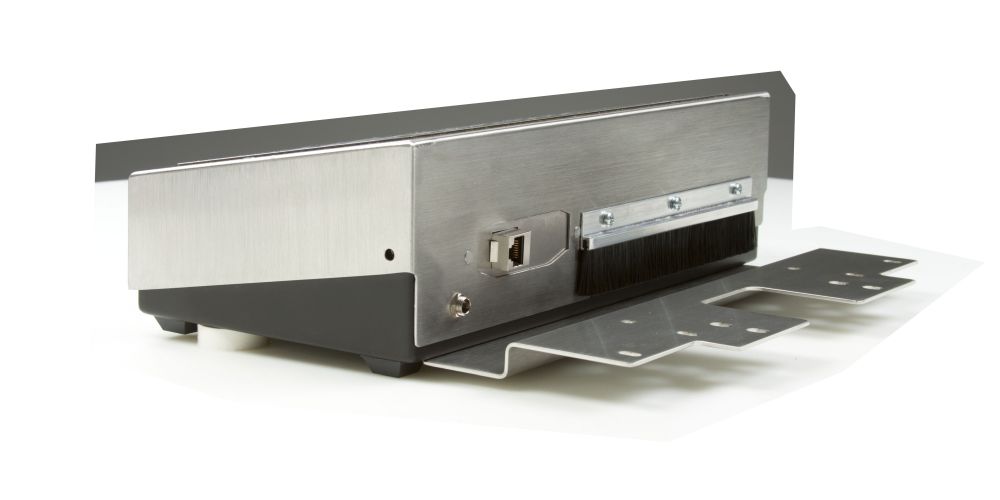

Communications and Setpoint | Two RS-232 ports support up to 115,200 bps 20 mA Ethernet port Setpoint output |
Status Annunciators | PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero |
Units of Measure | Pounds, grams, kilograms, ounces |
Prints | Standard EPL label format; format is changeable to work with virtually any printer |
Optional Battery | Type: Lithium ion Charge time: 6 to 8 hours Charge cycles: 400-1200 Estimated runtime: 24-32 hours with one 350 Ω load cell base |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Humidity | 85% |
Physical Dimensions (L x W x H) | Indicator only: 12.25" x 6.25" x 4" (311.15 mm x 158.75 mm x 101.6 mm) |
Warranty | Two-year limited warranty |
Approvals | NTEP CC 12-110 CE UL listed Measurement Canada |
