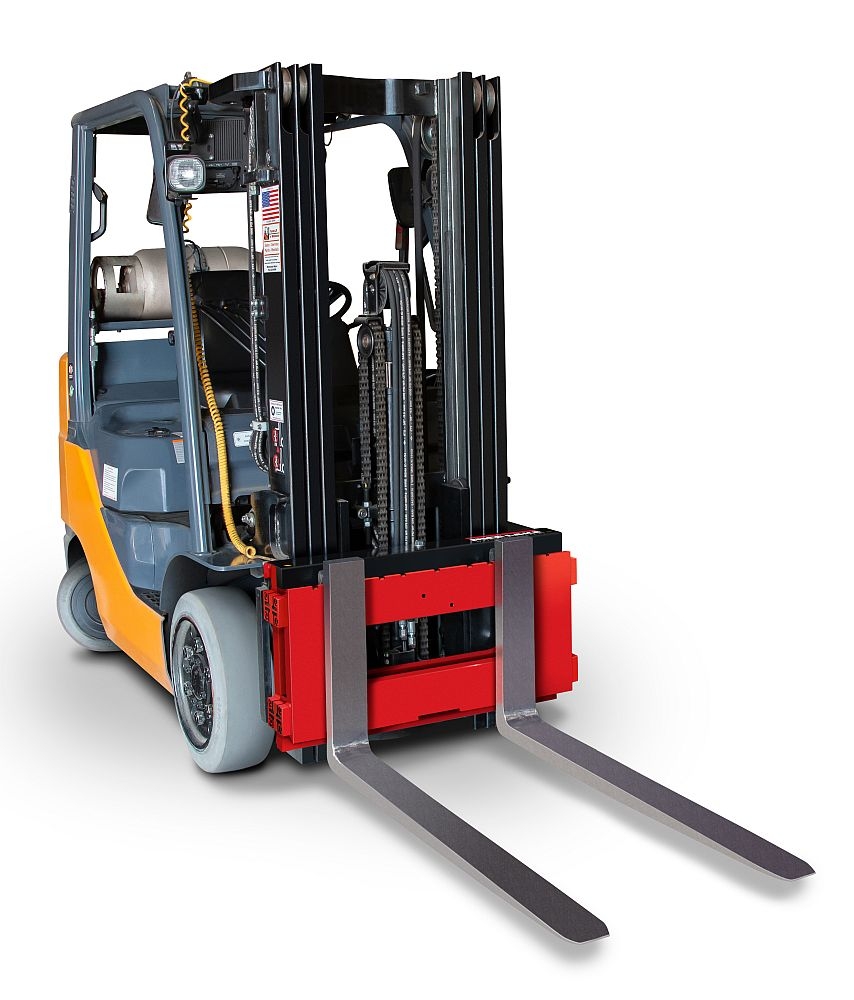

The CLS Series forklift scale mounts directly to most Class II and Class III lift trucks, saving material handling processes time and money. The CLS can be paired with a device for weight display through a cable or cableless connection. The weight display can either be a Rice Lake Weighing Systems indicator designed for the CLS or virtually through a device that supports the CLS Virtui software application. For connection to peripheral equipment, there is also optional USB, Bluetooth and Wi-Fi connection available.
The CLS-IM Series displays weight data on a device (not included) using Virtui software. The CLS-IM offers the ability to obtain the weight data while moving the load. The weight data is presented as a final weight and that weight is held until a minimum threshold of weight triggers a new weighment. The CLS-IM offers a valuable time-saving solution by not requiring the forklift to be stopped to collect a static weight.
|Cargo Lift Scale Specifications|
|Capacity||5000 lb x 5 lb|
|Forklift Compatibility||34" W, Class II, 16" H forklift carriage (36" W with flexures)|
|Load Cells||Two 5,000 lb stainless steel load cells|
|Material/Finish||Painted mild steel|
|Scale Power||Wireless version; supplied by one lithium-ion Smart battery (SMBus version 1.1 fully compliant)|
|Approvals||NTEP CC 06-074, per H-44 at 1,000 divisions|
Manufacturer recommends adding part number 166161 to protect electronics against static.
