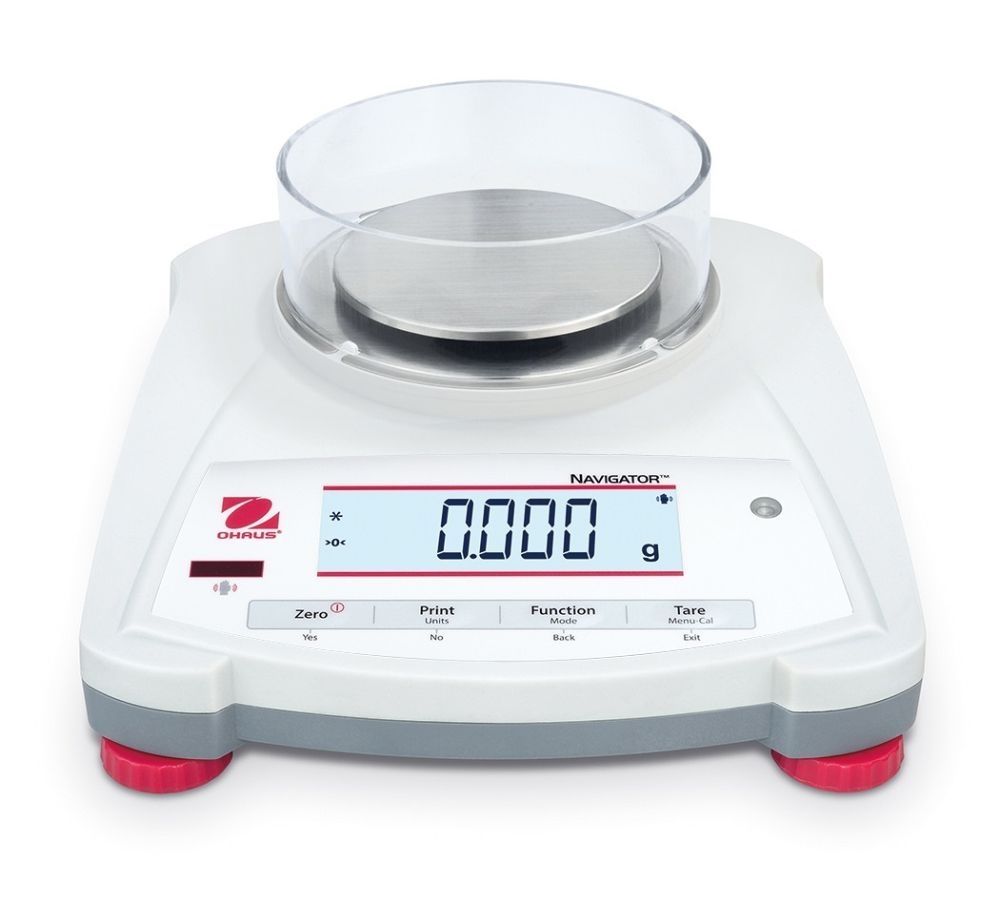

Ohaus NV123 Navigator Portable Balance with removable draft sheild, 120 g x 0.001 g

Item #CSI-NV123

Be the first to review this product

20%off

Availability: In stock

List Price: $520.00

Now: $416.00

You Save $104.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Toploading Balance - $85.00
Accessories
  • RS-232 kit (OHA-PN 83032107) (PN 83032107) SKU: 83032107 $220.00
  • USB kit (OHA-PN 83032108) (PN 83032108) SKU: 83032108 $220.00
  • Ethernet kit (OHA-PN 83032109) (PN 83032109) SKU: 83032109 $220.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • Carrying Case, for Navigator Series (OHA-PN 30467963) (PN 30467963) SKU: 30467963 $145.00
  • Adapter with plugs (EU-US-UK-AU-KR) (OHA-PN 30467987) (PN 30467987) SKU: 30467987 $53.00
Overview

  • Application: Weighing, Parts Counting, Percent Weighing, Checkweighing

  • Display: Liquid Crystal Display (LCD) with backlight

  • Operation: AC adapter (included) or 4 C batteries (not included)

  • Communication: RS232, USB, or Ethernet (not included - available as accessories)

  • Construction: ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble

  • Design Features: Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings

Ohaus NV123 Navigator Portable Balance with removable draft sheild, 120 g x 0.001 g

Details

OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.

Capacity 120 g
Readability 0.001 g
Repeatability (std. Dev.) 0.002 g
Linearity 0.003 g
Span Calibration Mass (not included) 100
Linearity Calibration Mass 50, 100 g
Stabilization Time 2.5 seconds
Construction ABS housing and stainless steel pan
Calibration User-selectable external span or linearity calibration / Digital with external weight
Tare Range Full capacity by subtraction
Weighing Units g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain
Application Modes Weighing, Parts Counting, Percent Weighing, Checkweighing
Power Requirements AC adapter (included) or 4 C batteries (not included)
Typical Battery Life 200 hours
Temperature Range 50° F to 104° F (10° C to 40° C) at 10% to 85% relative humidity, non-condensing
Storage Conditions -4° F to 131° F (-20° C to 55° C) at 10% to 90% relative humidity, non-condensing
Communication RS232, USB, or Ethernet (available as accessories)
Display Type Liquid Crystal Display (LCD) with backlight
Display Size 0.78" (20 mm) digits
Pan Size (W x D) ø 3.7" (ø 93 mm)
Draftshield Dimensions ø 4.7" (ø 120 mm), height: 1.7" (42 mm)
Balance Dimensions (W x D x H)

8" × 9.1" × 4.2" (204 mm × 230 mm × 107 mm) with draftshield

8" × 9.1" × 2.9" (204 mm × 230 mm × 74 mm) without draftshield
Net Weight 2.2 lb (1.0 kg)
