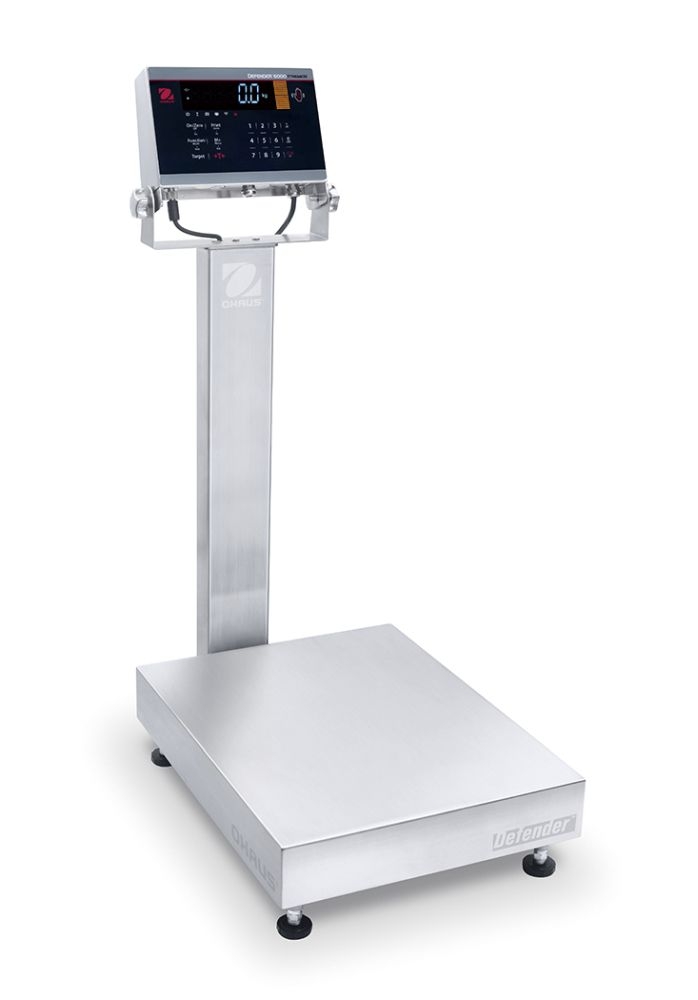

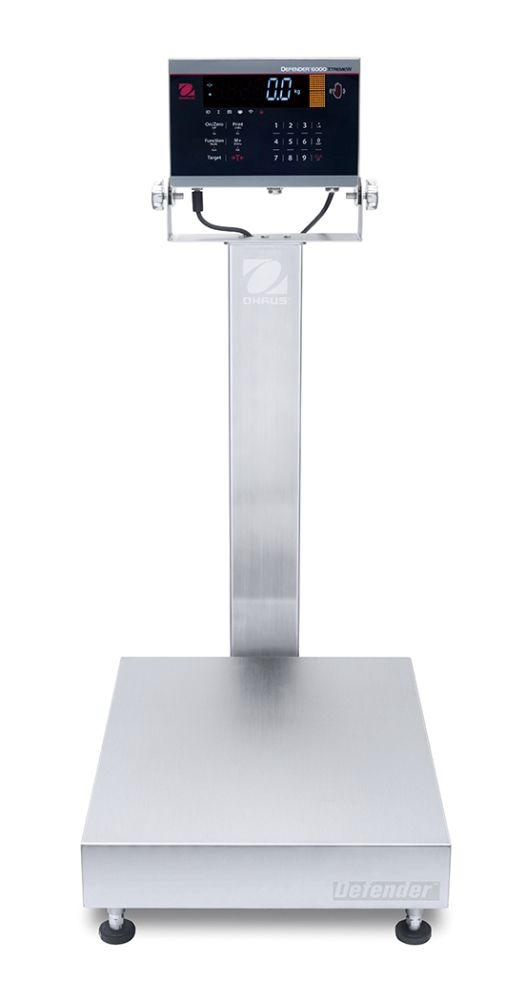

Ohaus D61XWE150K1L7 Defender 6000 Column Mount Extreme Washdown Bench Scale, 300 lb x 0.1 lb, NTEP Certified

Item #CSI-D61XWE150K1L7

Be the first to review this product

10%off

Availability: In stock

List Price: $2,675.00

Now: $2,407.50

You Save $267.50
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $200.00
Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN 80251992) SKU: 80251992 $1,005.00
  • RS232 cable, CKW, TxxXW (OHA-PN 80500552) (PN 80500552) SKU: 80500552 $237.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • PCBA kit, alibi memory, R71, T71 (OHA-PN 80500503) (PN 80500503) SKU: 80500503 $162.00
  • Discrete I/O kit, 2-in/4-out, R71 (OHA-PN 30097591) (PN 30097591) SKU: 30097591 $204.00
  • 2nd RS232/RS485/USB, TD52 (OHA-PN 30424404) (PN 30424404) SKU: 30424404 $220.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN 30429666) SKU: 30429666 $220.00
  • Analog Output Kit, TD52 (OHA-PN 30424403) (PN 30424403) SKU: 30424403 $220.00
  • Light Tower, R-Y-G, IP65, 24VDC, requires PN 30097591 (OHA-PN 30424021) (PN 30424021) SKU: 30424021 $254.00
  • WiFi/BT Dongle, requires PN 30424406 (OHA-PN 30412537) (PN 30412537) SKU: 30412537 $303.00
  • LC Extension Cable, 9 meters, D52 (OHA-PN 30424409) (PN 30424409) SKU: 30424409 $220.00
  • M16 Gland with Ferrite, to TD52 (OHA-PN 30379716) (PN 30379716) SKU: 30379716 $29.00
  • External power bank holder, 304 stainless steel, power bank NOT included (OHA-PN 30572907) (PN 30572907) SKU: 30572907 $362.00
  • Stainless steel wheel kit for Defender bases up to 300 lb capacity (OHA-PN 30616409) (PN 30616409) SKU: 30616409 $220.00
Overview

  • NTEP certified, NSF listed, USDA-AMS accepted, supports HACCP systems

  • Applications: Weighing, Check Weighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling

  • Display: 6-digit, 7-segment white LED with 20 mm (0.8") high digits and 3-color (red, green, orange) 8 x 16 dot matrix LED checkweighing/filling display

  • Power: Hardwired internal AC power supply included; optional external USB powerbank holder available separately

  • Communication: Built-in RS232 and USB host; hands-free, touchless sensor reduces contamination risk; optional 2nd RS232/RS485/USB device, analog output, Wi-Fi/Bluetooth, Ethernet and Discrete I/O with relays available separately

  • Construction: All 316 stainless steel indicator, column and base with hermetically-sealed load cell. Pan optional on 10" x 10" and 12" x 12" bases, available separately.

  • Design Features: Up to 10,000d/5,000e NTEP Class III certified legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set up

Ohaus D61XWE150K1L7 Defender 6000 Column Mount Extreme Washdown Bench Scale, 300 lb x 0.1 lb, NTEP Certified

Details

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.

i-DT61XWE Indicator Specifications
Construction 316 stainless steel housing, 316 stainless steel bracket
Protection IP68 immersion / IP69K washdown
Weighing Units Kilogram, gram, pound, ounce, pound:ounce
Application Modes Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling
Display 6-digit, 7-segment white LED, 20 mm (0.8") high digits
Check Indicator 3 color (red, green, orange) 8 x 16 dot matrix LED
Keyboard 6 function keys + 12 numeric capacitive keypad
Auto-Zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 and USB Host included. Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O, available separately.
Power 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or external power bank
Battery Life Depends on the capacity of the power bank used (up to 55 hours with 20,000mAh power bank)
Calibration Zero, Span or 3 point-Linear
Column Mount Bench Scale Specifications
Capacity x Default Readability

300 lb x 0.02 lb

150 kg x 10 g
Maximum Displayed Resolution
 1:15,000
Linearity/Repeatability ±2d
Capacity x Certified/Approved Readability

300 lb x 0.1 lb

150 kg x 50 g
Maximum Certified Resolution

1:3,000
Column
 26.4" (670 mm) 316 stainless steel
Base Construction
 316 stainless steel removable weighing platform with 316 stainless steel frame, hermetically sealed IP68/IP69K stainless steel loadcell
Safe Overload Capacity
 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size 19.7" x 15.7" (500 mm x 400 mm)
Approximate Net Weight 51.2 lb (23.2 kg)
