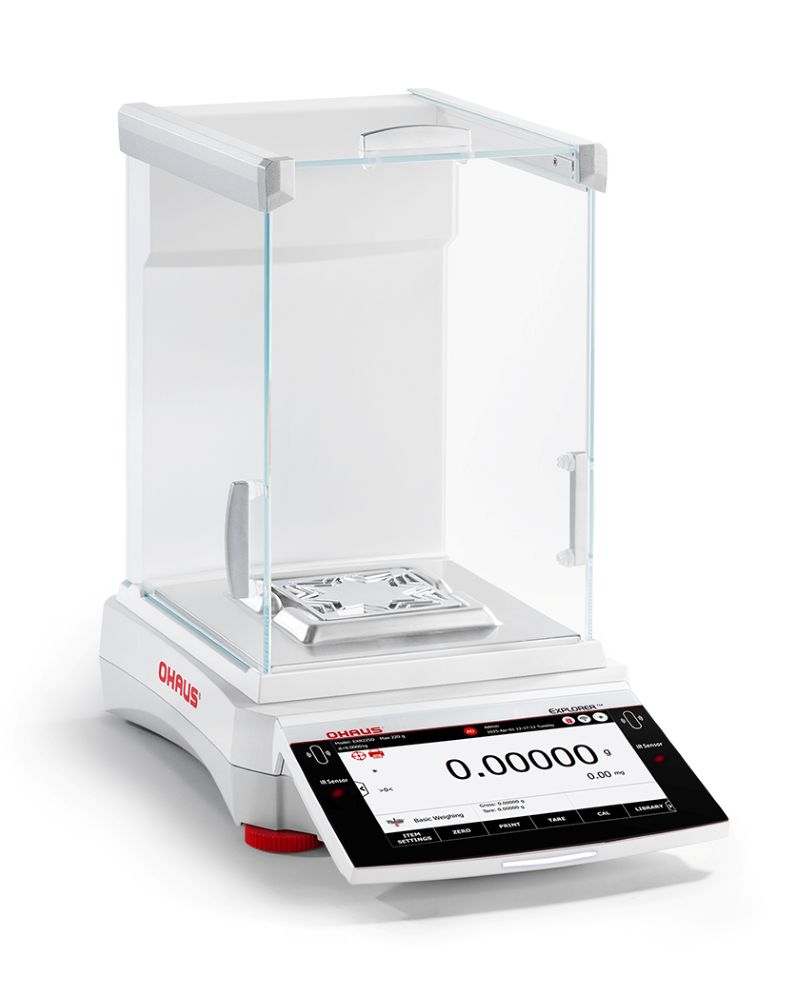

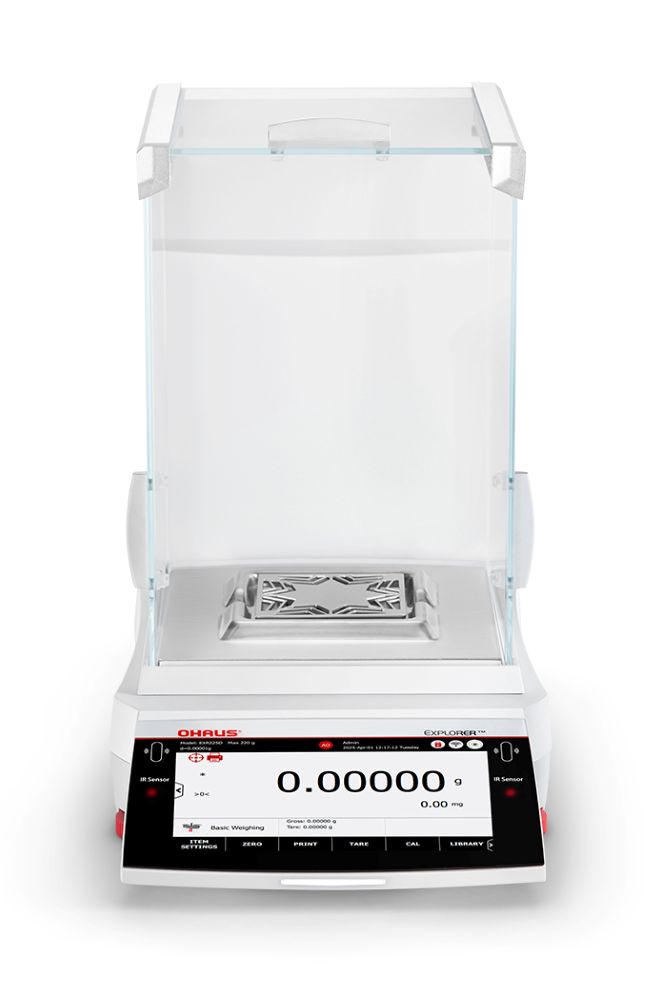

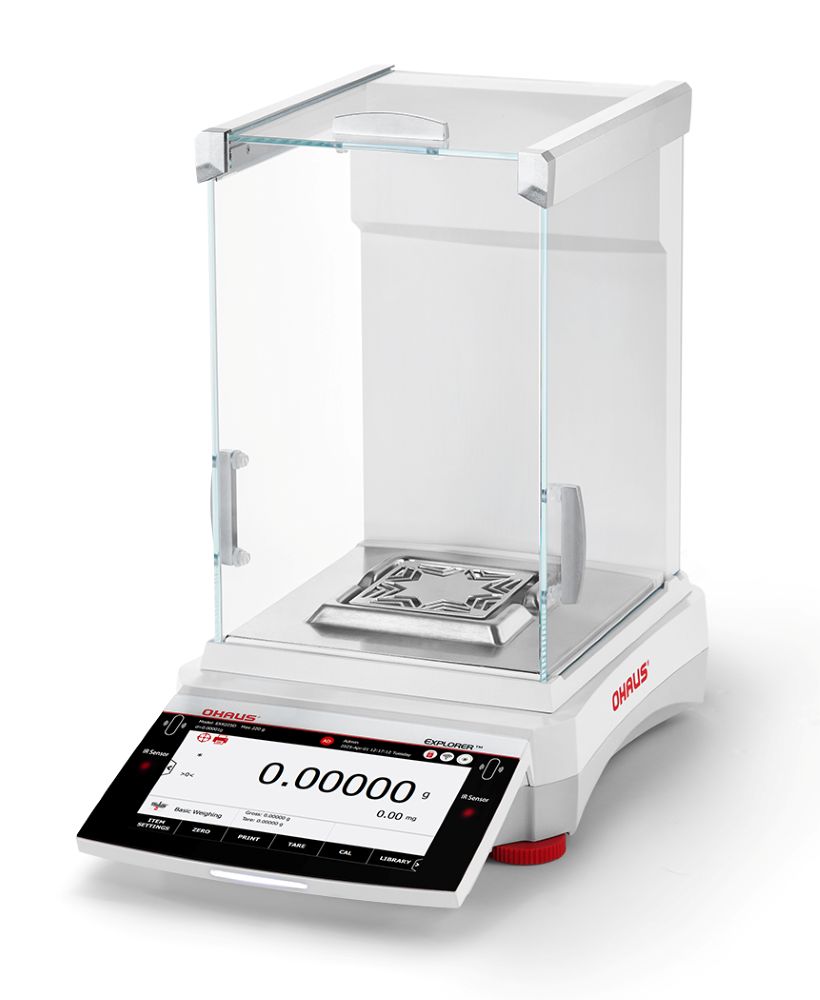

Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield
Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield
Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield
Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield
Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield

Ohaus EXR125D Explorer Semi-Micro Balance, 82/120 g x 0.01/0.1 mg, with Draftshield

CSI-EXR125D
Be the first to review this product
15%off

Availability: In Stock

List Price: $8,021.00

Now: $6,817.85

You Save $1,203.15
Free Shipping on this product

Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • Cable, RS-422, 9 m, EX, EX-HiCap (OHA-PN 30078078) SKU: 30078078 $236.00

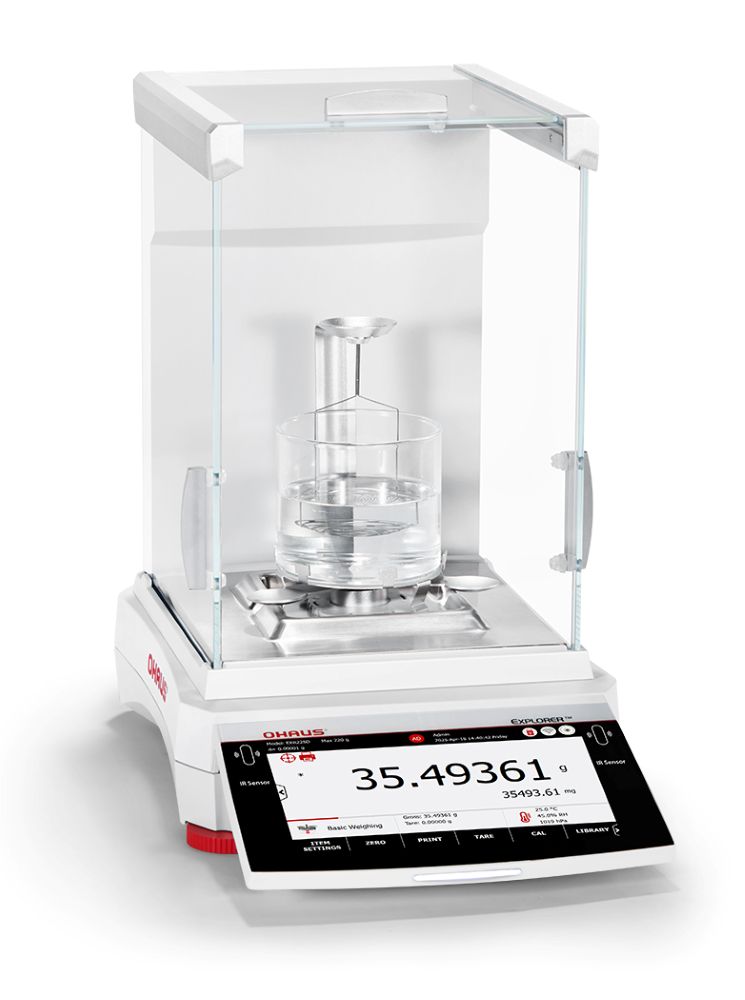

  • Density determination kit, sinker glass (OHA-PN 83034024) SKU: 83034024 $1,001.00
  • Density kit, solids (OHA-PN 80253384) SKU: 80253384 $1,191.00
  • Ink Ribbon SF40A (OHA-PN 30529322) SKU: 30529322 $90.00
  • Paper roll, set (2), 57.5 mm, SF40A (OHA-PN 12120799) SKU: 12120799 $30.00
  • Pipette adjustment kit (OHA-PN 30252145) SKU: 30252145 $2,212.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) SKU: 30064203 $1,517.00
  • SF40A/BT Wireless Bluetooth compact dot matrix impact printer (OHA-PN 30944360) SKU: 30944360 $1,720.00
  • Static ionizer, ION-100A (OHA-PN 30130302) SKU: 30130302 $2,660.00
  • Weighing Kit, for Explorer Series (OHA-PN 31059237) SKU: 31059237 $478.00
  • Wireless Dongle LM842, for Explorer Series (OHA-PN 31059239) SKU: 31059239 $199.00
Overview
  • Achieve consistent results with built-in automatic calibration, touchless sensors and a ventilated weighing pan. Get reliable data with the digital weighing cell and internal environment sensors.
  • A intuitive 7-inch glass touchscreen, digital leveling, and simplified data management is easy to use. With an effortless installation and chemical-protective design it ensures efficiency and comfort.
  • Supports HID connection to PC or keyboard without drivers, and provides 2-way communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer.
  • 11 application modes
  • Communication: USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi/ Bluetooth Dongle
The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Capacity 82 g / 120 g
Readability d, Fine Range 0.01 mg
Readability d, Full Range 0.1 mg
Repeatability (sd.), ≤5% of Full Load Typical 0.01 mg
Repeatability (sd.), 5% of Full Load to Fine Range Max 0.02 mg
Repeatability (sd.), Fine Range Max to Full Range 0.1 mg
Linearity Deviation Typical 0.06 mg
Linearity Deviation 0.2 mg
Span Calibration Points 25 g, 50 g, 75 g, 100 g
Weighing Units g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tcl, tola, baht, Custom 1, Custom 2
Applications Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Stabilization Time (typical) 0.1 mg: ≤ 2 seconds; 0.01 mg: ≤ 5 seconds
Sensitivity Temperature Drift 0.8 ppm/°C
Min-Weight (typical) (K=2, U=1%) 2 mg
Min-Weight (typical) (USP, K=2, U=0.10%) 20 mg
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP ≤0.41 d) 8.2 mg

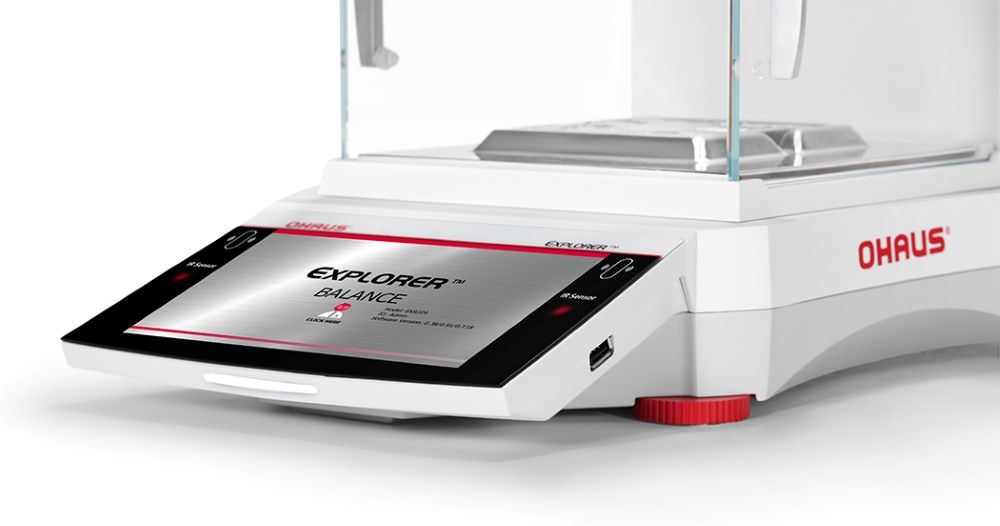

Terminal Display 7-inch TFT 16.7M Color, Touch Screen with Glass Overlay, Detachable Terminal
Display Resolution 800 x 480 Pixels
Communication USB Host (Type A) x 2, USB Device (Type C) x 1; Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Leveling Systems 2 leveling feet with digital leveling bubble
Power Supply AC Adapter Input: 100 – 240 VAC 0.5 A 50-60 Hz, AC Adapter Output: 12 VDC 1.5 A
Weighing Pan Size Aero Pan 80 mm x 80 mm
Touchless Sensor 2 Touchless Sensors on the terminal
Draftshield with anti-static coating Standard
Draftshield & Terminal Status Lights Standard, 7-color Selectable
Working Environment Indoor use only. Working ambient temperatures: 5.0 °C – 40.0 °C Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40°C.
Assembled Dimensions (W x D x H) 230 mm x 393 mm x 370 mm
Net Weight 7.4 kg
