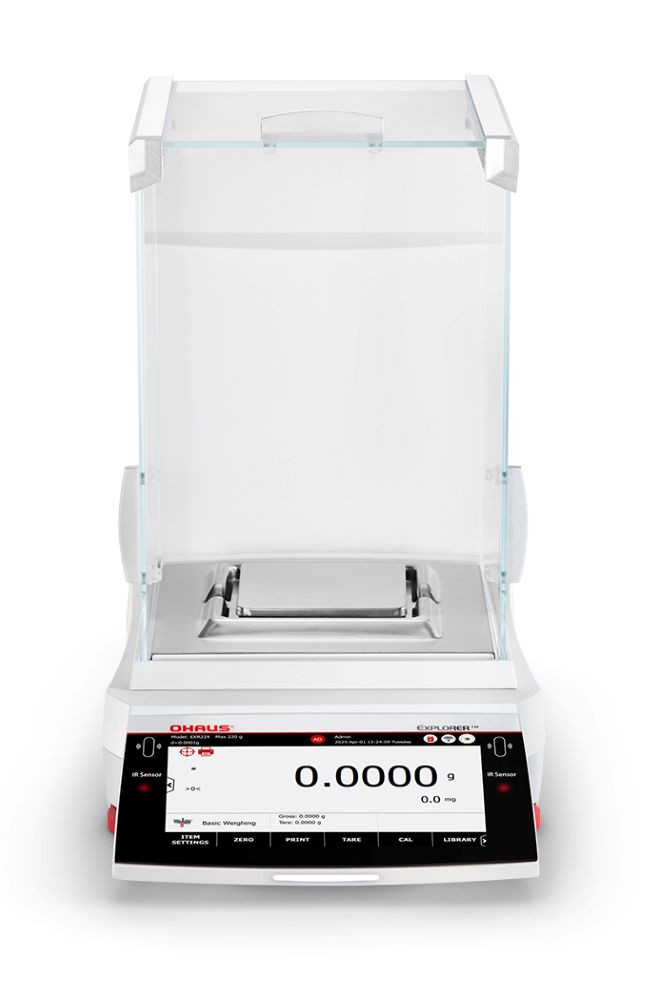

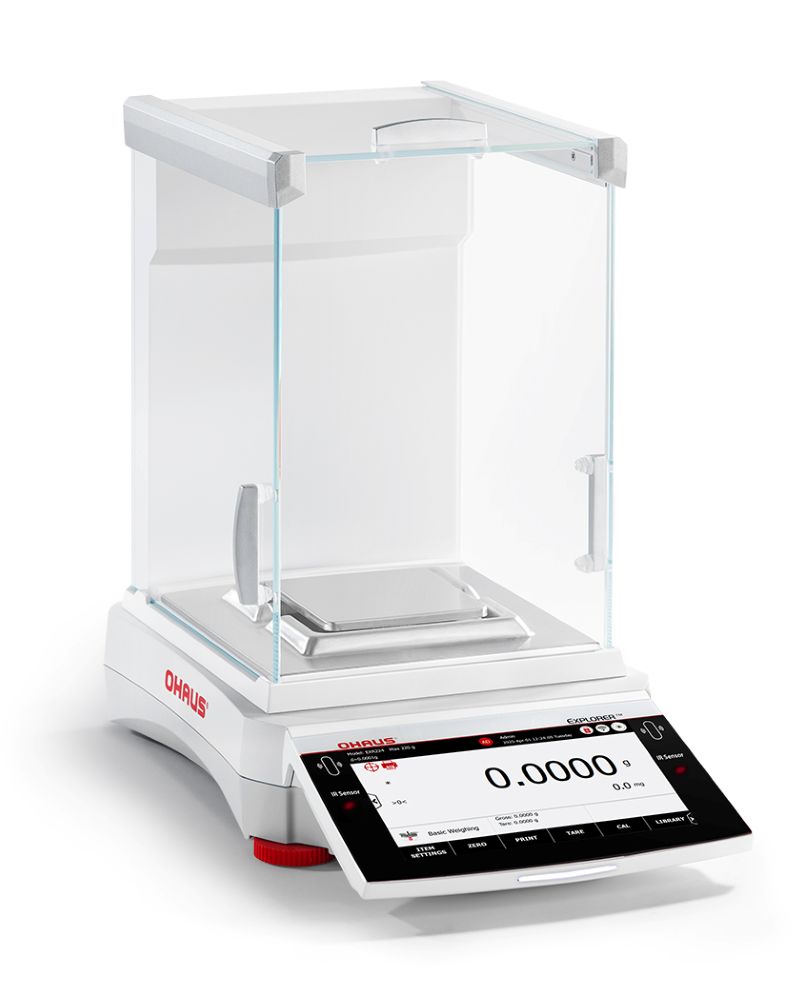

Ohaus EXR124 Explorer Analytical Balance, 120 g x 0.1 mg, with Draftshield

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.

Capacity	120 g
Readability d	0.1 mg
Repeatability (sd.), ≤5% of Full Load Typical	0.05 mg
Repeatability (sd.), 5% of Full Load to Full Range	0.1 mg
Linearity Deviation Typical	0.06 mg
Linearity Deviation	0.2 mg
Span Calibration Points	25 g, 50 g, 75 g, 100 g
Weighing Units	g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2
Applications	Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Stabilization Time (typical)	2 seconds
Sensitivity Temperature Drift	1.5 ppm/°C
Min-Weight (typical) (K=2, U=1%)	10 mg
Min-Weight (typical) (USP, K=2, U=0.10%)	100 mg
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP ≤0.41 d)	82 mg
Terminal Display	7-inch TFT 16.7M Color, Touch Screen with Glass Overlay, Detachable Terminal
Display Resolution	800 x 480 Pixels

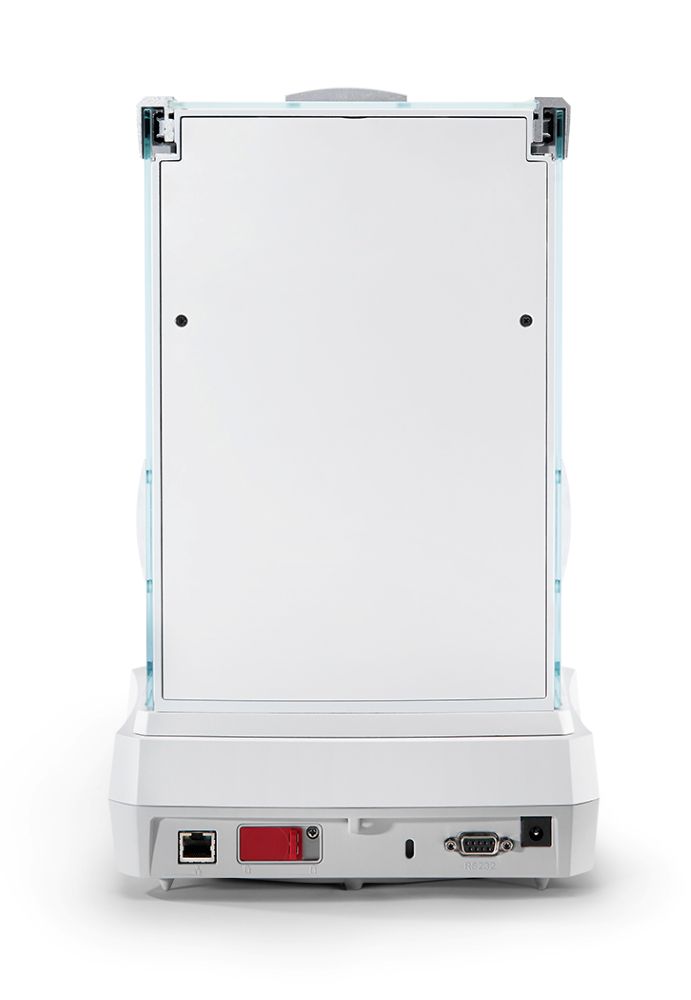

Communication	USB Host (Type A) x 2, USB Device (Type C) x 1; Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Leveling Systems	2 leveling feet with digital leveling bubble
Power Supply	AC Adapter Input: 100 – 240 VAC 0.5 A 50-60 Hz, AC Adapter Output: 12 VDC 1.5 A

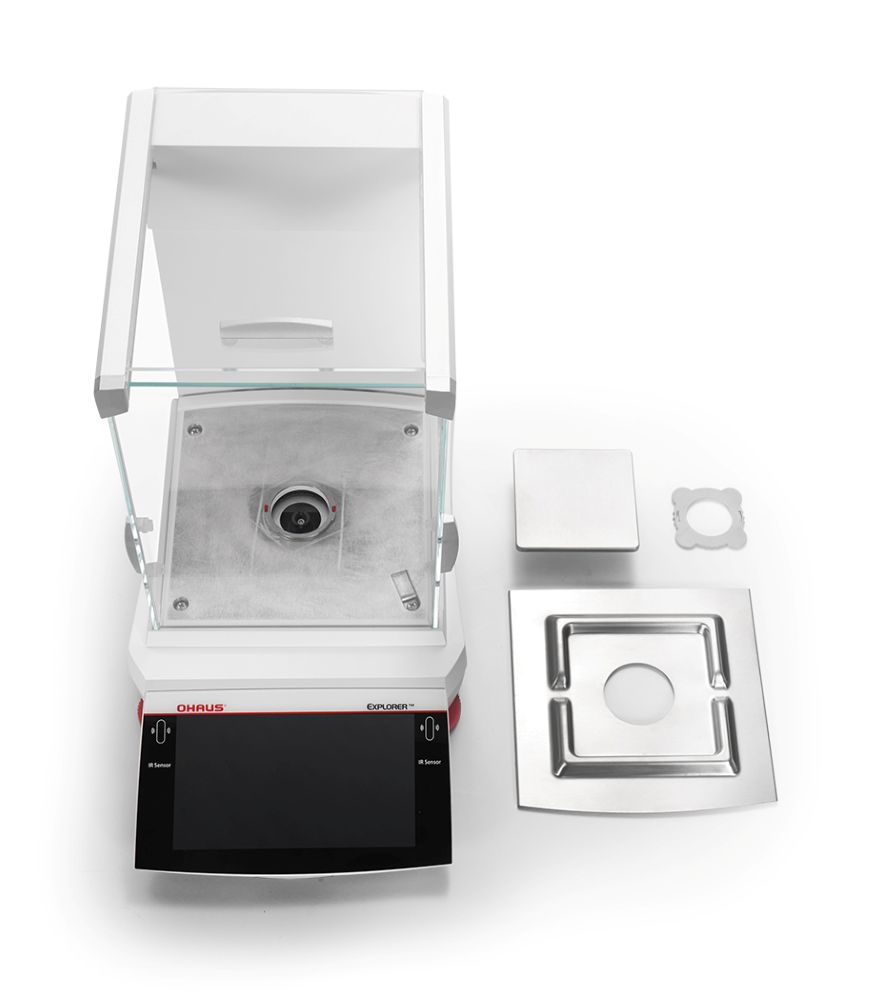

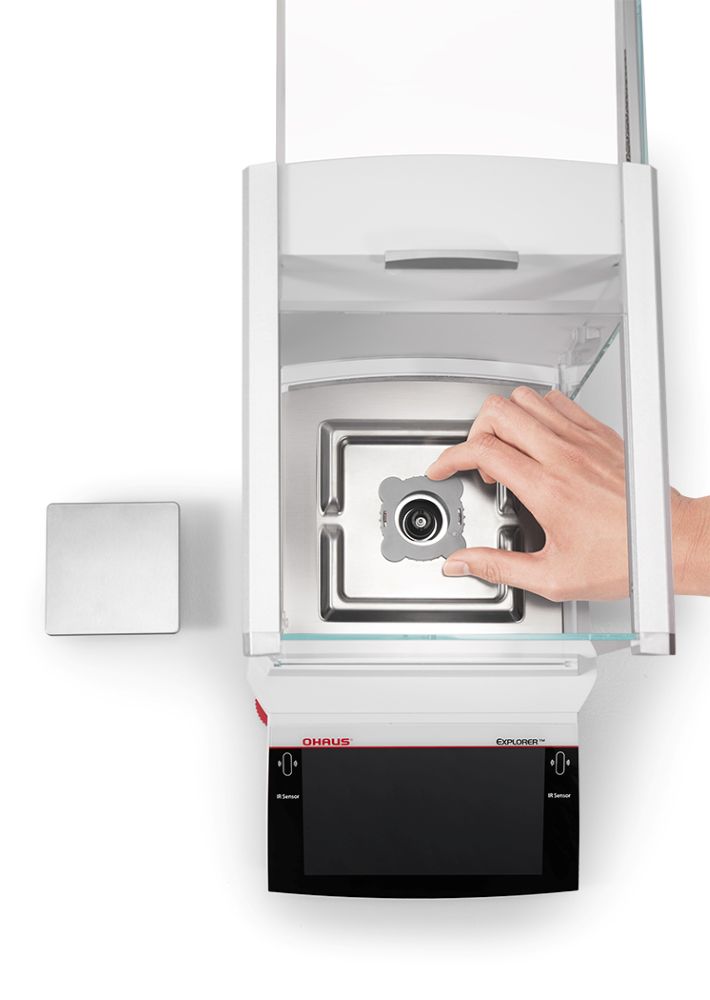

Weighing Pan Size	Square Pan 90 mm x 90 mm
Touchless Sensor	2 Touchless Sensors on the terminal
Draftshield with anti-static coating	Standard
Draftshield & Terminal Status Lights	Standard, 7-color Selectable
Working Environment	Indoor use only. Working ambient temperatures: 5.0 °C – 40.0 °C Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40°C.
Assembled Dimensions (W x D x H)	230 mm x 393 mm x 370 mm
Net Weight	7.4 kg
