Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer
Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer

Ohaus EXP224/AD Explorer Plus Analytical Balance, 220 g x 0.1 mg, Auto Door and Ionizer

CSI-EXP224/AD
Be the first to review this product
15%off

Availability: In Stock

List Price: $7,774.00

Now: $6,607.90

You Save $1,166.10

Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • Cable, RS-422, 9 m, EX, EX-HiCap (OHA-PN 30078078) SKU: 30078078 $226.00
  • Density determination kit, sinker glass (OHA-PN 83034024) SKU: 83034024 $962.00
  • Density kit, solids (OHA-PN 80253384) SKU: 80253384 $1,145.00
  • Ink Ribbon SF40A (OHA-PN 30529322) SKU: 30529322 $86.00
  • Paper roll, set (2), 57.5 mm, SF40A (OHA-PN 12120799) SKU: 12120799 $28.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) SKU: 30064203 $1,458.00
  • SF40A/BT Wireless Bluetooth compact dot matrix impact printer (OHA-PN 30944360) SKU: 30944360 $1,653.00
  • Static ionizer, ION-100A (OHA-PN 30130302) SKU: 30130302 $2,557.00
Overview

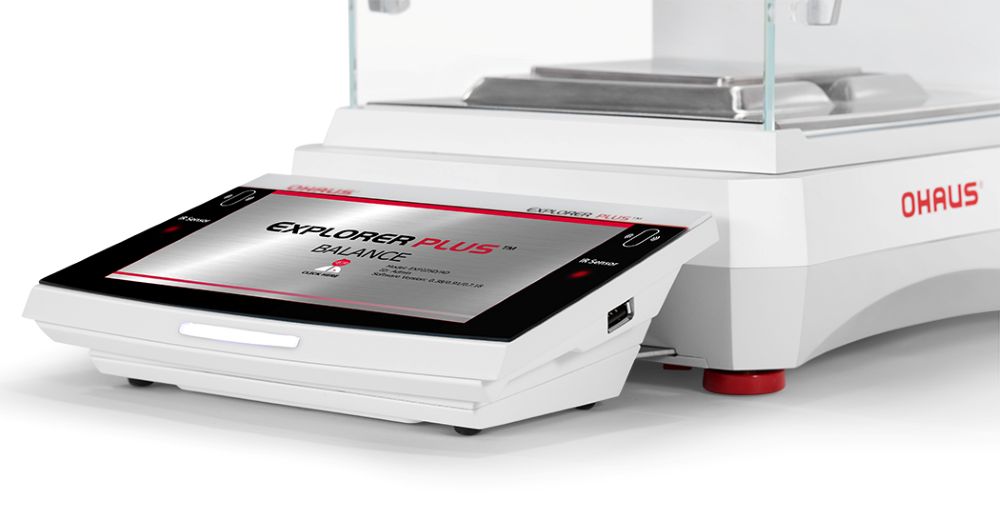

  • 7-inch glass touchscreen, chemical protection and 2 modifiable status lights

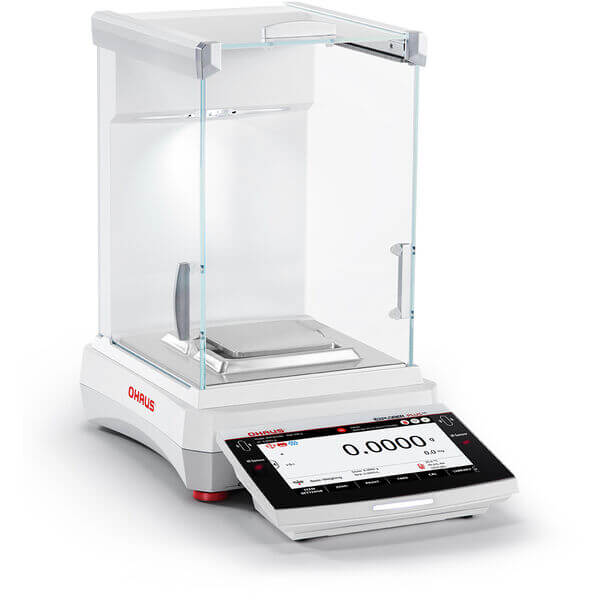

  • Motorized leveling, auto doors, touchless sensors, ionizers and draft shield lights
  • Ensure compliance with 4-level user system, password protection, and 100k internal system log. The time synchronization NTP function confirms data traceability to meet the Pharmaceutical regulations.
  • Advanced communication capabilities with straightforward integration to Laboratory Information Management Systems (LIMS), and hassle-free data transfer with driverless HID for easy data input.
  • 15 application modes
  • Communication: USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi/ Bluetooth Dongle
The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Capacity 220 g
Readability d 0.1 mg
Repeatability (sd.), ≤5% of Full Load Typical 0.05 mg
Repeatability (sd.), 5% of Full Load to Full Range 0.1 mg
Linearity Deviation Typical 0.06 mg
Linearity Deviation 0.2 mg
Internal Calibration AutoCal - Automatic
Span Calibration Points 50 g, 100 g, 150 g, 200 g
Weighing Units g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2
Applications Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Stabilization Time (typical) 2 seconds
Sensitivity Temperature Drift 1.5 ppm/°C
Min-Weight (typical) (K=2, U=1%) 10 mg
Min-Weight (typical) (USP, K=2, U=0.10%) 100 mg
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP ≤0.41 d) 82 mg

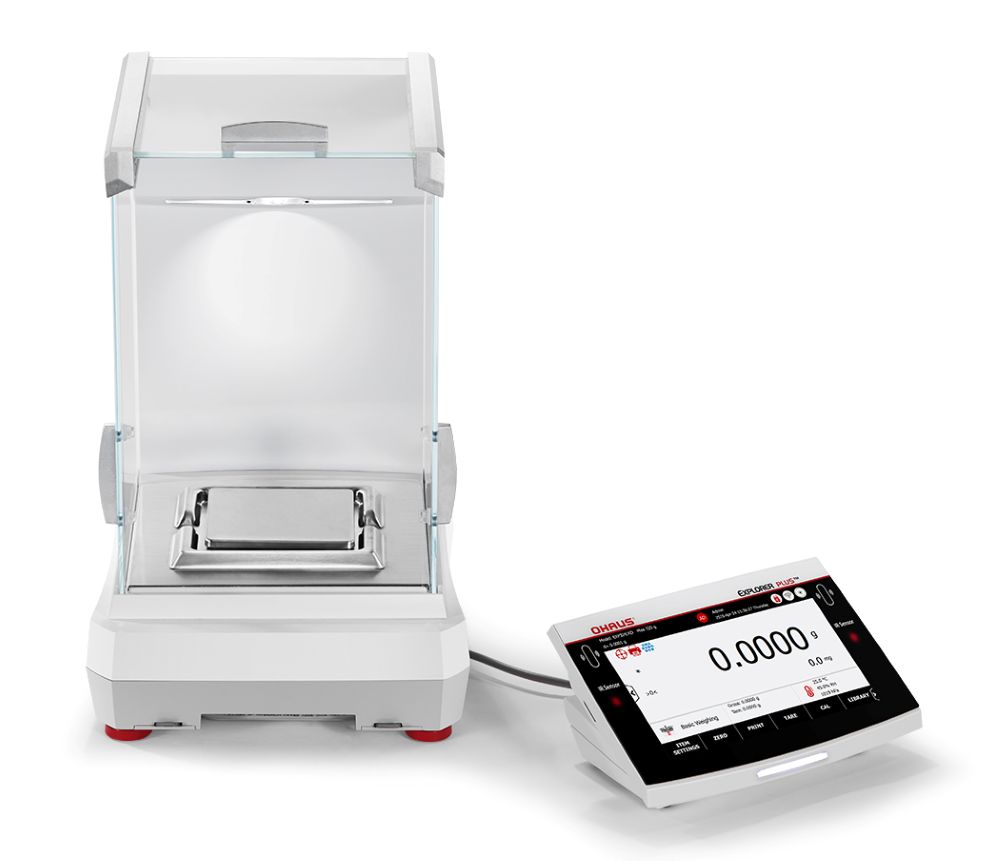

Terminal Display 7-inch TFT 16.7M Color, Touch Screen with Glass Overlay, Detachable Terminal
Display Resolution 800 x 480 Pixels
Communication USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1; Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Leveling Systems Motorized Leveling System with Digital Leveling Bubble
Power Supply AC Adapter Input: 100 – 240 VAC 0.5 A 50-60 Hz, AC Adapter Output: 12 VDC 1.5 A
Weighing Pan Size Square Pan 90 mm x 90 mm
Built-in Ionizer Standard
Environmental Sensor (Load Cell) Temperature Sensor, Relative Humidity Sensor (RH), Air Pressure Sensor
Touchless Sensor 2 Touchless Sensors on the terminal
Draftshield with anti-static coating Standard
Automatic Draftshield Door Function Standard, Open Range: 1/2 open and fully open
Draftshield & Terminal Status Lights Standard, 7-color Selectable
Working Environment Indoor use only. Working ambient temperatures: 5.0 °C – 40.0 °C Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40°C.
Terminal Housing Dimensions (W x D x H) 205 mm x 126 mm x 66 mm
Base Housing Dimensions (W x D x H) 229 mm x 275 mm x 78 mm
Assembled Dimensions (W x D x H) 229 mm x 408 mm x 372 mm
Net Weight 7.8 kg
