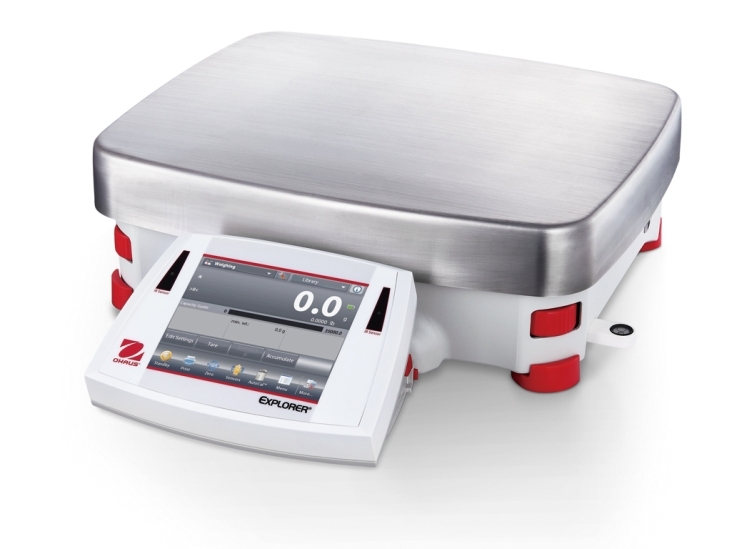

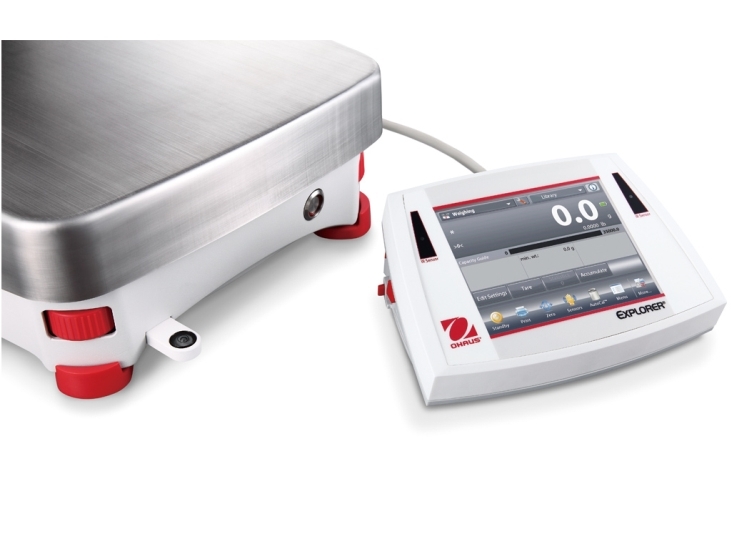

The Ohaus Explorer Series has risen to the next level of ingenuity, expanding on its modern features and design to offer unmatched functionality in a line of high-performance balances unlike any other on the market.

Capacity	35,000 g
Readability d	0.1 g
Verification Interval e	1 g
Class	II
Repeatability (Standard)	±0.1 g
Linearity	±0.2 g
Stabilization Time	≤ 1 second
Sensitivity Drift	3 ppm/°C
Weighing Units	g, kg, oz, lb, ct, ozt, grain, dwt
Weighing Applications	Weighing, percent weighing, parts counting, check weighing, dynamic/animal weighing, filling, totalization, formulation, differential weighing, density determination, peak hold, ingredient costing, SQC, fill weight variation

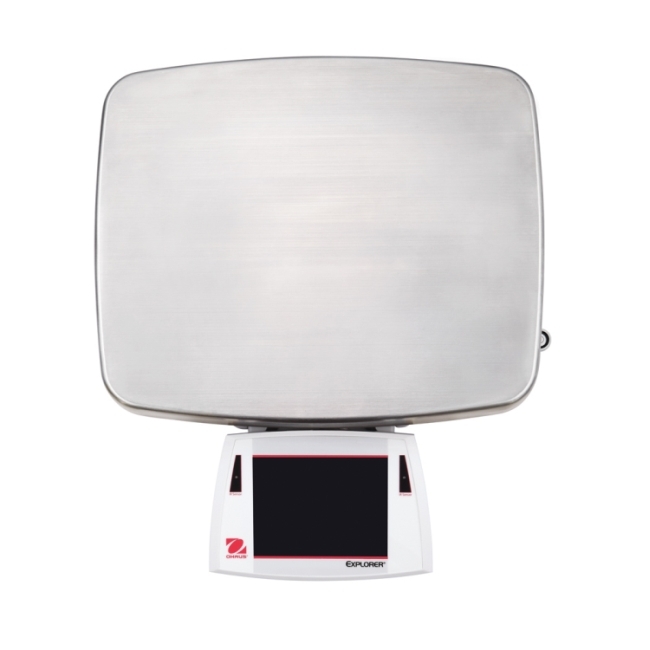

Pan Size	14.8" x 12.2" / 377 mm x 311 mm
Calibration	AutoCal - automatic internal
Tare Range	To capacity by subtraction
Power Requirements	Power input 100-240 VAC, 0.5-0.025A, 47-63 Hz; Power output 24 VDC, 0.63 A, 15W

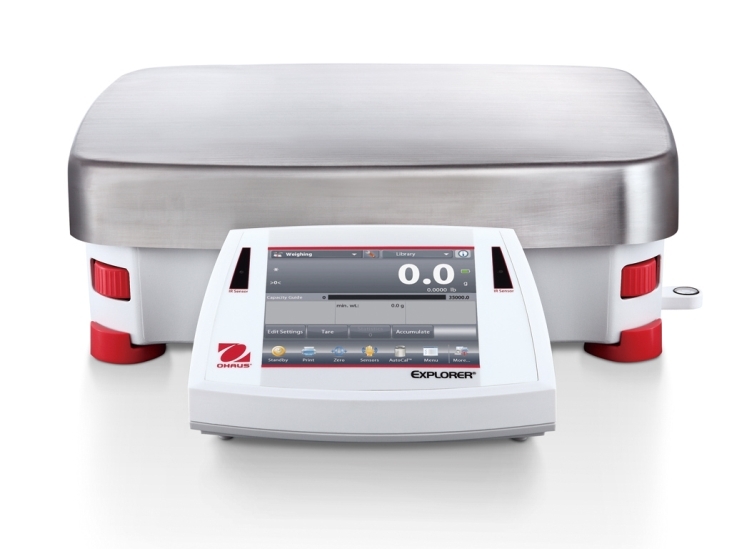

Display Type	Full color VGA graphic display, 4-wire resistive touch screen
Display Size	5.7" / 145 mm (diagonal)
Display Housing (W x H x D)	7.68" x 3.54" x 6.06" / 195 mm x 90 mm x 154 mm
Base Housing (W x H x D)	14.84" x 4.72" x 17.44" / 377 mm x 120 mm x 443 mm
Communication	RS-232, USB and optional Ethernet (purchased separately)
Temperature Range	50° F to 86° F (10° C to 30° C)
Humidity Range	80% max up to 86° F / 30° C decreasing linearly to 50% at 104° F / 40° C, non-condensing
Storage Conditions	14°F / -10°C to 140° F / 60° C at 10% to 90% relative humidity, non-condensing
Net Weight	22 lb / 10 kg

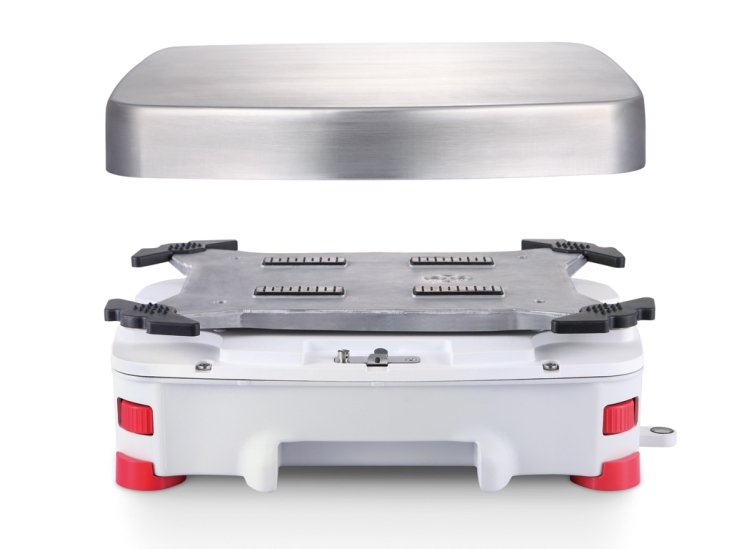

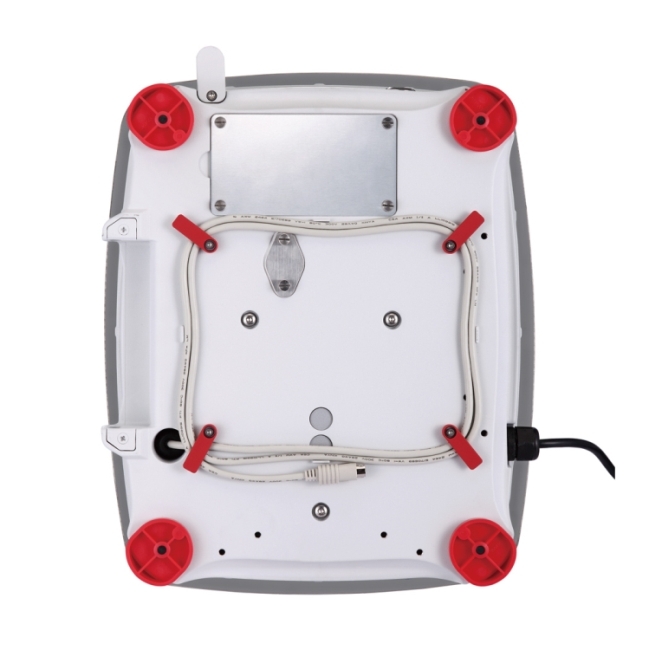

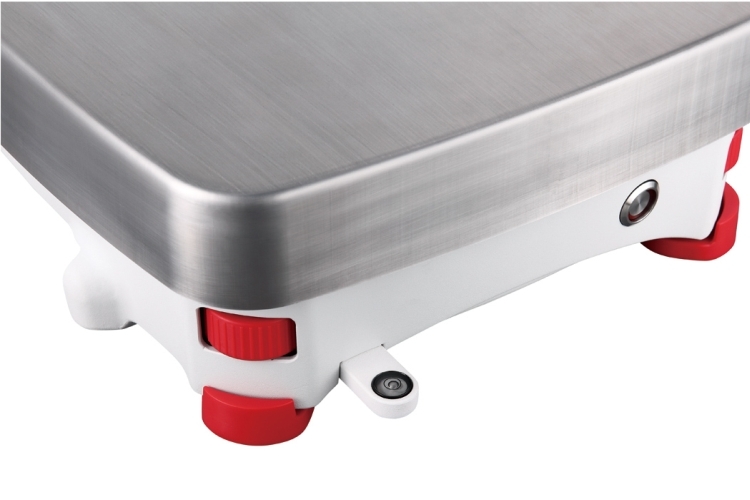

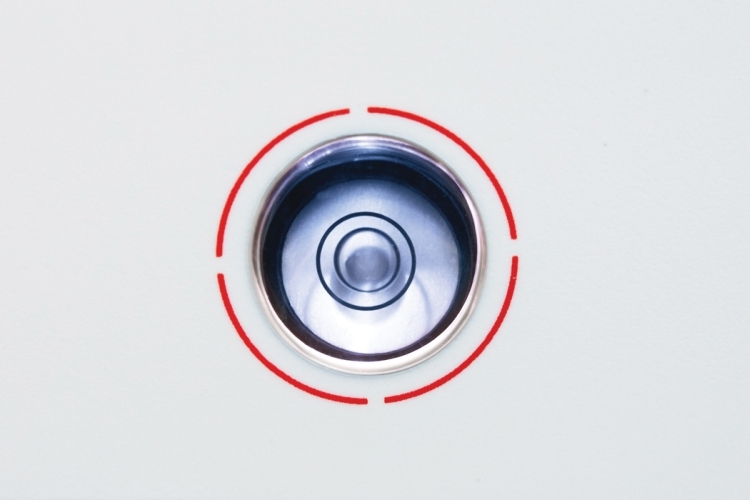

Construction	Modular design, IP54 metal base, die-cast top housing, stainless steel pan, illuminated up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, terminal housing in-use cover
