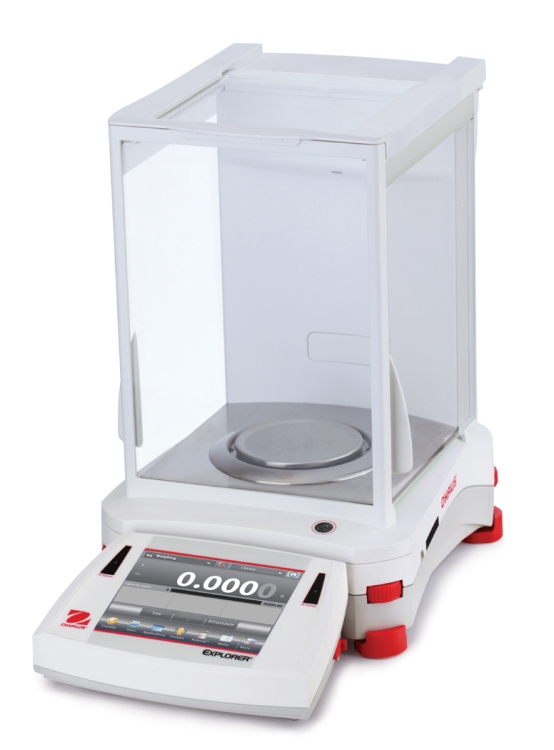

Ohaus EX324N Explorer Analytical Balance, 320 g x 1 mg, NTEP

Item #CSI-EX324N

Be the first to review this product

15%off

Availability: In stock

List Price: $7,708.00

Now: $6,551.80

You Save $1,156.20
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN ) SKU: $1,005.00
  • WinWedge software (OHA-PN 80850080) (PN ) SKU: $702.00
  • Cable, 25 pin - 9 pin (OHA-PN 80500524) (PN ) SKU: $254.00
  • Cable, RS232, IBM 9P, Ohaus AV, DV, MB, Ranger (OHA-PN 80500525) (PN ) SKU: $254.00
  • Anti-theft device (OHA-PN 80850043) (PN ) SKU: $305.00
  • Density kit, solids (OHA-PN 80253384) (PN ) SKU: $1,022.00
  • Anti-theft device (OHA-PN 80850000) (PN ) SKU: $118.00
  • RS232 cable & adapter to STP-103 printer, Ohaus AV, DV, EX, MB, PA, TxxP (OHA-PN 80252581) (PN ) SKU: $254.00
  • In use cover, terminal, EX (OHA-PN 83033633) (PN ) SKU: $113.00
  • Column kit, EX (OHA-PN 83021102) (PN ) SKU: $220.00
  • Cable, USB, Type A-B (OHA-PN 83021085) (PN ) SKU: $254.00
  • Cable, RS-422, extension (OHA-PN 83021083) (PN ) SKU: $144.00
  • Ethernet kit, EX, EX-HiCap (OHA-PN 83021082) (PN ) SKU: $254.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN ) SKU: $1,303.00
  • Cable, RS-422, 9 m, EX, EX-HiCap (OHA-PN 30078078) (PN ) SKU: $202.00
  • Auxiliary Display, AD7-RS (OHA-PN 30472064) (PN ) SKU: $96.00
Overview
  • NTEP Certified

  • Fast stabilization time

  • Modular design

  • Large color touch screen

  • AutoCal internal calibration

  • Weigh below hook

  • Up-front level indicator

  • Multiple weighing units

  • Multiple application modes

  • Standard USB and RS-232 ports

  • AC adapter included


Details

The Ohaus Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.

Capacity 320 g
Readability d 0.0001 g
Verification Interval e 0.001 g
Class I
Repeatability (Standard) ±0.0001 g
Linearity ±0.0002 g
Stabilization Time ≤ 3 seconds
Sensitivity Drift 1.5 ppm/°C
Weighing Units Gram, milligram, kilogram, carat, ounce, ounce troy, pound, pennyweight, grain, newton, momme, mesghal, Hong Kong tael, Singapore tael, Taiwan tael, tical, custom
Weighing Units, Certified Models mg, g, oz, lb, ct, ozt, grain, dwt
Weighing Applications Weighing, percent weighing, parts counting, check weighing, dynamic/animal weighing, filling, totalization, formulation, differential weighing, density determination, peak hold, ingredient costing, pipette adjustment, SQC
Pan Size ø 3.54" / 90 mm
Calibration AutoCal - automatic internal
Construction Modular design, metal base, ABS top housing, stainless steel pan, glass draft shield with top mounted side doors and flip/sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, full housing in-use cover
Tare Range To capacity by subtraction
Power Requirements AC adapter input: 100-240 VAC, 0.6A, 50-60 Hz
Display Type Full color VGA graphic display, 4-wire resistive touch screen
Display Size 5.7" / 145 mm (diagonal)
Display Housing (W x H x D) 7.68" x 3.54" x 6.06" / 195 mm x 90 mm x 154 mm
Base Housing (W x H x D) 9.06" x 13.78" x 15.47" / 230 mm x 350 mm x 393 mm
Communication RS-232, USB and optional Ethernet or 2nd RS-232 (purchased separately)
Temperature Range 50° F to 86° F (10° C to 30° C)
Humidity Range 80% max up to 86° F / 30° C decreasing linearly to 50% at 104° F / 40° C, non-condensing
Storage Conditions 140° F / 60° C at 10% to 90% relative humidity, non-condensing
Net Weight 15 lb / 6.9 kg

For specifications related to the Unites States Pharmacopoeia (USP) minimum weight standard visit www.Ohaus.com/USPMinWeight
