Ohaus D61XWE2WQS6 Defender 6000 Hybrid Column Mount Washdown Bench Scale, 5 lb x 0.001 lb, NTEP Certified

Item #CSI-D61XWE2WQS6

Be the first to review this product

10%off

Availability: In stock

List Price: $2,035.00

Now: $1,831.50

You Save $203.50
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $110.00
Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN 80251992) SKU: 80251992 $1,005.00
  • RS232 cable, CKW, TxxXW (OHA-PN 80500552) (PN 80500552) SKU: 80500552 $237.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • PCBA kit, alibi memory, R71, T71 (OHA-PN 80500503) (PN 80500503) SKU: 80500503 $162.00
  • Discrete I/O kit, 2-in/4-out, R71 (OHA-PN 30097591) (PN 30097591) SKU: 30097591 $204.00
  • 2nd RS232/RS485/USB, TD52 (OHA-PN 30424404) (PN 30424404) SKU: 30424404 $220.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN 30429666) SKU: 30429666 $220.00
  • Analog Output Kit, TD52 (OHA-PN 30424403) (PN 30424403) SKU: 30424403 $220.00
  • Light Tower, R-Y-G, IP65, 24VDC, requires PN 30097591 (OHA-PN 30424021) (PN 30424021) SKU: 30424021 $254.00
  • WiFi/BT Dongle, requires PN 30424406 (OHA-PN 30412537) (PN 30412537) SKU: 30412537 $303.00
  • LC Extension Cable, 9 meters, D52 (OHA-PN 30424409) (PN 30424409) SKU: 30424409 $220.00
  • M16 Gland with Ferrite, to TD52 (OHA-PN 30379716) (PN 30379716) SKU: 30379716 $29.00
  • Stainless steel wheel kit for Defender bases up to 300 lb capacity (OHA-PN 30616409) (PN 30616409) SKU: 30616409 $220.00
Overview

  • NTEP certified, NSF listed, USDA-AMS accepted, supports HACCP systems

  • Applications: Weighing, Check Weighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling

  • Display: 6-digit, 7-segment white LED with 20 mm (0.8") high digits and 3-color (red, green, orange) 8 x 16 dot matrix LED checkweighing/filling display

  • Power: Hardwired internal AC power supply included

  • Communication: RS232 and USB host, included; optional 2nd RS232/RS485/USB device, analog output, Wi-Fi/Bluetooth, Ethernet and Discrete I/O available separately

  • Construction: 304 stainless steel frame, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel, IP67 load cell

  • Design Features:150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet

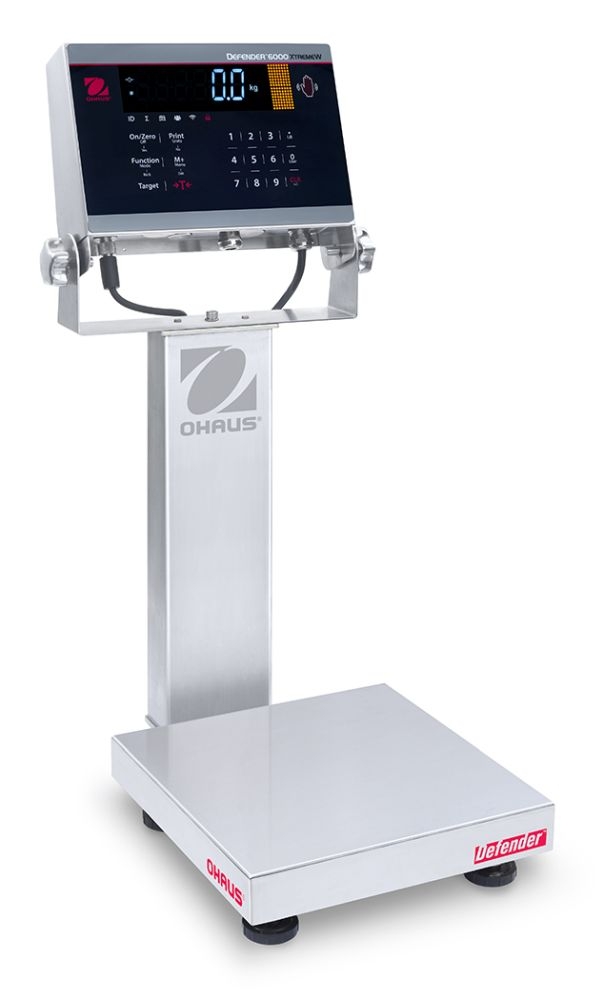

Ohaus D61XWE2WQS6 Defender 6000 Hybrid Column Mount Washdown Bench Scale, 5 lb x 0.001 lb, NTEP Certified

Details

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.

i-DT61XWE Indicator Specifications
Construction 316 stainless steel housing, 316 stainless steel bracket
Protection IP68 immersion / IP69K washdown
Weighing Units Kilogram, gram, pound, ounce, pound:ounce
Application Modes Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling
Display 6-digit, 7-segment white LED, 20 mm (0.8") high digits
Check Indicator 3 color (red, green, orange) 8 x 16 dot matrix LED
Keyboard 6 function keys + 12 numeric capacitive keypad
Auto-Zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 and USB Host included. Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O, available separately.
Power 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or external power bank
Battery Life Depends on the capacity of the power bank used (up to 55 hours with 20,000mAh power bank)
Calibration Zero, Span or 3 point-Linear
Column Mount Bench Scale Specifications
Capacity x Default Readability

2.5 kg x 0.1 g

5 lb x 0.0002 lb

80 oz x 0.005 oz
Maximum Displayed Resolution
 1:25,000
Linearity/Repeatability ±2d
Capacity x Certified/Approved Readability

2.5 kg x 0.5 g

5 lb x 0.001 lb

80 oz x 0.02 oz
Maximum Certified Resolution

1:5,000
Column
 13.8" (350 mm) stainless steel
Base Construction
 Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity
 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size 10" x 10" (254 mm x 254 mm)
Overall Dimensions 10" x 15.1" x 24.1" (254 mm x 383 mm x 613 mm)
Approximate Net Weight 22.1 lb (10 kg)
