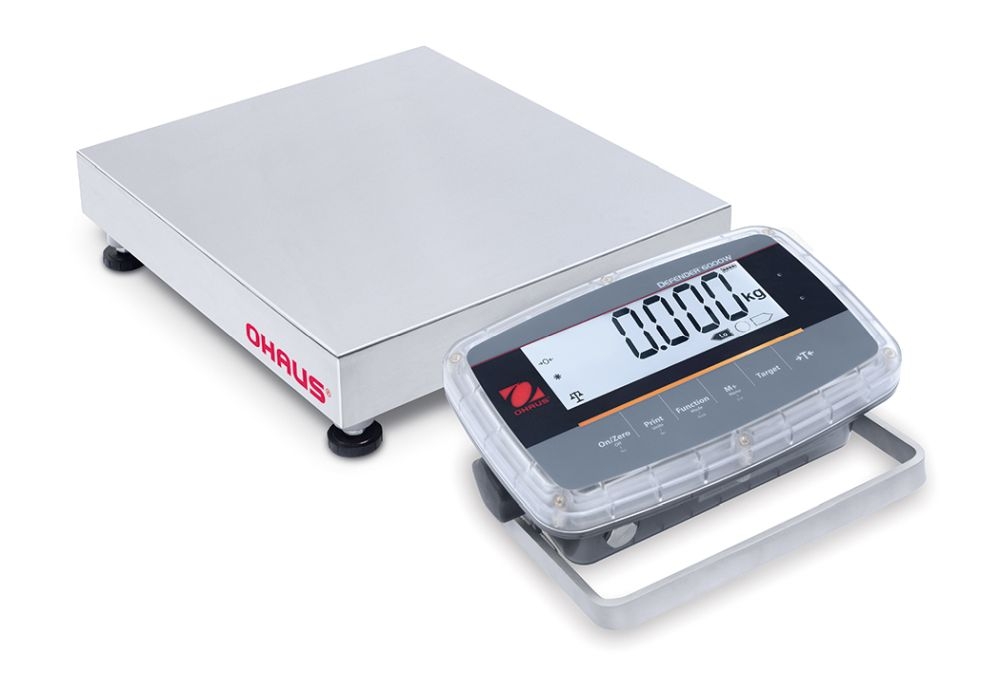

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
i-DT61PW Indicator Specifications | |
---|---|
Construction | Polycarbonate plastic housing, 316 stainless steel bracket |
Protection | IP68 immersion / IP69K washdown |
Weighing Units | Kilogram, gram, pound, ounce, pound:ounce, tonne (metric tonne) |
Application Modes | Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting |
Display | 6-digit, 7-segment LCD with white backlight, 45 mm (1.8") high digits |
Check Indicator | 3 color (red, green, yellow) LED bar |
Keyboard | 6 function mechanical keys |
Auto-Zero Tracking | Off, 0.5 d, 1 d or 3 d |
Zeroing Range | 2% or 100% of capacity |
Interface | Optional IR Communication Kit (with magnetic front panel connection), available separately |
Power | 6 x "D" type (LR20) batteries |
Battery Life | Up to 1,600 hours continuous use with backlight off |
Calibration | Zero, Span or 3 point-Linear |
Front Mount Bench Scale Specifications | |
Capacity x Default Readability |
12.5 kg x 0.5 g 25 lb x 0.001 lb 400 oz x 0.02 oz |
Maximum Displayed Resolution |
1:25,000 |
Linearity/Repeatability | ±2d |
Capacity x Certified/Approved Readability |
12.5 kg x 5 g 25 lb x 0.005 lb 400 oz x 0.1 oz |
Maximum Certified Resolution |
1:5,000 |
Mount |
316 stainless steel front-mount bracket with handle |
Base Construction |
Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell |
Safe Overload Capacity |
150% of maximum capacity |
Stabilization Time | Within 1 second |
Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
Platform Size | 12" x 12" (305 mm x 305 mm) |
Overall Dimensions | 12" x 23.1" x 5.1" (305 mm x 588 mm x 129 mm) |
Approximate Net Weight | 24.3 lb (11 kg) |
