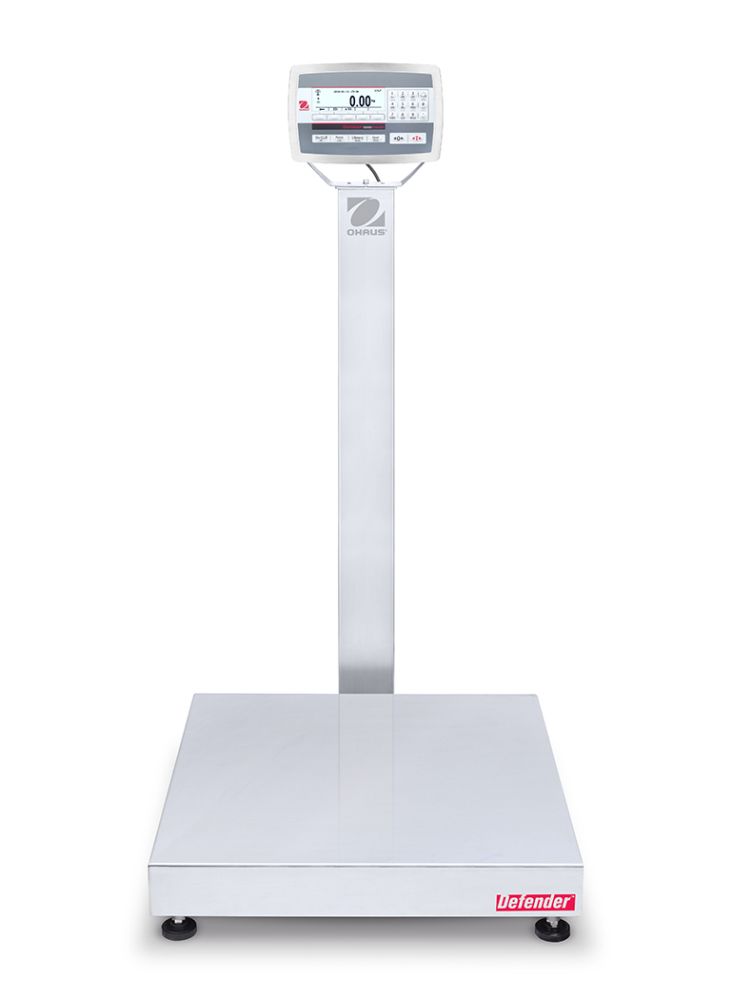

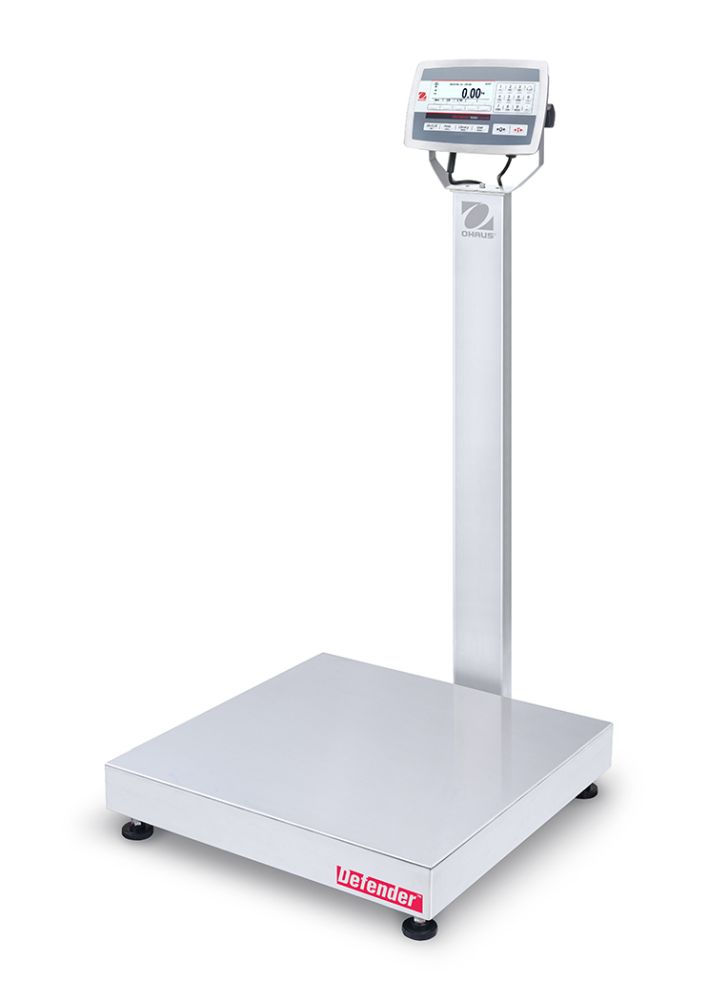

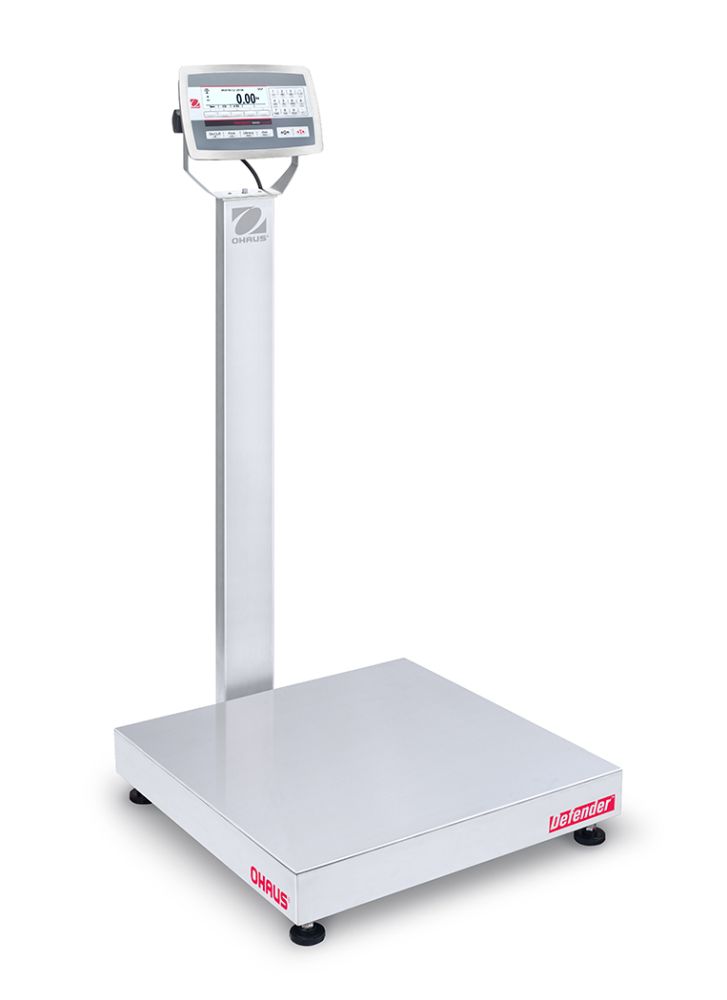

Ohaus D52XW125WQV8 Defender 5000 Column Mount Washdown Bench Scale, 250 lb x 0.05 lb, NTEP Certified

Item #CSI-D52XW125WQV8

Be the first to review this product

10%off

Availability: In stock

List Price: $3,995.00

Now: $3,595.50

You Save $399.50
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $215.00
Accessories
  • Light Tower, R-Y-G, IP65, 24VDC, requires PN 30097591 (OHA-PN 30424021) (PN 30424021) SKU: 30424021 $254.00
  • USB host for WiFi/Bluetooth/Flash Drive (OHA-PN 30572923) (PN 30572923) SKU: 30572923 $177.00
  • Printer Holder Kit, D52 (OHA-PN 30424025) (PN 30424025) SKU: 30424025 $83.00
  • M16 Gland with Ferrite, to TD52 (OHA-PN 30379716) (PN 30379716) SKU: 30379716 $29.00
  • LC Extension Cable, 9 meters, D52 (OHA-PN 30424409) (PN 30424409) SKU: 30424409 $220.00
  • In-use Cover, 10 pcs, TD52XW (OHA-PN 30469949) (PN 30469949) SKU: 30469949 $290.00
  • In-use Cover, 1 pc, TD52XW (OHA-PN 30424023) (PN 30424023) SKU: 30424023 $37.00
  • Battery Kit, Li-ion, TD52 (OHA-PN 30424405) (PN 30424405) SKU: 30424405 $263.00
  • USB Host for WiFi/BT Dongle, TD52 (OHA-PN 30424406) (PN 30424406) SKU: 30424406 $185.00
  • WiFi/BT Dongle, requires PN 30424406 (OHA-PN 30412537) (PN 30412537) SKU: 30412537 $303.00
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN 80251992) SKU: 80251992 $1,005.00
  • Analog Output Kit, TD52 (OHA-PN 30424403) (PN 30424403) SKU: 30424403 $220.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN 30429666) SKU: 30429666 $220.00
  • 2nd RS232/RS485/USB, TD52 (OHA-PN 30424404) (PN 30424404) SKU: 30424404 $220.00
  • Discrete I/O kit, 2-in/4-out, R71 (OHA-PN 30097591) (PN 30097591) SKU: 30097591 $204.00
  • Wheel kit, for Defender up to 600 lb capacity (OHA-PN 30372146) (PN 30372146) SKU: 30372146 $177.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • RS232 cable, CKW, TxxXW (OHA-PN 80500552) (PN 80500552) SKU: 80500552 $237.00
  • WinWedge software (OHA-PN 80850080) (PN 80850080) SKU: 80850080 $702.00
Overview

  • Applications: Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)

  • Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display

  • Power: Hardwired internal AC power supply included or optional internal rechargeable battery (sold separately)

  • Communication: Standard RS232, MicroSD card slot included; optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, analog output, or 2 In/4 Out Discrete I/O (available separately)

  • Construction: All stainless steel platform, base frame, indicator, column and loadcell

  • Design Features: Up to 25,000d/5,000e NTEP Class III certified, GMP/GLP output with time/date, EasyConnect connector allows fast set up

Ohaus D52XW125WQV8 Defender 5000 Column Mount Washdown Bench Scale, 250 lb x 0.05 lb, NTEP Certified

Details

The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

TD52XW Indicator Specifications
Construction 304 stainless steel with sand blasted surface treatment
Protection IP68 / NEMA 4X
Weighing Units lb, oz, lb:oz, kg, g, metric ton, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-Zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, rechargeable lithium battery (optional)
Battery Life 20 hours of continuous use
Calibration Zero, Span or 3 point-Linear
Column Mount Bench Scale Specifications
Capacity x Readability

250 lb x 0.01 lb

125 kg x 5 g
Maximum Displayed Resolution
 1:25,000
Capacity x Certified Readability

250 lb x 0.05 lb

125 kg x 50 g
Min APW 0.25 g
Internal Counting Resolution
 1:500,000
Linearity/Repeatability ± 2d
Column
 38.6" (980 mm) stainless steel
Base Construction
 Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity
 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size 24" x 24" (610 mm x 610 mm)
Approximate Net Weight 88.2 lb (40 kg)
