Ohaus D33XW75B1R5 Defender 3000 Front Mount Hybrid Bench Scale, 150 lb x 0.05 lb, NTEP Certified

Item #CSI-D33XW75B1R5

Be the first to review this product

30%off

Availability: In stock

List Price: $1,050.00

Now: $735.00

You Save $315.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $120.00
Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN 80251992) SKU: 80251992 $1,005.00
  • WinWedge software (OHA-PN 80850080) (PN 80850080) SKU: 80850080 $702.00
  • RS232 cable, CKW, TxxXW (OHA-PN 80500552) (PN 80500552) SKU: 80500552 $237.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • Wheel kit, for Defender up to 600 lb capacity (OHA-PN 30372146) (PN 30372146) SKU: 30372146 $177.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN 30429666) SKU: 30429666 $220.00
  • Stainless steel wheel kit for Defender bases up to 300 lb capacity (OHA-PN 30616409) (PN 30616409) SKU: 30616409 $220.00
  • USB Device Interface Kit for Defender 3000 i-DT33XW and P Indicators (OHA-PN 30699120) (PN 30699120) SKU: 30699120 $123.00
  • Set of 5 Dust Covers for Defender 3000 i-DT33 (OHA-PN 30699121) (PN 30699121) SKU: 30699121 $62.00
Overview

  • Applications: weighing, parts counting, checkweighing and totalization

  • Display: 6-digit, 7-segment LCD with multi-color backlight

  • Operation: AC (included) or rechargeable battery (included)

  • Communication: RS232 standard; USB Device or Ethernet optional (available as accessories)

  • Construction: stainless steel indicator, 304 stainless steel platform, powder coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet

  • Design Features: 150% overload protection

  • NTEP Certified

Ohaus D33XW75B1R5 Defender 3000 Front Mount Hybrid Bench Scale, 150 lb x 0.05 lb, NTEP Certified

Details

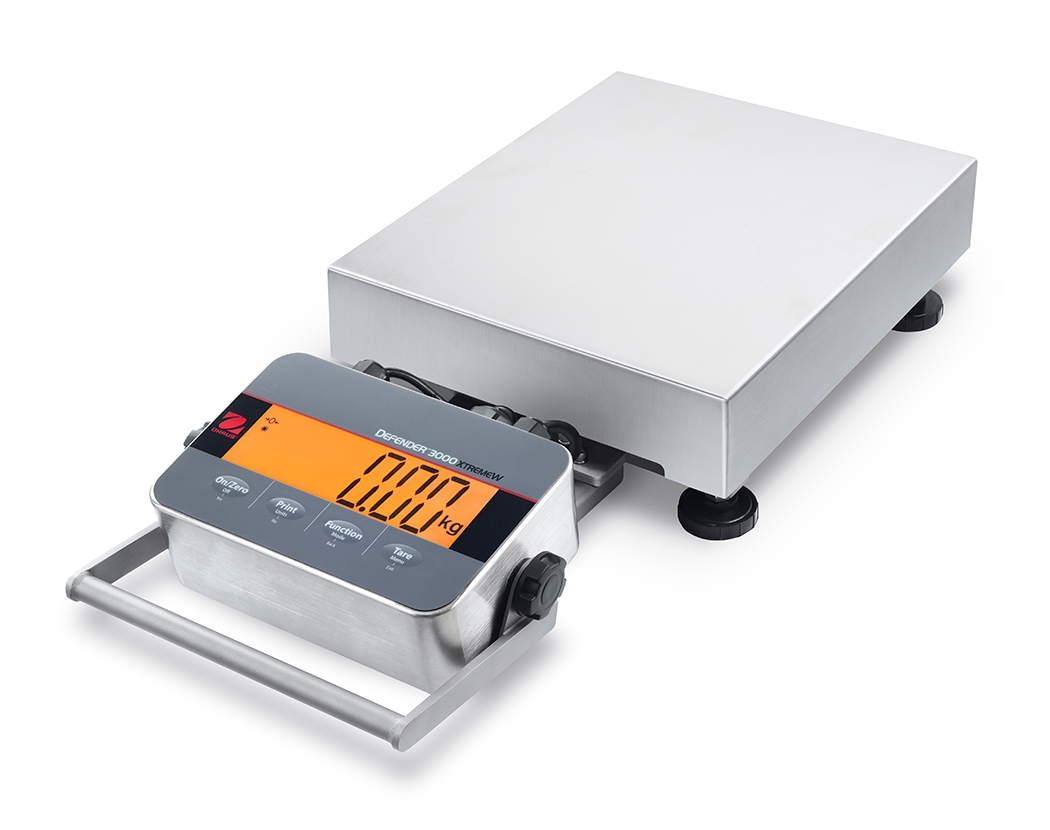

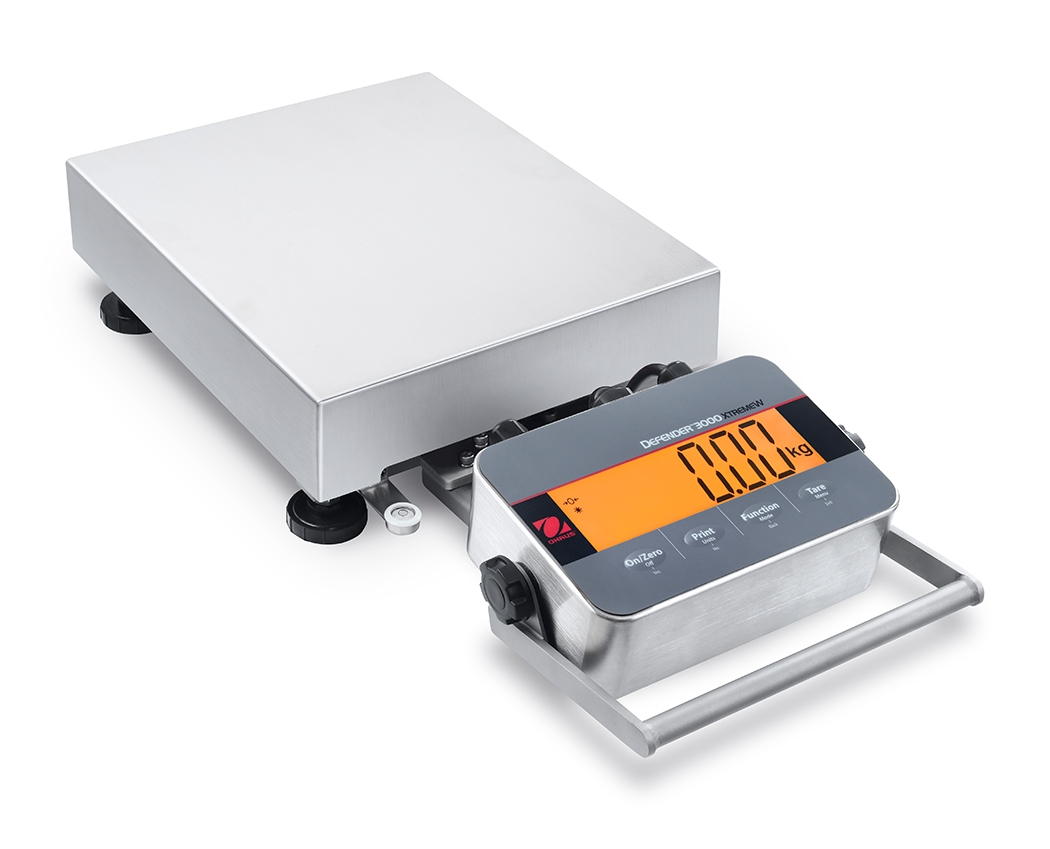

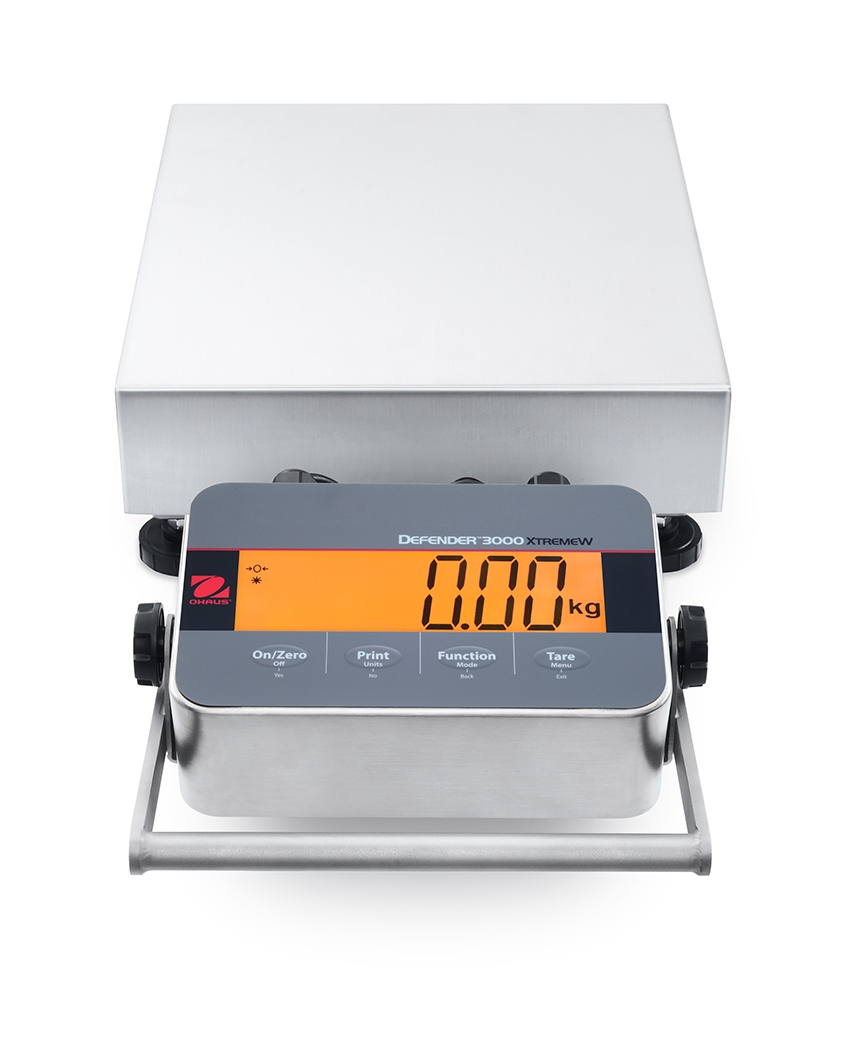

The Defender 3000 Hybrid bench scales are ideal for general weighing, simple counting, and checkweighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged design and stainless steel indicator with tactile keys, multicolor backlit LCD display, and built-in rechargeable battery.

Capacity x Default Readability

75 kg x 10 g

150 lb x 0.02 lb

2,400 oz x 0.5 oz
Capacity x Certified/Approved Readability

75 kg x 50 g

150 lb x 0.05 lb

2,400 oz x 1 oz
Maximum Displayed Resolution 1:7,500
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000

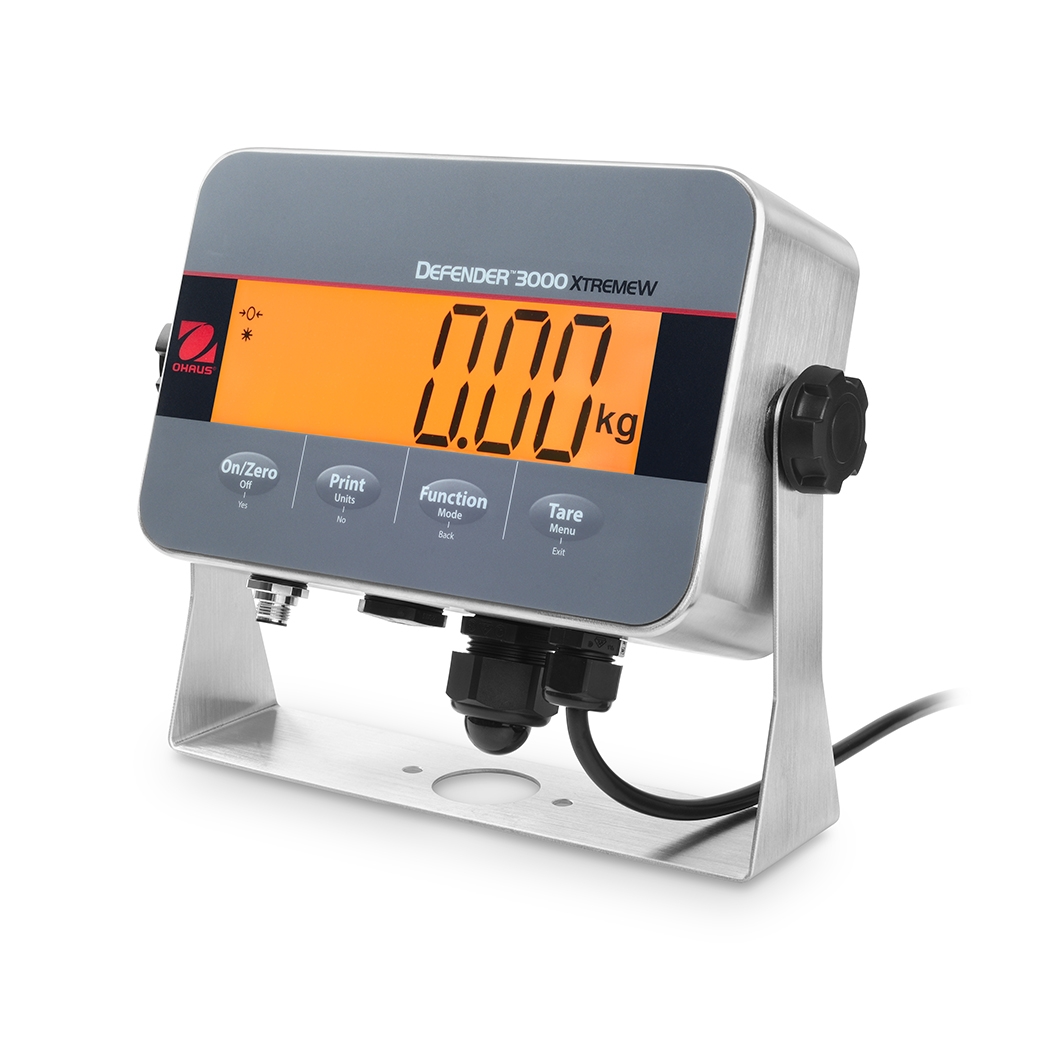

Indicator Construction
 304 stainless steel housing and front-mount bracket
Weighing Units kilogram, gram, pound, ounce, pound:ounce
Application Modes Weighing, parts counting, checkweighing and totalization
Display 6-digit, 7-segment LCD display with multi-color backlight, 1.8" (45 mm) high digits

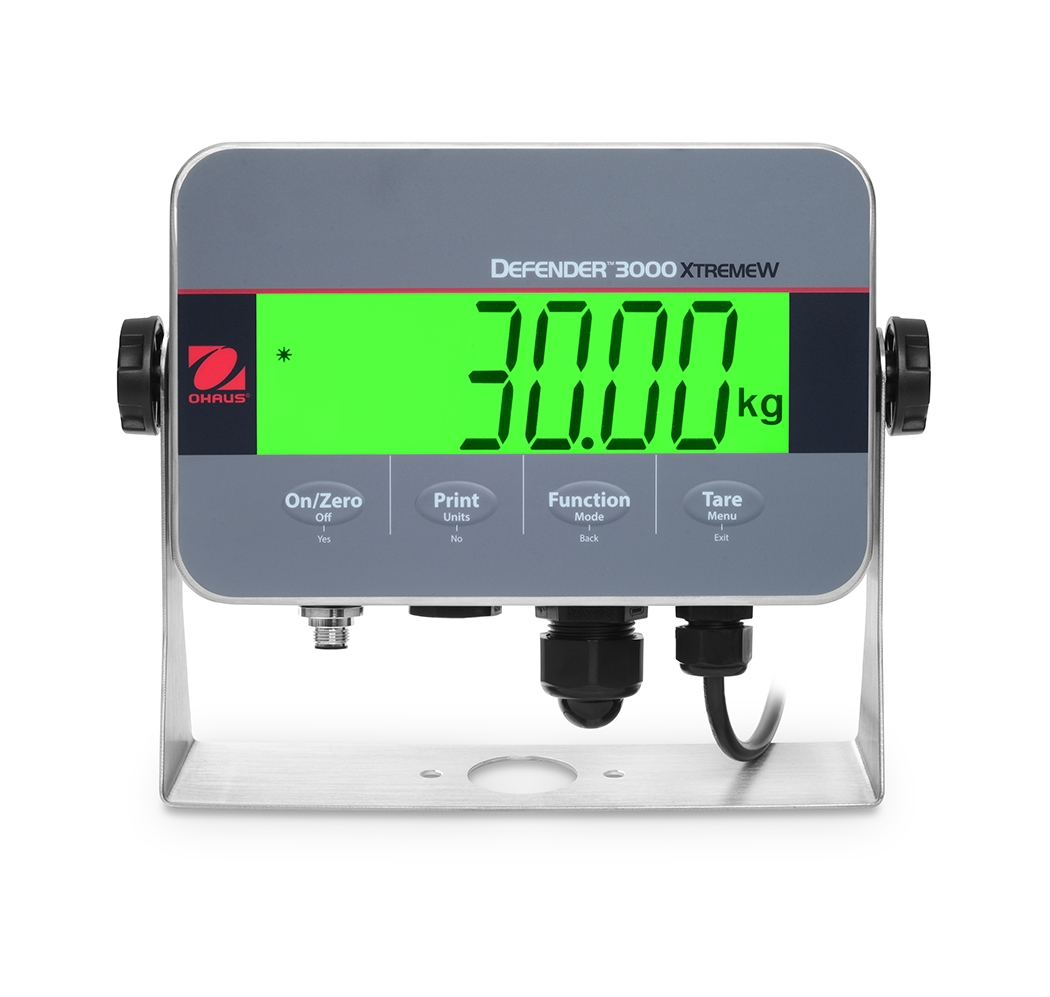

Check Indicator 3-color (red, green, yellow) backlight
Keyboard 4 membrane function keys
Auto-zero Tracking Off, 0.5 d, 1 d, or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 included, optional second port USB Device or Ethernet available separately as an accessory
Power 100-240 VAC / 50/60 Hz universal power supply, hardwired or standard internal rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off
Calibration Zero, span, or 3-point linear

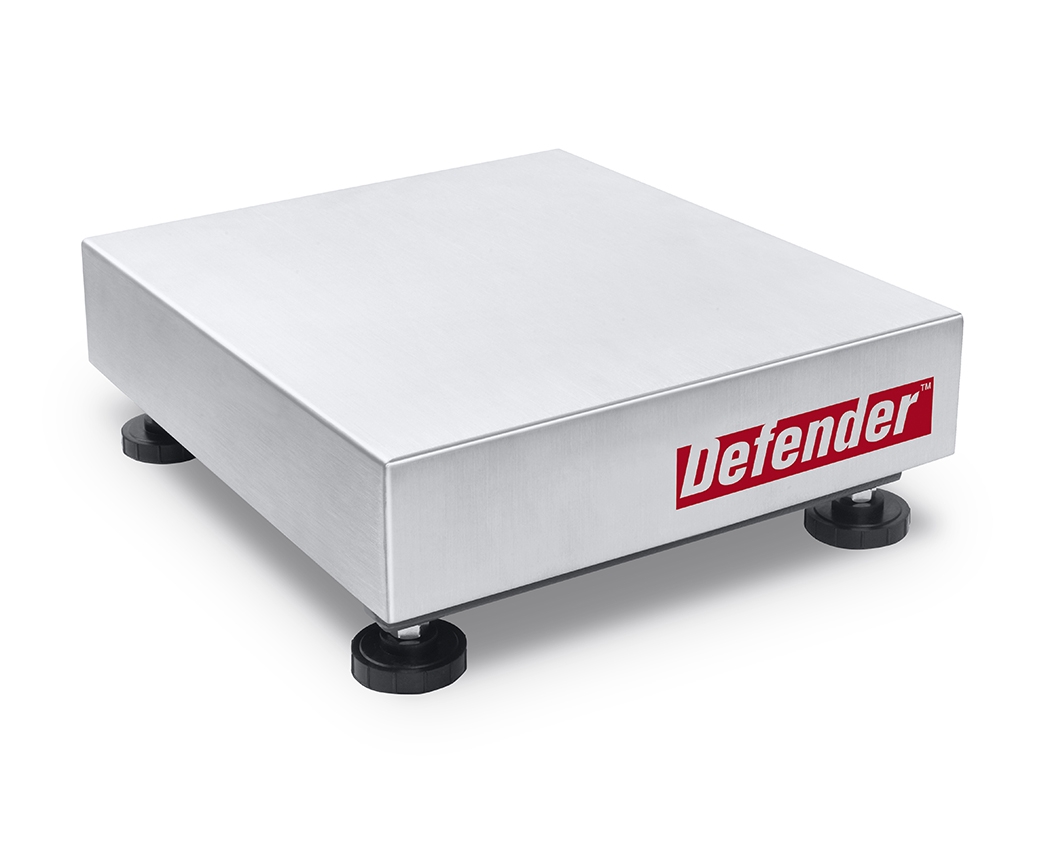

Base Construction Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity
 150% of rated capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size (L x W x H) 14" x 12" x 4.8" (355 mm x 305 mm x 122 mm)
Scale Dimensions (L x W x H) 25.4" x 12" x 5.1" (646 mm x 305 mm x 130 mm)
Approximate Net Weight 25.1 lb (11.4 kg)
