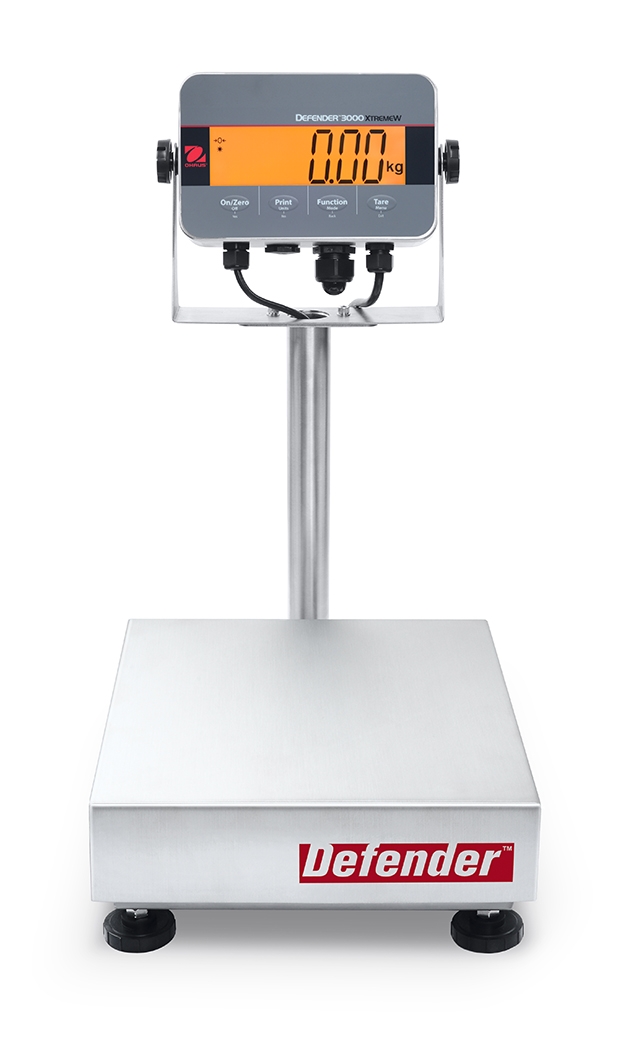

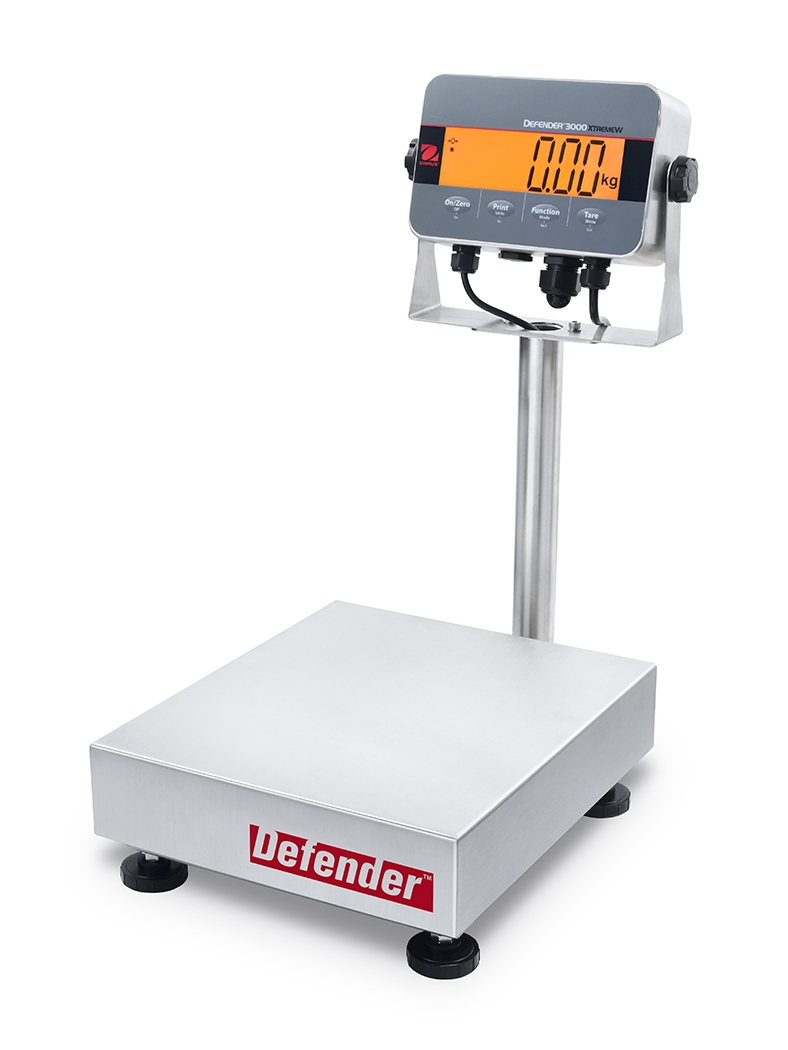

Ohaus D33XW30C1R6 Defender 3000 Column Mount Washdown Bench Scale, 60 lb x 0.02 lb, NTEP Certified

Item #CSI-D33XW30C1R6

Be the first to review this product

30%off

Availability: In stock

List Price: $1,795.00

Now: $1,257.02

You Save $537.98
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $105.00
Accessories
  • STP-103 compact thermal printer (OHA-PN 80251992) (PN 80251992) SKU: 80251992 $1,005.00
  • WinWedge software (OHA-PN 80850080) (PN 80850080) SKU: 80850080 $702.00
  • RS232 cable, CKW, TxxXW (OHA-PN 80500552) (PN 80500552) SKU: 80500552 $237.00
  • SF40A compact dot matrix impact printer (OHA-PN 30064203) (PN 30064203) SKU: 30064203 $1,303.00
  • Wheel kit, for Defender up to 600 lb capacity (OHA-PN 30372146) (PN 30372146) SKU: 30372146 $177.00
  • Ethernet Kit, DT33, TD52, DT61 (OHA-PN 30429666) (PN 30429666) SKU: 30429666 $220.00
  • Stainless steel wheel kit for Defender bases up to 300 lb capacity (OHA-PN 30616409) (PN 30616409) SKU: 30616409 $220.00
  • USB Device Interface Kit for Defender 3000 i-DT33XW and P Indicators (OHA-PN 30699120) (PN 30699120) SKU: 30699120 $123.00
  • Set of 5 Dust Covers for Defender 3000 i-DT33 (OHA-PN 30699121) (PN 30699121) SKU: 30699121 $62.00
Overview

  • Applications: weighing, parts counting, checkweighing and totalization

  • Display: 6-digit, 7-segment LCD with multi-color backlight

  • Operation: AC (included) or rechargeable battery (included)

  • Communication: RS232 standard; USB Device or Ethernet optional (available as accessories)

  • Construction: 304-stainless steel platform and frame, IP67 load cell. Indicator features an IP66 washdown protected 304-stainless steel housing with mounting bracket.

  • Design Features: 150% overload protection

  • NTEP Certified

Ohaus D33XW30C1R6 Defender 3000 Column Mount Washdown Bench Scale, 60 lb x 0.02 lb, NTEP Certified

Details

The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multi-color backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.

Capacity x Default Readability

30 kg x 5 g

60 lb x 0.01 lb

960 oz x 0.2 oz
Capacity x Certified/Approved Readability

30 kg x 10 g

60 lb x 0.02 lb

960 oz x 0.5 oz
Maximum Displayed Resolution 1:6,000
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000

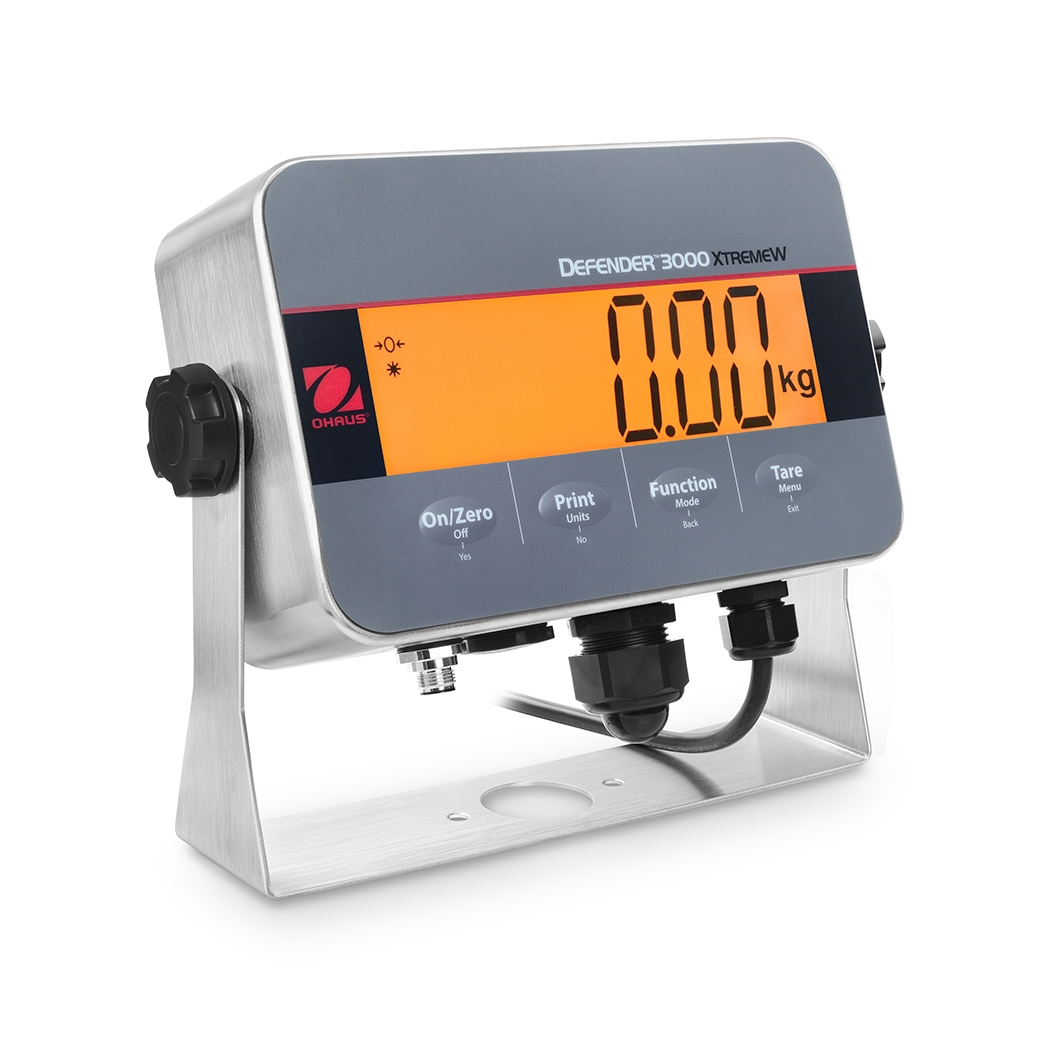

Indicator Construction
 304 stainless steel housing and mounting bracket, IP66
Weighing Units kilogram, gram, pound, ounce, pound:ounce
Application Modes Weighing, parts counting, checkweighing and totalization
Display 6-digit, 7-segment LCD display with multi-color backlight, 1.8" (45 mm) high digits

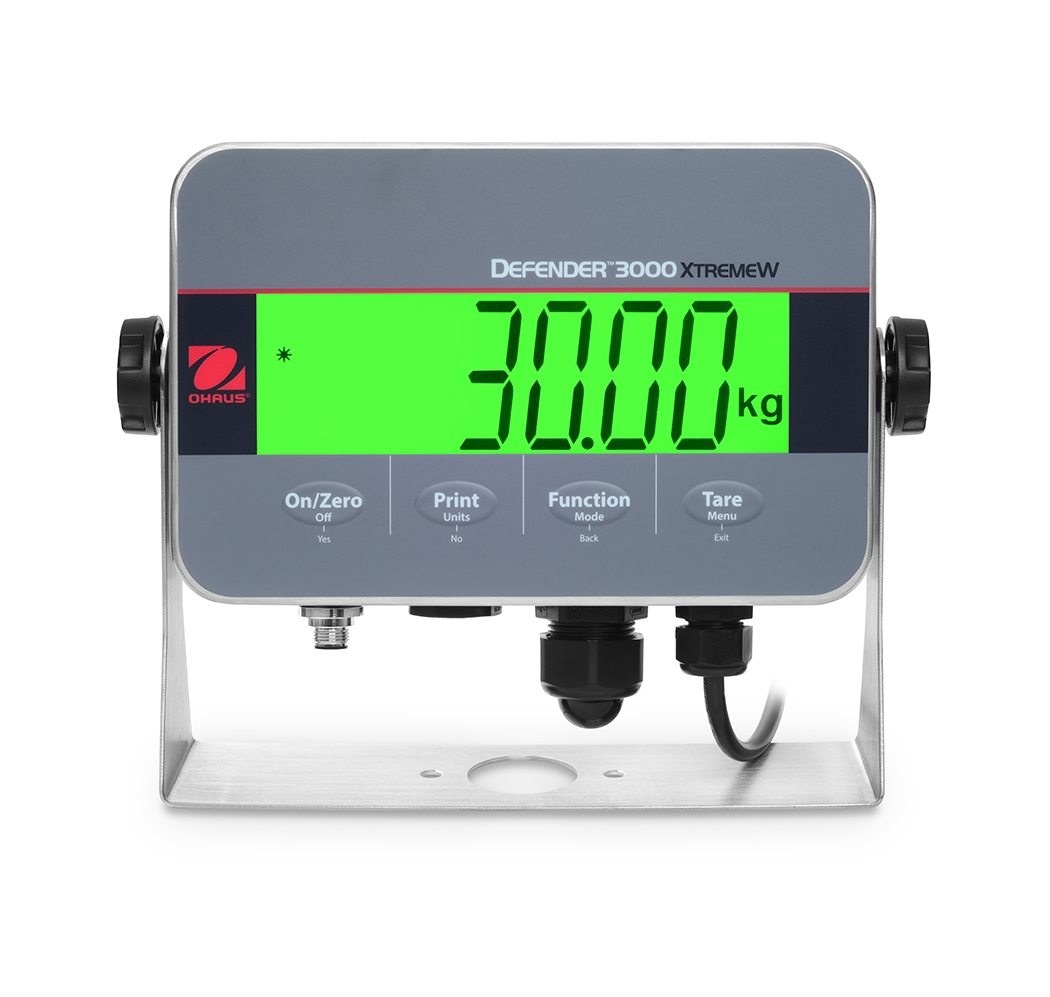

Check Indicator 3-color (red, green, yellow) backlight
Keyboard 4 membrane function keys
Auto-zero Tracking Off, 0.5 d, 1 d, or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 included, optional second port USB Device or Ethernet available separately as an accessory
Power 100-240 VAC / 50/60 Hz universal power supply, hardwired or standard internal rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off
Calibration Zero, span, or 3-point linear
Column
 13" (330 mm) powder-coated steel
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel load cell
Safe Overload Capacity
 150% of rated capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
Platform Size (L x W x H) 14" x 12" x 4.8" (355 mm x 305 mm x 121.8 mm)
Scale Dimensions (L x W x H) 19" x 12" x 21.3" (481.9 mm x 305 mm x 541.6 mm)
Approximate Net Weight 27.1 lb (12.3 kg)
