Details

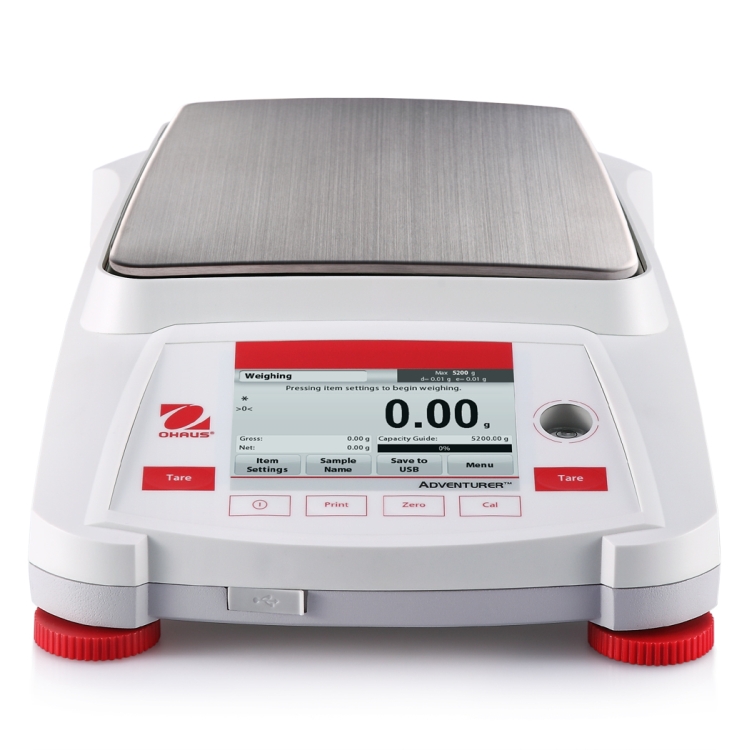

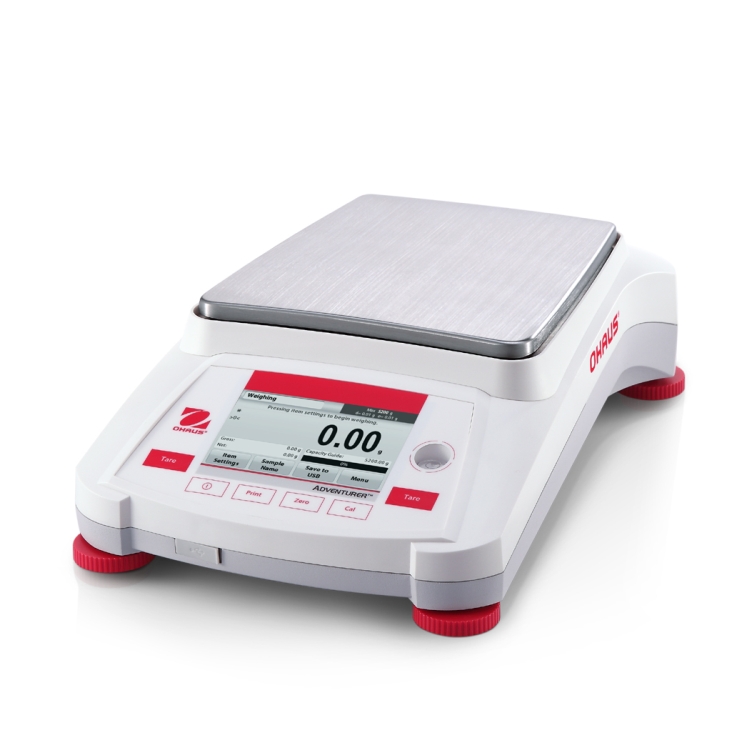

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Capacity	12,000 g
Readability d	0.1 g
"Repeatability (sd.) ≤5% of Full Load"	0.08 g
Repeatability (sd.), 5% of Full Load to Full Range	0.1 g
Linearity Deviation, Typical	±0.06 g
Linearity Deviation	±0.2 g
Stabilization Time	≤1.5 seconds
Sensitivity Drift	5 ppm/°C
Min-Weight (Typical) (USP, K=2, U=0.10%)	160 g
"Min-Weight (Optimal) (USP, K=2, U=0.10%, SRP ≤0.41d)**	82 g
Weighing Units	gram, kilogram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Weighing Applications	Weighing, parts counting, percent weighing, check weighing, dynamic weighing, formulation, density determination, totalization, display hold, batch printing

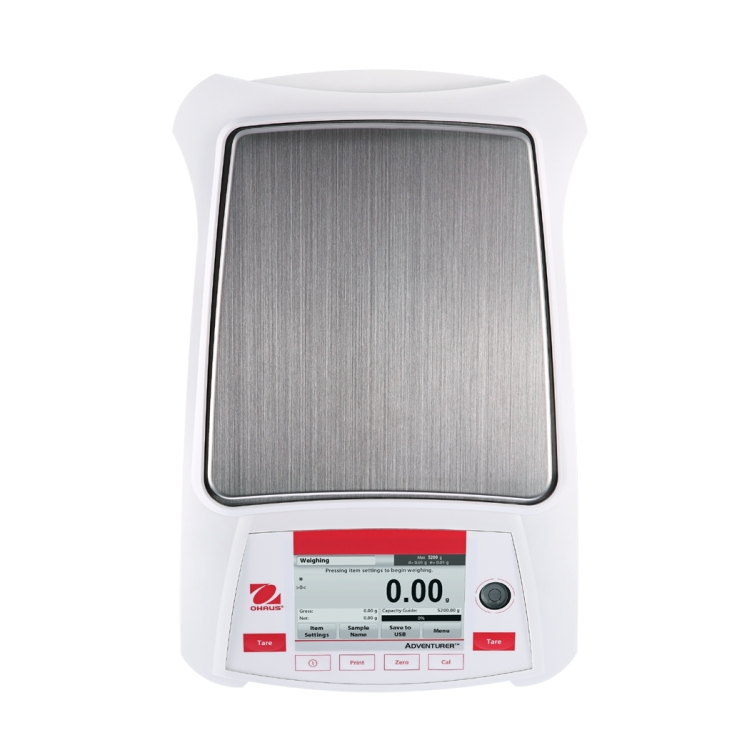

Pan Size	6.9" x 7.7" / 175 mm x 195 mm
Calibration	External
Tare Range	To capacity by subtraction
Power Requirements	AC adapter input: 100-240 VAC 0.3A 50-60 Hz AC adapter output: 12 VDC 0.84A
Display Type	Full-color touchscreen WQVGA Graphic LCD
Display Size	4.3" / 109 mm (diagonal)
Base Housing (W x H x D)	13.93" x 3.94" x 9.05" / 354 mm x 100 mm x 230 mm

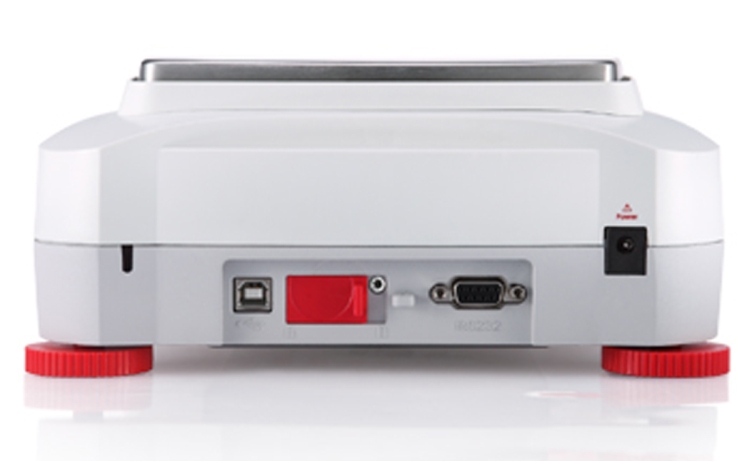

Communication	RS-232, USB device, USB host
Temperature Range	50° F to 86° F (10° C to 30° C)
Humidity Range	Maximum relative humidity 80% for temperatures up to 86° F / 30° C
Storage Conditions	14° F / -10° C to 140° F / 60° C at 10% to 90% relative humidity, non-condensing

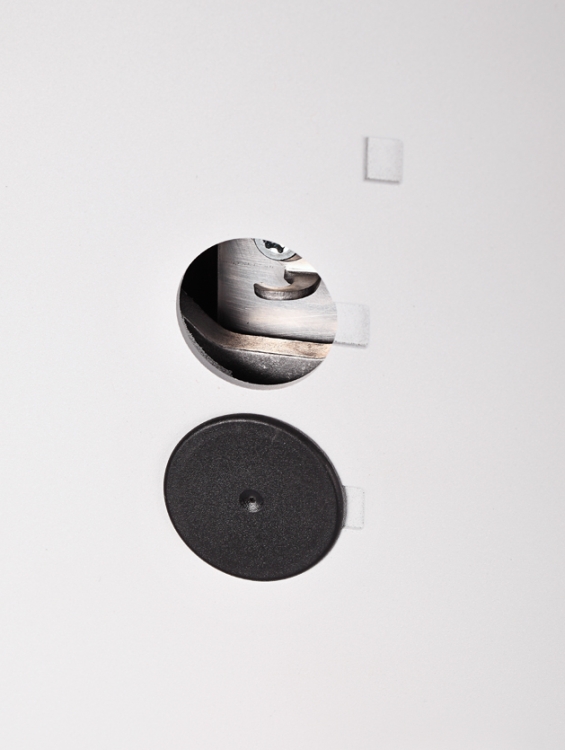

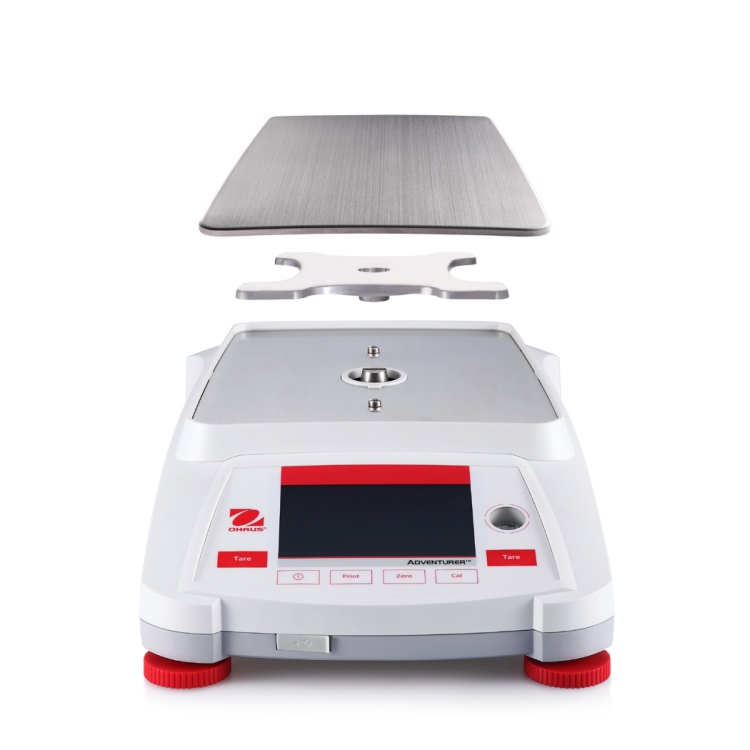

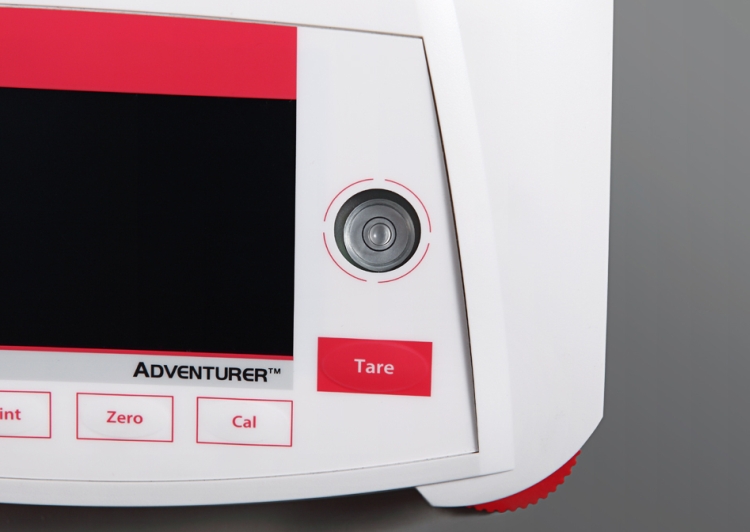

Construction	Metal base, ABS top housing, stainless steel pan, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
Net Weight	12.8 lb / 5.8 kg
