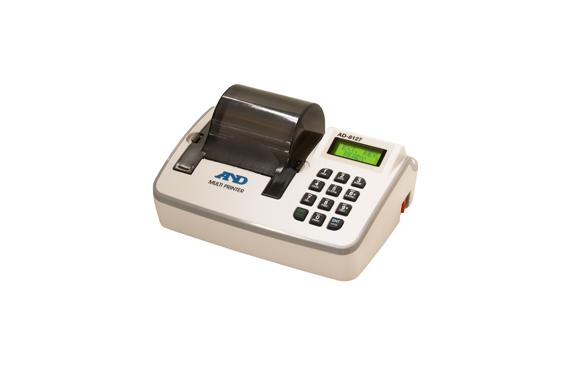

Multi-function printer (A&D-PN AD-8127)

Item #AD-8127

Be the first to review this product

Availability: In stock

$1,010.00
Accessories
  • Foot switch (A&D-PN SW:128) (PN SW:128) SKU: SW:128 $96.00
  • AC adapter, 120V, for FC-i, FC-Si, HR-i, GP, SV-10/-100, SV-A, GH, FR, FP, HA, HX (A&D-PN TB:636) (PN TB:636) SKU: TB:636 $45.00
  • Ink ribbon, set of 5 ribbons (A&D-PN AX-ERC-22B) (PN AX-ERC-22B) SKU: AX-ERC-22B $180.00
  • RS-232C cable, 9-pin to 25-pin, 0.9 m (A&D-PN AX-KO2116-090) (PN AX-KO2116-090) SKU: AX-KO2116-090 $62.00
  • RS-232C cable, 9-pin to 9-pin, 1 m (A&D-PN AX-KO2741-100) (PN AX-KO2741-100) SKU: AX-KO2741-100 $62.00
  • Current loop cable, 9-pin to DIN, 1 m (A&D-PN AX-KO5291-100) (PN AX-KO5291-100) SKU: AX-KO5291-100 $96.00
Overview

  • Easy setting and operation with a numeric keypad and LCD display

  • Built-in calendar and clock for printing date and time at any time

  • Sends re-zero and weighing data request commands to the balance/scale

  • Clear and visible dot matrix printing, which also enables long-term preservation of the printed records

  • Compact and lightweight for portability and installation anywhere

  • Interval printing mode for printing weighing data at set intervals

  • Chart printing mode for printing time-series variations of weighing data

  • Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from the balance/scale

Multi-function printer (A&D-PN AD-8127)

Details

Character Specifications 7 x 9 dots, 1.6 (W) x 3.2 (H) mm
Printing Speed Approximately 1.6 lines/second
Paper Feed Speed Approximately 4 lines/second
Number of Characters Printed 24 characters/line
Printer Paper Width 57.5 mm
Operating Environment 0°C to 40°C (32°F to 104°F), 35-85% RH (no condensation)
Storage Environment -20°C to 60°C (-4°F to 140°F), 10-90% RH (no condensation)
Interface RS-232C (D-Sub 9P, male) / Current loop (DIN)
Ink Ribbon Black; service life approximately 250,000 characters
Power Supply AC adapter
Size / Weight 174 (W) x 141 (D) x 87 (H) mm / approximately 500 g
Standard Accessories Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)
