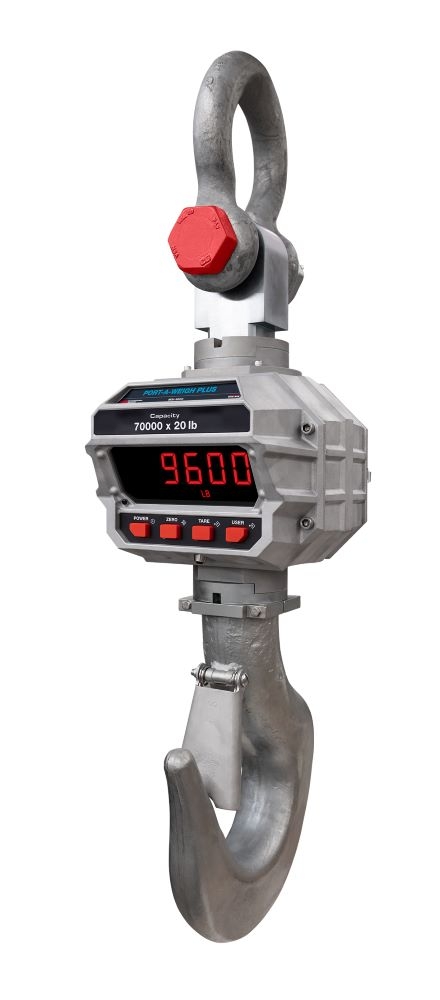

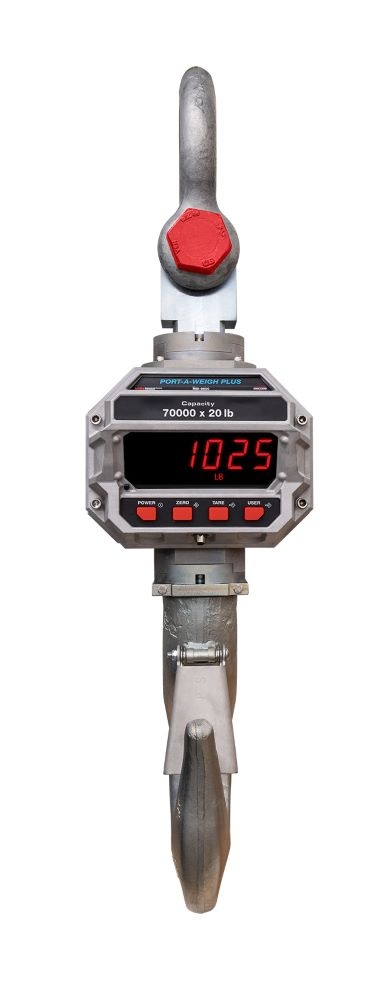

The MSI-9600HT Hi-Torque Port-A-Weigh Plus crane scale, integrated with ScaleCore technology, has models up to 200,000-pound capacity that captures weight within a +/- 0.2% accuracy. The MSI-9600HT has a unique configuration designed for heavy capacity coil handling, or other applications, reaching up to 100 tons. A fixed hook is featured for interface compatibility with crane hooks equipped with powered rotation and where high torque conditions exist between the crane hook and load.
The enclosure, made with IP66 marine grade alloy anodized aluminum, features a rear-battery casting with snap-closure—keeping everything weathertight. The MSI-9600HT’s crane scales vibrant, extra-large, six-digit LED display shows either red, green or orange digits, ensuring operators can view weight in any light condition. Internal setpoints can be used to program the display to change color when nearing an overload condition.
| Capacity | 70,000 lb (35,000 kg) |
|---|---|
| Readability | 20 lb (10 kg) |
| Accuracy | ± (0.1% +1d) of capacity |
| Resolution | 3000 to 5000 d standard |
| Enclosure | NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum |
| Lifting Eye, Shackle and Hook | Shackle is optional and Crosby fixed hook provided as standard |
| Design Overload | 200% safe / 500% ultimate |
| Functions |
Power: turns unit on or off Zero: zeros applied load up to 100% of capacity Tare: tares applied load and displays weight in net Mode F1: programmable as test, units, net/gross, total and peak hold |
| Display | 1.5" (38mm) 6-digit, programmable LED display, multi-color (red, orange, and green) |
| Displayable Units | Pounds or kilograms selectable |
| Power | 12 volt rechargeable battery,115/230 VAC battery charger included |
| Operating Time | Up to 30 hours between charging with typical use |
| Operating Temperature | 14°F to 131°F (-10°C to 55°C) |
| Filtering | OFF, LO, HI-1 or HI-2 selectable |
| Radio Link | 802.15.4 at 2.4 GHz |
| Radio Effective Range | Typically 100 to 300 feet line of sight |
| Warranty | One year limited |
