Details

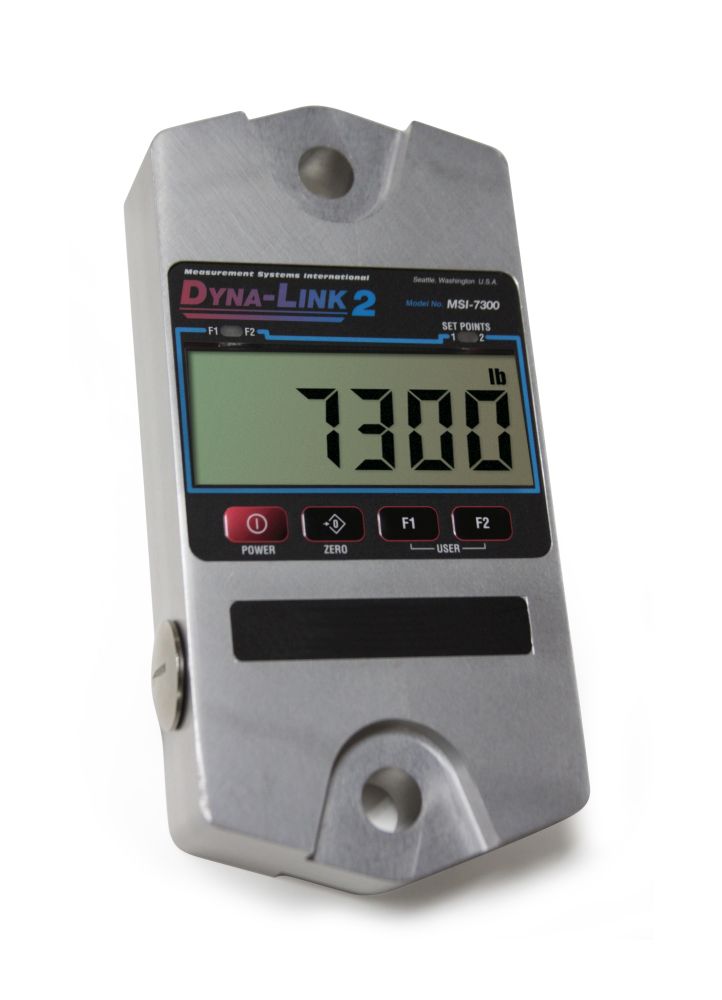

Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 and 8000HD RF remote display (with RF equipped units). Long-range viewing is enhanced by a large six-digit, 1 inch (25.4 mm) LCD display with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.
Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection. Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF remote display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30 m). An integrated serial port offers interface capabilities with data collection devices.
| Capacity | 50,000 lb (25,000 kg) |
|---|---|
| Readability | 20 lb (10 kg) |
| Accuracy | 0.1% of rated capacity |
| Enclosure | NEMA Type 4, IP65, anodized corrosion-resistant finish |
| Material | 2024 aircraft grade aluminum |
| Design Overload | 200% safe / 700 % ultimate |
| Functions | On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion Filter |
| Display | 6 digit, 1" (25.4 mm) LCD |
| Displayable Units | Pounds, kilograms, kilonewtons, tons, metric tons |
| LED Annunciators | Function 1, Function 2, Setpoint 1, Setpoint 2 |
| LCD Annunciators | Net, Center of Zero, Stable, Battery Test, Peak Hold, Total |
| Power | Two "D" alkaline batteries for capacities 25,000 lb and above |
| Operating Time | From 150 to 300 hours in typical use, depending on unit capacity and battery configuration |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Calibration | Digital |
| Filtering | OFF, LO, HI selectable |
| Data Output | Serial RS-232 |
| Warranty | Two year limited |
