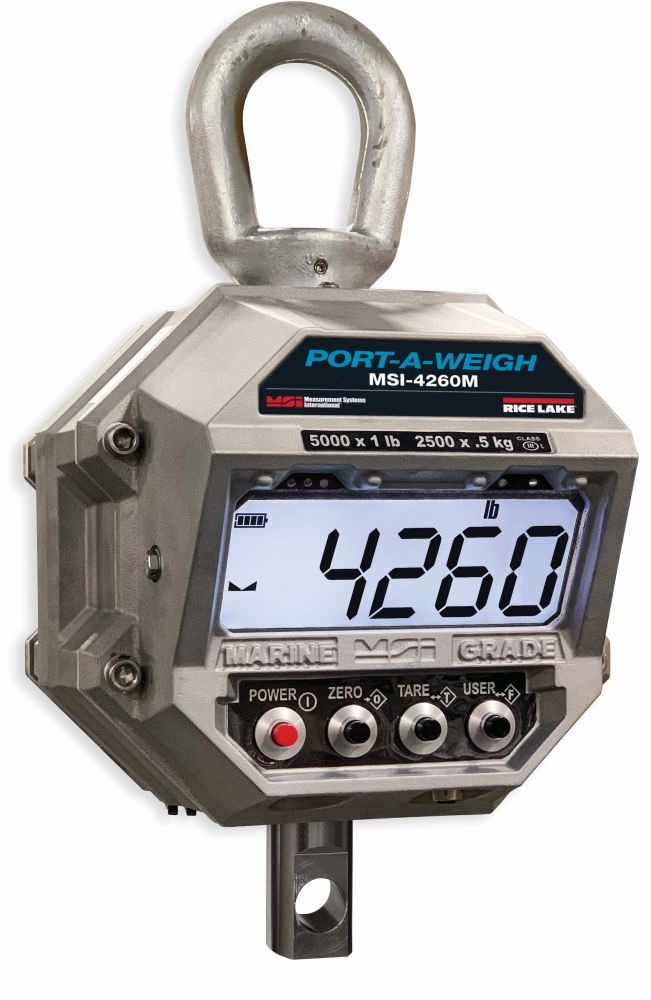

MSI-4260M Port-A-Weigh Marine Digital Crane Scale, 5000 lb x 1 lb, NTEP approved

Item #194593

Be the first to review this product

10%off

Availability: In stock

List Price: $5,310.00

Now: $4,779.00

You Save $531.00

Qty:

Accessories

Universal crane scale transport cart (RLW-PN 159221) (PN ) SKU: $1,340.00
MSI-8004HD Remote Display, AC, red/green, 85~264 VAC, 47~440 Hz, 120~370 VDC (RLW-PN 178281) (PN ) SKU: $2,120.00
MSI 10-point NIST traceable calibration report (RLW-PN MSI-CCI) (PN ) SKU: $525.00

Overview

IP66 cast aluminum

Top lifting eye with lower link interface

Five-digit, 1.75 in (44.5 mm) LCD with programmable brightness control

Battery operated, six (6) "D" cell 1.5V alkaline batteries

Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)

NTEP Certified configuration

MSI-4260M Port-A-Weigh Marine Digital Crane Scale, 5000 lb x 1 lb, NTEP approved

Specifications
Reviews

Details

The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with ± 0.1% accuracy with a standard 5,000 lb capacity.

An IP66 aluminum enclosure stands up to moisture in marine and washdown environments. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M's sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need - in any light condition.

In highly regulated marine applications, meeting safety requirements is crucial. The NTEP Certified MSI-4260M features a 200% Safe and 500% Ultimate Safety Factor, minimizing the risk of accidents from overloading.

The MSI-4260M is built to perform reliably for every catch with extended battery life up to 1,000 hours. A brightly lit battery display indicates when the unit is at 25%, 50%, 75% and full power. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning users are never surprised by a dead battery.

Choose equipment that works as hard as you do with the MSI-4260M crane scale, designed with dockside weighing in mind.

Capacity	5000 lb x 1 lb
Accuracy	± 0.1% + 1d of applied load
Resolution	Max NTEP Approved Class III: 2,500 divisions Max NTEP Approved Class IIIL: 5,000 divisions Max Non-NTEP Approved: 10,000 divisions
Enclosure	IP66 cast aluminum
Lifting Eye, Link & Hook	Top lifting eye with lower link interface
Design Overload	200% safe / 500% ultimate
Functions	Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration) Tare: Tares applied load and displays weight in Net mode User: Programmable as test, total, unit, peak hold, net/gross, view total and print
Display	Five-digit, 1.75" (44.5 mm) LCD with programmable brightness control
Displayable Units	Pounds or kilograms selectable
Annunciators	COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs
Power	Battery operated: six (6) "D" cell 1.5 V alkaline batteries
Operating Time	Up to 1,000 hours of battery life with typical use, less with RF Modem option
Operating Temperature	Legal for Trade: 14°F to 104°F (-10°C to 40°C) Operating: -20°F to 122°F (-28°C to 50°C)
Auto-Off Mode	Powers off after the scale is not used for the set time (in minutes) 15, 30, 45, 60 or OFF selectable
Auto Sleep Mode	Powers down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable
Service Counters	Counts number of lifts over percentage of capacity and lifts over capacity
Calibration	Digital (procedure initiated by calibration switch)
Filtering	OFF, LO, HI-1, HI-2 selectable
Warranty	One year limited
Approvals	NTEP COC 19-122
