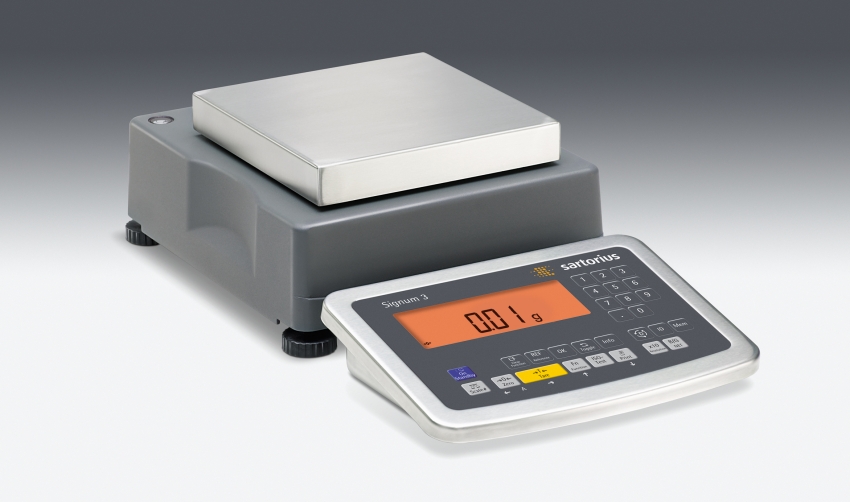

Minebea Intec SIWXSBBP-V51 Preconfigured Signum Explosion Protected Scale, 6.1 kg x 0.01 g
Minebea Intec SIWXSBBP-V51 Preconfigured Signum Explosion Protected Scale, 6.1 kg x 0.01 g
Minebea Intec SIWXSBBP-V51 Preconfigured Signum Explosion Protected Scale, 6.1 kg x 0.01 g

Minebea Intec SIWXSBBP-V51 Preconfigured Signum Explosion Protected Scale, 6.1 kg x 0.01 g

SIWXSBBP-V51
Be the first to review this product
12%off

Availability: In Stock

List Price: $6,290.00

Now: $5,535.00

You Save $755.00
Free Shipping on this product

Calibration Method

Calibration ensures Regulatory and Audit Compliance

Accessories
  • Safe area power supply (MI-PN YPS02-ZKR) SKU: YPS02-ZKR $1,600.00
  • Stainless steel brackets for wall mounting, tiltable (MI-PN YDH02CISUS) SKU: YDH02CISUS $123.00
  • Column for Signum BBP models, height 15.75″ (MI-PN YDH02P) SKU: YDH02P $754.00
  • External rechargeable battery for installation in FM, for Class 1, Div. 2 (MI-PN YRB02-X) SKU: YRB02-X $1,897.00
  • Battery charger for YRB02-X rechargeable battery pack, for use in safe area only (MI-PN YRB02-LD) SKU: YRB02-LD $349.00
  • Hazardous area power supply, 100-240V, USA (MI-PN YPS02-XUR) SKU: YPS02-XUR $2,300.00
Lead Time

This Minebea Intec Signum SIWXSBBP Series scale has a lead time of up to 6 weeks.

Overview
  • FM approved for IS CL I, II, III; DIV 1; GP A, B, C, D, E, F, G and T4
  • IP65
  • Application Level 3
    • 14 segment backlit LCD with application symbols
    • 17 keys
    • Weighing and weight unit toggle
    • Averaging, counting, totalizing, checkweighing
    • Real time clock
    • SQ min notification
    • 100 product data memory
    • 4 ID codes
  • RS232 serial port standard
  • Monolithic weighing system
  • Stainless steel weighing pan
  • 300 kg overload protection
  • Built-in calibration weight
  • Previously known as SIWXSBBP-3-6-H-A11-E7
  • Requires YPS02-XUR for hazardous area connection or YPS02-ZKR for safe area connection (purchased separately)

This outstanding, reliable product range offers extraordinary safety for the most stringent of requirements. Features a user-friendly and intuitive operating concept. The Signum EX Series has extensive overload protection of up to 300 kg and high resistance to external forces such as shock and vibration making it ideal for use in industrial environments.

Capacity 6.1 kg
Readability 0.01 g
Repeatability 0.01 g
Linearity 0.02 g
Platform Stainless steel, 180 mm x 180 mm (7.1" x 7.1")
Material Housing Base Frame Painted aluminum
Protection Rating IP65
Power Supply (available separately)

Via external power supply connection via 14-pin round socket

  • Within hazardous area: PN YPS02-XUR
  • Outside hazardous area: PN YPS02-ZKR

Via external battery: PN YRB02-X (battery charger: PN YRB02-LD)
Application Level

Level 3:

  • 14-segment backlit LCD with application symbols
  • 17 keys
  • Weighing and weight unit toggle
  • Averaging (animal weighing)
  • Counting
  • Totalizing
  • Checkweighing
  • Real time clock / calendar
  • SQ min notification
  • 100 product data memory
  • 4 ID codes (40 characters)
