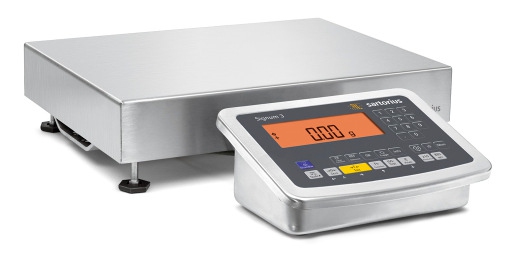

Minebea Intec SIWAEDG-3-35-S Signum Advanced Extend Scale, 35 kg x 0.5 g

Item #SIWAEDG-3-35-S

Be the first to review this product

10%off

Availability: In stock

List Price: $3,680.00

Now: $3,312.00

You Save $368.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $65.00
Accessories
  • Post mount assembly for 12" x 12" platforms, Signum SIWAEDG, 19" high (MI-PN YDH02CWSUS) (PN YDH02CWSUS) SKU: YDH02CWSUS $337.00
Lead Time
This Minebea Intec Signum SIWAEDG Series scale is built-to-order and has an approximate lead time of 6 weeks.
Overview

  • Application Level 3


    • 14 segment backlit LCD with application symbols

    • 17 keys

    • Weighing and weight unit toggle

    • Averaging, counting, totalizing, checkweighing

    • Real time clock

    • SQ min notification

    • 100 product data memory

    • 4 ID codes


  • IP65

  • Framed zinc plated, load plate AISI 304 stainless steel

  • RS232 serial port standard

  • Strain-gauge weighing system with temperature compensated load cell

  • 300 kg overload protection

  • Options are not available for SIWAEDG Series

Minebea Intec SIWAEDG-3-35-S Signum Advanced Extend Scale, 35 kg x 0.5 g

Details

Capacity 35 kg
Readability 0.5 g
Repeatability 1 g
Linearity 1.5 g
Platform Stainless steel, 400 mm x 300 mm (15.75" x 11.8")
Material Housing Base Frame Frame zinc plated, load plate AISI 304 stainless steel
Protection Rating IP65
Power Supply 100-240 VAC (-15%/+10%), 50-60 Hz, up to 17W 23VA
Application Level

Level 3:

  • 14-segment backlit LCD with application symbols
  • 17 keys
  • Weighing and weight unit toggle
  • Averaging (animal weighing)
  • Counting
  • Totalizing
  • Checkweighing
  • Real time clock / calendar
  • SQ min notification
  • 100 product data memory
  • 4 ID codes (40 characters)
