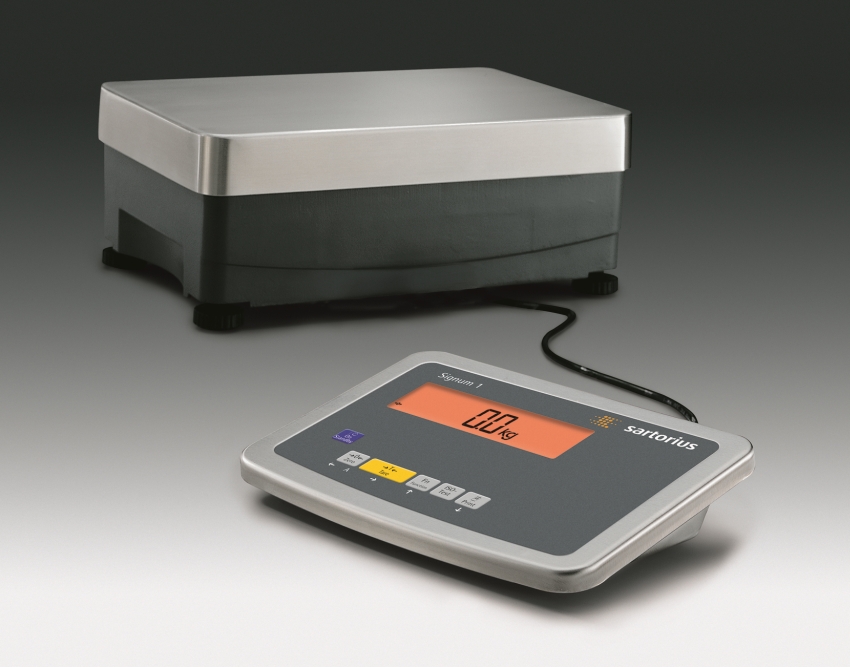

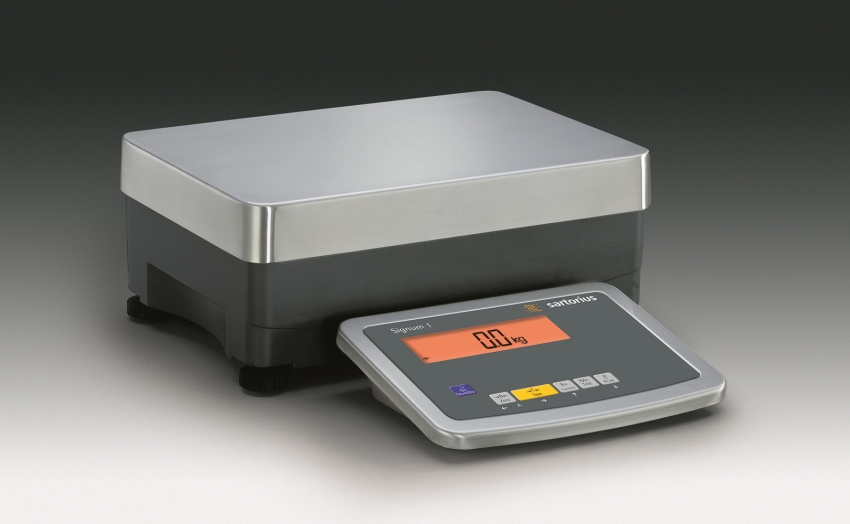

Minebea Intec SIWADCP-V40 Preconfigured Signum Advanced Scale, 7 kg x 0.1 g

Item #SIWADCP-V40

Be the first to review this product

13%off

Availability: In stock

List Price: $2,461.00

Now: $2,140.00

You Save $321.00
Free Shipping
on this product
Calibration Method

Calibration ensures Regulatory and Audit Compliance

  • No Calibration
  • ISO 9000 Calibration Certificate - Bench - $65.00
Accessories
  • Option L9 - Internal rechargeable battery pack (MI-PN SIGNUM-L9) (PN SIGNUM-L9) SKU: SIGNUM-L9 $492.00
  • Bar code scanner with PS2 connecting cable (MI-PN MI-YBR05PS2) (PN MI-YBR05PS2) SKU: MI-YBR05PS2 $1,117.00
  • Connecting cable from RS232 to USB-connector, 2 m (MI-PN MI-YCC01-USBM2) (PN MI-YCC01-USBM2) SKU: MI-YCC01-USBM2 $277.00
  • Adapter plate for later installation of a UniCOM interface, for DCP and EDG models (MI-PN YAS01SW-CON) (PN YAS01SW-CON) SKU: YAS01SW-CON $67.00
  • Dust covers for Midrics and Signum indicator, 2 units (MI-PN YDC01SW) (PN YDC01SW) SKU: YDC01SW $98.00
  • UniCOM - Interface module Profibus DP, for DCP and EDG models (MI-PN YDO01SW-DP) (PN YDO01SW-DP) SKU: YDO01SW-DP $1,667.00
  • UniCOM - Interface module digital I/O, 5 control outputs, for DCP and EDG models (MI-PN YDO01SW-DIO) (PN YDO01SW-DIO) SKU: YDO01SW-DIO $1,115.00
  • UniCOM - Interface module Ethernet TCP/IP, for DCP and EDG models (MI-PN YDO01SW-ETH) (PN YDO01SW-ETH) SKU: YDO01SW-ETH $1,115.00
  • UniCOM - Interface module analog out, 0/4-20 mA, 0/10V, for DCP and EDG models (MI-PN YDO01SW-AO) (PN YDO01SW-AO) SKU: YDO01SW-AO $1,115.00
  • UniCOM - Interface module RS485/422, for DCP and EDG models (MI-PN YDO01SW-485/422) (PN YDO01SW-485/422) SKU: YDO01SW-485/422 $468.00
  • UniCOM - Interface module RS232, for DCP and EDG models (MI-PN YDO01SW-232) (PN YDO01SW-232) SKU: YDO01SW-232 $468.00
  • Option X1 - Disconnectable plug-in between indicator/platform (MI-PN SIGNUM-X1) (PN SIGNUM-X1) SKU: SIGNUM-X1 $183.00
  • Option B1 - UniCOM Profibus DP module, 9-pin D-SUB female connector (MI-PN SIGNUM-B1) (PN SIGNUM-B1) SKU: SIGNUM-B1 $1,182.00
  • Option L8 - 24 V power supply (MI-PN SIGNUM-L8) (PN SIGNUM-L8) SKU: SIGNUM-L8 $134.00
  • Option A9 - UniCOM analog current output, 0-20 mA, 4-20 mA, 1-10V, 16-bit (MI-PN SIGNUM-A9) (PN SIGNUM-A9) SKU: SIGNUM-A9 $761.00
  • Option A5 - UniCOM digital 5 input / 5 output opto isolated (MI-PN SIGNUM-A5) (PN SIGNUM-A5) SKU: SIGNUM-A5 $761.00
  • Option A3 - UniCOM RS485 interface (MI-PN SIGNUM-A3) (PN SIGNUM-A3) SKU: SIGNUM-A3 $297.00
  • Option A2 - UniCOM RS422 interface (MI-PN SIGNUM-A2) (PN SIGNUM-A2) SKU: SIGNUM-A2 $297.00
  • Option A1 - UniCOM RS232 interface (MI-PN SIGNUM-A1) (PN SIGNUM-A1) SKU: SIGNUM-A1 $297.00
  • IP65 upgrade kit for cable connectors, D-Sub 25 (MI-PN YAS01CISL) (PN YAS01CISL) SKU: YAS01CISL $342.00
  • 24 volt module for Midrics, Signum indicator (MI-PN YAS02MI) (PN YAS02MI) SKU: YAS02MI $283.00
  • Option I65 - IP protection IP65 (hose-proof and dust-tight) for DBP and BBP models only (MI-PN SIGNUM-I65) (PN SIGNUM-I65) SKU: SIGNUM-I65 $449.00
  • Option Z3 - Test report/certificate (MI-PN SIGNUM-Z3) (PN SIGNUM-Z3) SKU: SIGNUM-Z3 $286.00
  • Option B9 - UniCOM internal Ethernet interface module, 10/100 Mbit TCP/IP (MI-PN SIGNUM-B9) (PN SIGNUM-B9) SKU: SIGNUM-B9 $761.00
Overview

  • Application Level 1

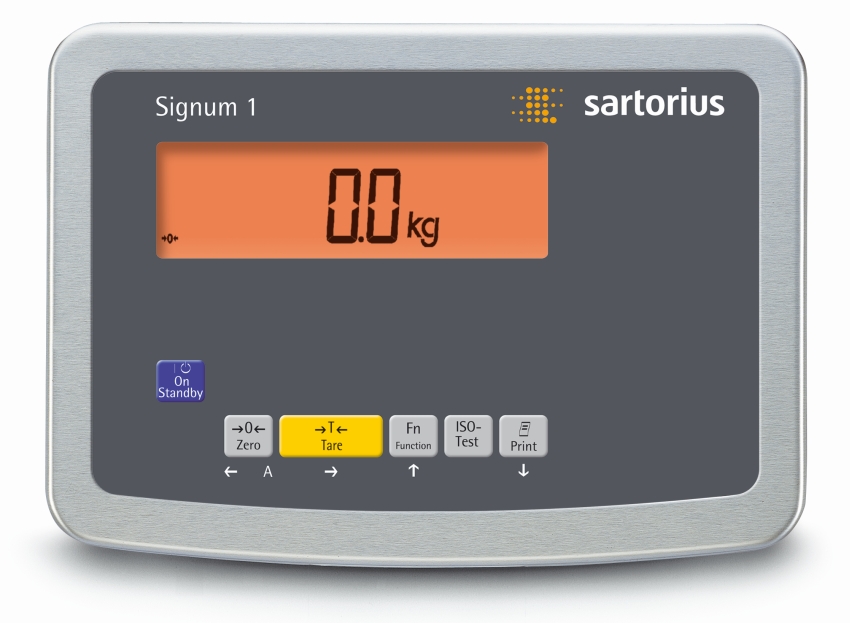

    • 14 segment backlit LCD

    • 6 keys

    • Weighing and unit weight toggle


  • IP43

  • RS232 serial port standard

  • Strain-gauge weighing system

  • 300 kg overload protection

Minebea Intec SIWADCP-V40 Preconfigured Signum Advanced Scale, 7 kg x 0.1 g

Details

The Signum Advanced SIWADCP Series features a strain-gauge weighing system and standard IP43 protection. The combination of high resolution and 300 kg overload protection make it suitable for both laboratory and industrial environments.

All Signum® scales come standard with an RS232 serial port and a wide variety of secondary communication options such as DeviceNet, Ethernet TCP/IP, 4-20 mA, PROFIBUS, and RS485.

Capacity 7 kg
Readability 0.1 g
Repeatability 0.2 g
Linearity 0.3 g
Platform Stainless steel, 350 mm x 240 mm (13.7" x 9.5")
Material Housing Base Frame Painted aluminum
Protection Rating IP43
Power Supply 100-240 VAC (-15%/+10%), 50-60 Hz, up to 17W 23VA
Application Level

Level 1:

  • 14-segment backlit LCD
  • 6 keys
  • Weighing
  • Weight unit toggle
