LaserLight3 full color 5-inch messaging remote display (RLW-PN 214825)

Name: Certified Scale
Address: N57 W13640 Carmen Avenue, Menomonee Falls, WI, 53051
Telephone: 1-800-455-9107

Item #214825

Be the first to review this product

Availability: In stock

$2,110.00

Qty:

Accessories

Pole mount kit for LaserLight3 Remote Display (RLW-PN 177865) (PN 177865) SKU: 177865 $90.00
Offset kit for LaserLight3 Remote Display (requires Pole Mount kit, PN 177865) (RLW-PN 178790) (PN 178790) SKU: 178790 $82.00
Sunshade, 8", for LaserLight3 Remote Display (RLW-PN 208807) (PN 208807) SKU: 208807 $135.00
Wireless LAN, Wi-Fi interface 8.02.11 a/b for LaserLight3 Remote Display, FACTORY INSTALLED; valid in conjunction with new LaserLight3 purchase only (RLW-PN 209118) (PN 209118) SKU: 209118 $250.00
ConnexLink Transceiver Kit, for LaserLight3 Remote Display (RLW-PN 175052) (PN 175052) SKU: 175052 $835.00

Overview

Vibrant 128- by 32-pixel LED color display with non-glare lens; high-intensity digits up to 5 inches tall

Color commands change background and foreground text

Auto Learn identifies and interprets the source weight data string for maximum compatibility with a wide range of indicators

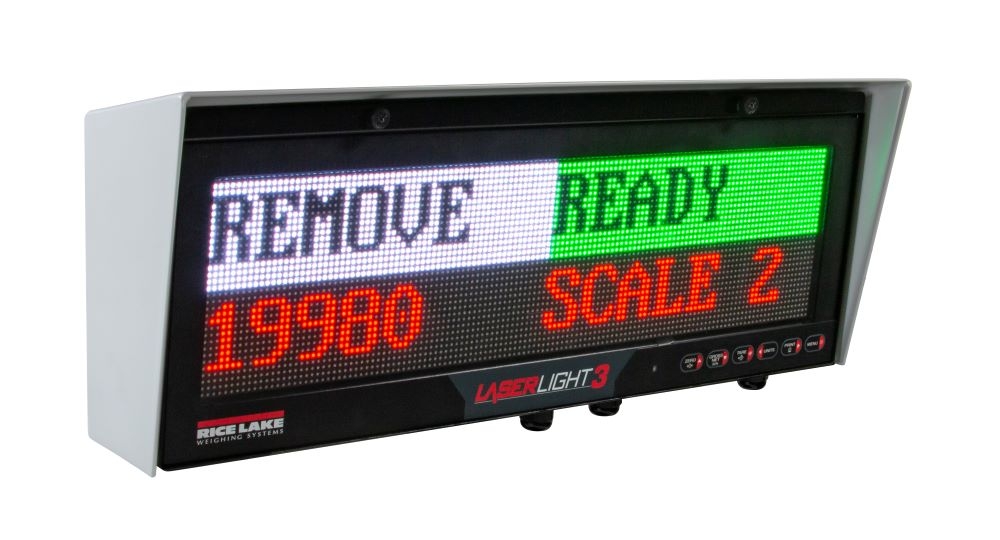

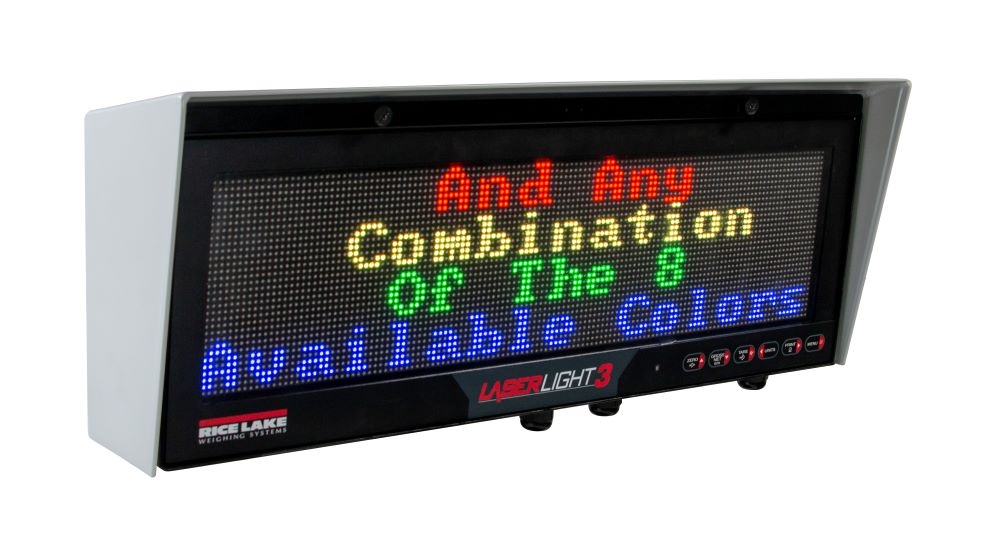

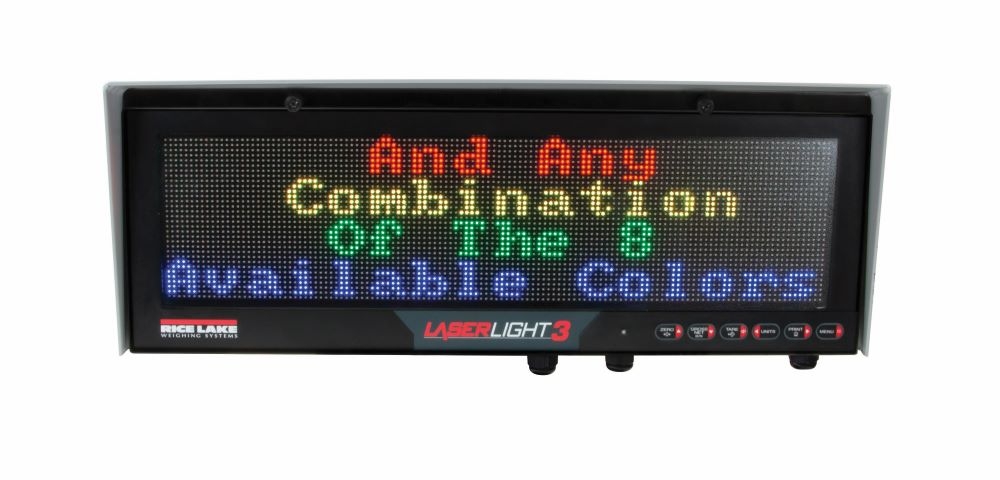

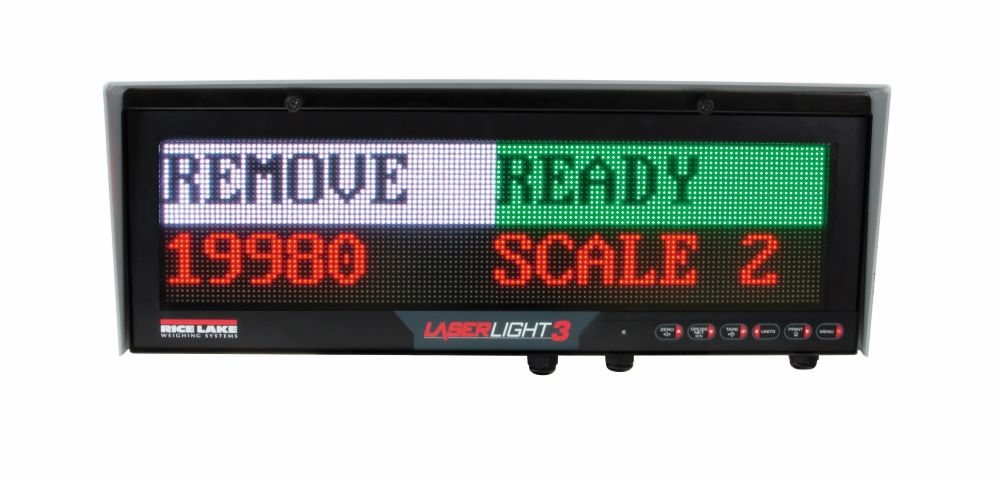

Versatile layout choices include mirror mode, 1-line, 2-line and quadrant format

Dynamic messaging views can scroll, slide or flash

Display stop/go light symbols/arrows with digits up to 4 inches tall

Software selectable time/date when weight is at zero

Integrated weathertight keypad for sending configurable scale commands to the indicator

Durable IP66 enclosure with Gore-Tex® breather vent to inhibit internal moisture

RS-232, RS-422, 20 mA and Ethernet TCP/IP

Mounting options include VESA, flange and pole configurations

LaserLight3 full color 5-inch messaging remote display (RLW-PN 214825)

Specifications
Reviews

Details

Clearly display weight, symbols and messages with the LaserLight3 remote display. The vibrant LED display has adjustable intensity and a non-glare lens so its 4- or 5-inch-tall messages are always easy to read.

Display	Bright, outdoor color LED lamps 128 x 32-pixel, 4 mm pitch Decimal or comma indication Weight display with units and mode Message display 1, 2 or 4 lines Stop/go and directional arrow
Maximum Viewing Distance	4" character: 100 feet (30 m) 5" character: 150 feet (46 m)
Viewing Angle	160°
Power	AC voltages: 100 to 240 VAC; 50/60Hz 120 watt (120 VAC) 95 watt (12 VDC)
Output Interface	Ethernet TCP/IP, independently configurable echo port
Input Data Format	Baud rate: 1200, 2400, 4800, 9600, 19,200, 28,800, 38,400, 57,600, and 115,200 self-learning or configurable
Update	Continuous or out-of-motion modes Message interrupt mode
Digital I/O	Four I/O read or set 5V logic
Communication Ports	Ethernet TCP/IP, RS-232, RS-485, 20 mA passive loop Optional ConnexLink wireless radio, WLan interface 802.11 a/b - Factory installed; available separately and must be specified at time of order
Character Format	7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits
Keys/Buttons	Integrated keyboard
Time	Software enable, 12- or 24-hour format
Date	Software enable, US or ISO format
Dimensions (L x W x H)	25" x 10" x 6"
Operating Temperature Range	-40°F to 120°F (-40°C to 49°C)
Rating/Material	IP66 weathertight Mild steel, powder-coated
Weight	Without wall mount: 14.19 lb (7.81 kg) With wall mount: 20.48 lb (10.66 kg) With sunshade: 29.79 lb (14.88 kg)
