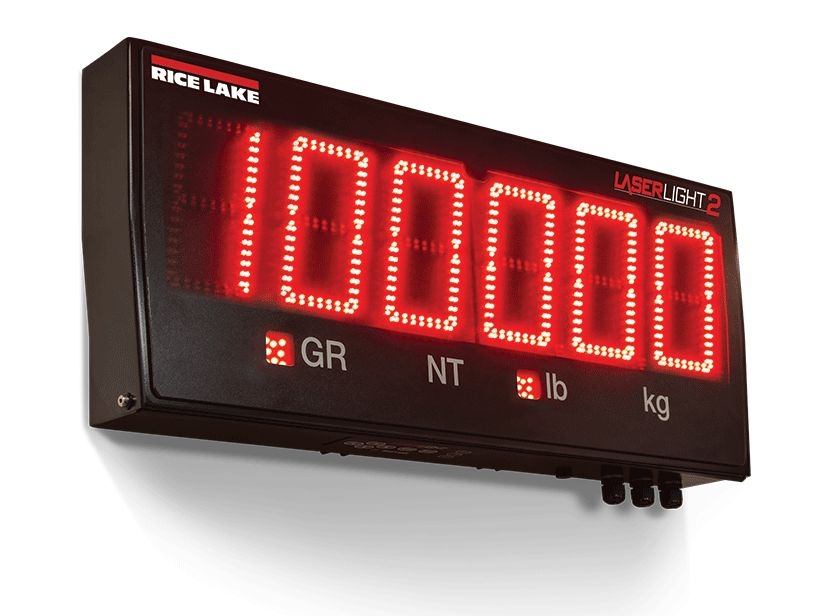

LaserLight2 Scoreboard, 6" with ScaleCore RF and tilt bracket (RLW-PN 178006)

Item #178006

Be the first to review this product

Availability: In stock

$3,005.00

Qty:

Accessories

Antenna extension kit, for TranSend, MSI-8000HD, MSI Wireless Scoreboards (RLW-PN 162178) (PN 162178) SKU: 162178 $490.00
Antenna kit, long range Omni-directional 9 dBi with 3 m coax cable (RLW-PN 139309) (PN 139309) SKU: 139309 $510.00
Antenna kit, 9 dBi corner reflector with 3 m coax (RLW-PN 139310) (PN 139310) SKU: 139310 $505.00
Antenna kit, 12 dBi corner reflector with 3 m coax (RLW-PN 139311) (PN 139311) SKU: 139311 $535.00
Antenna kit, vehicle mount, 5 dBi with 5 m coax omni-directional (RLW-PN 139313) (PN 139313) SKU: 139313 $160.00
Antenna extension kit, 20 ft (RLW-PN 197013) (PN 197013) SKU: 197013 $520.00

Overview

Integrated data repeater

Six high-intensity red digits (double-row discrete LED)

Auto Learn mode of communication protocols

Hold displayed weight (demand input)

Software selectable standstill mode for no updates while in motion

Durable weathertight IP66 enclosure

Adjustable daylight/night intensity

Non-glare contrast filtered lens

Mirror (reverse image) feature

RS-232, 20 mA and RS-485 communications

Auto sensing 115/230 VAC power supply

PEMs for VESA flat-wall mount or side-mounting flange

Polyethylene breather vent inhibits internal moisture buildup

LaserLight2 Scoreboard, 6" with ScaleCore RF and tilt bracket (RLW-PN 178006)

Specifications
Reviews

Details

Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility is dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible.

Display	6-digit, 7-segment discrete oval precision optical performance red LED lamps, 6" Contrast enhanced optical filtering lens 1- or 2- place decimal or comma indication 4 annunciators for GR, NT, lb, kg
Maximum Viewing Distance	300 ft (100 m)
Input Interface	RS-232, RS-485, 20 mA current loop (active or passive, switch selectable)
Output Interface	Independently configurable echo out port, RS-232
Input Data Format	Baud rate: 1200, 2400, 4800, 9600 and 19,200 self-learning or software selectable
Character Format	7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits, self-learning or software selectable
Update	Continuous or out-of-motion only; software selectable
Power	AC/DC power supply, 85-265 VAC, 47-440 Hz/130-300 VDC
Power Consumption	27 watt
Radio Link	Direct sequence spread spectrum at 2.4 GHz
Radio Link Effective Range	Typically 300 ft (150 m) with standard antennas (optional antennas available separately for longer range)
Standard Antenna	1/2 wave 2 dBi, articulated
Time	Software enable/disable, 12- or 24- hour format
Date	Software enable/disable, US or ISO format
Rating/Material	IP66 weather-tight, mild steel, black powder coated
Dimensions	30.63" L x 12.77"H
Weight	25 lb (11 kg)
Operating Temperature Range	-40°F to 120°F (-40°C to 49°C)
